Is the Briggs & Stratton Fortress 60kW the Right Standby Generator for Your Business?

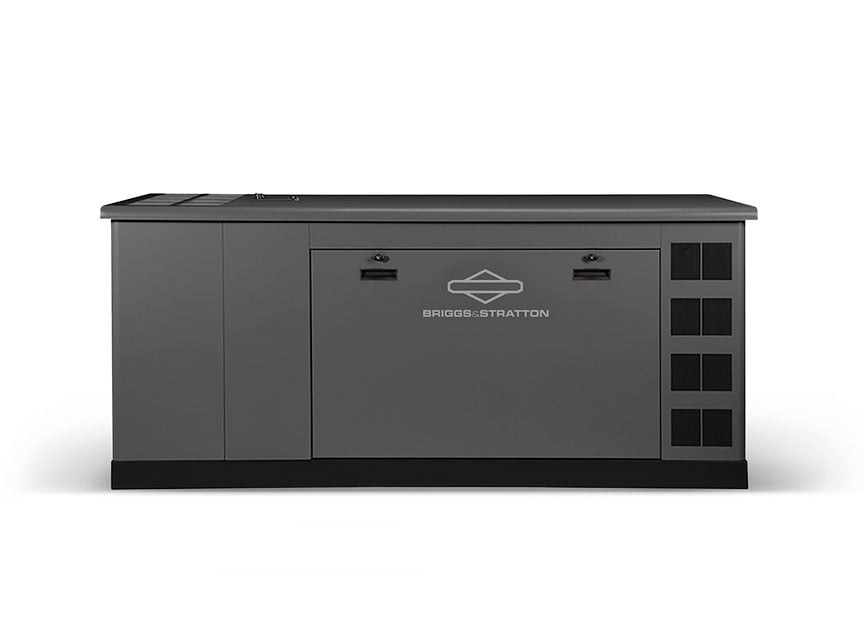

The Briggs & Stratton Fortress 60kW (model 076860) is a liquid-cooled commercial standby generator for 120/240V single-phase service. It's rated 60kW on liquid propane and 60kW on natural gas (250 and 229 amps), runs on a 5,700cc engine and starts automatically when utility power fails. Briggs & Stratton assembles and engineers it in the USA with domestic and foreign parts.

The 60kW is the largest Fortress, designed for single-phase businesses with heavy loads: larger restaurants and retail, medical and dental offices, light industrial shops and agricultural buildings.

Mighty Generators supplies the Fortress 60kW by quote. It ships freight direct from the manufacturer, typically in 5 to 6 weeks, so you can have the pad, gas line and transfer switch ready when it arrives.

Fortress 60kW at a Glance

  • Standby rating: 60kW LP / 60kW NG
  • Electrical: 120/240V single-phase, 250 A LP / 229 A NG, 250 A circuit breaker
  • Engine: 5,700cc, liquid cooled
  • Fuel: liquid propane or natural gas
  • Normal operating sound: 70 dB (Briggs & Stratton rating)
  • Size and weight: 98 x 39.4 x 43 in (L x W x H), 2,020 lb
  • Enclosure: aluminum, powder coated, with a block heater as standard
  • Rated to UL 2200 and CSA C22.2 No.100-14
  • Warranty: 6-year limited, parts, labor and travel (Briggs & Stratton)

Briggs & Stratton Fortress 60kW Features and Performance

Engine and Fuel

The 5,700cc liquid-cooled engine runs on liquid propane or natural gas. Briggs rates the same 60kW on either fuel, with 250 amps on propane and 229 amps on natural gas. At 50% load it uses about 644,000 BTU per hour on propane or 561,000 BTU per hour on natural gas. A block heater is standard, so the engine is warm and ready to take load in cold weather.

Monitoring and Control

The Briggs & Stratton controller manages automatic start and transfer. EnergyTrak remote monitoring adds an app that shows generator status from anywhere and lets your dealer troubleshoot and diagnose issues remotely (subscription required). The Fortress also works with Symphony Choice power management, which distributes power to selected loads automatically so the generator doesn't overload and shut down; the transfer switch and modules are sold separately.

Enclosure

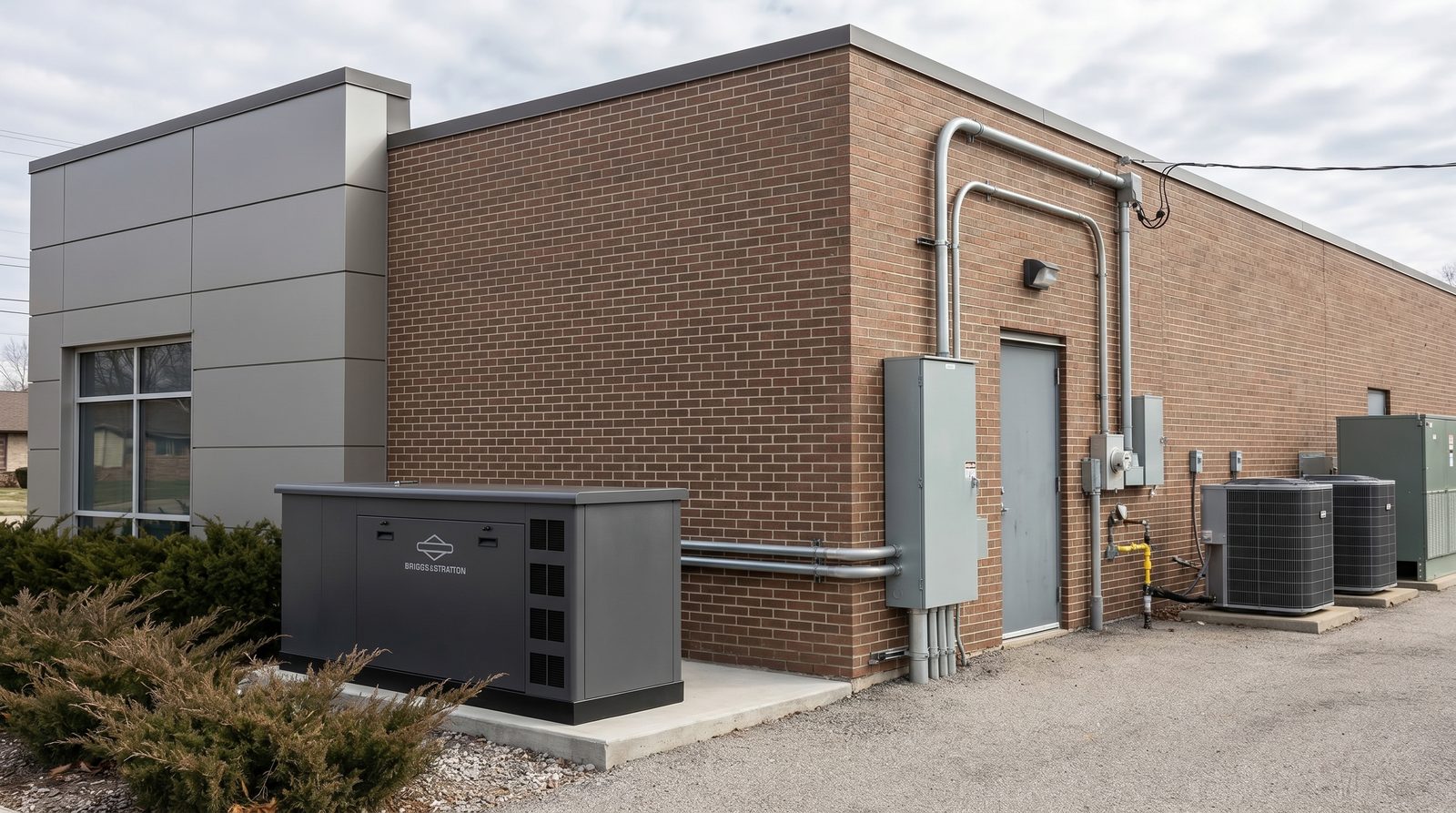

The Fortress 60kW sits in an aluminum enclosure with an advanced powder-coat finish that Briggs designs to resist chips, abrasion and corrosion. Briggs lists its normal operating sound at 70 dB. It can be installed as close as 18 inches from the building where local codes allow, which helps on tight commercial lots.

Where the Fortress 60kW Fits

Start with the electrical service. The Fortress line is 120/240V single-phase. If your building is on three-phase service, the Cummins RS Quiet Connect generators are the better match. Within single-phase, size from a load calculation that includes motor starting and HVAC, not from square footage, and our team can help match the result to the right Fortress size.

Fortress 60kW vs the Rest of the Fortress Line

Model Rating LP / NG Running amps LP / NG Breaker Engine Weight
Fortress 30kW 30 / 30 kW 125 / 125 A 125 A 1,600 cc 1,000 lb
Fortress 35kW 35 / 35 kW 145 / 145 A 150 A 4,300 cc 1,541 lb
Fortress 48kW 48 / 45 kW 160 / 149 A 200 A 4,300 cc 1,634 lb
Fortress 60kW 60 / 60 kW 250 / 229 A 250 A 5,700 cc 2,020 lb

Planning the Fortress 60kW Installation

  • Transfer switch: required and quoted separately, sized to your service entrance.
  • Delivery and pad: 2,020 lb assembled, 98 x 39.4 x 43 inches, shipped by freight.
  • Fuel supply: give your gas utility or propane supplier the 561,000 BTU/hr (NG) or 644,000 BTU/hr (LP) 50% load figure and ask them to confirm capacity at full load.
  • Code and placement: install to local code and NFPA 37, keep exhaust away from windows, doors, vents and crawl spaces, and keep carbon monoxide detectors installed and maintained in the building.

Briggs & Stratton Fortress 60kW Specifications

Specification Fortress 60kW (076860)
Manufacturer Briggs & Stratton
Product line Fortress commercial standby
Model number (SKU) 076860
Standby rating, liquid propane 60 kW
Standby rating, natural gas 60 kW
Running amps, LP / NG 250 A / 229 A
Voltage 120/240V
Phase Single-phase
Circuit breaker 250 A
Engine displacement 5,700 cc
Cooling Liquid cooled
Fuel Liquid propane or natural gas
Fuel consumption at 50% load 644,000 BTU/hr LP; 561,000 BTU/hr NG
Normal operating sound 70 dB (Briggs & Stratton rating)
Dimensions (L x W x H) 98 x 39.4 x 43 in
Assembled weight 2,020 lb
Enclosure Aluminum, powder coated
Engine heating Block heater, standard
Controller Briggs & Stratton controller
Remote monitoring EnergyTrak app (subscription required)
Rating standards UL 2200; CSA C22.2 No.100-14
Limited warranty 6 years, parts, labor and travel

Standard Equipment Listed by Briggs & Stratton

  • Block heater
  • Briggs & Stratton controller
  • Aluminum enclosure

Confirm the final configuration and any accessories on your written quote.

Frequently Asked Questions About the Briggs & Stratton Fortress 60kW

What electrical service does the Briggs & Stratton Fortress 60kW need?

The Fortress 60kW (model 076860) is a 120/240V single-phase generator with a 250 A circuit breaker. It suits businesses, farms and large properties on single-phase service. If your building has three-phase service, look at the Cummins RS Quiet Connect line instead, which is built for 120/208V three-phase.

How much power does the Fortress 60kW make on natural gas versus propane?

Briggs & Stratton rates the Fortress 60kW at 60kW and 250 amps on liquid propane, and 60kW and 229 amps on natural gas. At 50% load it burns about 644,000 BTU per hour on propane or 561,000 BTU per hour on natural gas, which your fuel supplier will use to size the supply.

How loud is the Briggs & Stratton Fortress 60kW?

Briggs & Stratton lists a normal operating sound level of 70 dB for the Fortress 60kW. It's housed in an aluminum enclosure with a powder-coat finish, and Briggs & Stratton describes the liquid-cooled Fortress as commercial-grade.

What warranty comes with the Briggs & Stratton Fortress 60kW?

Briggs & Stratton covers the Fortress 60kW with a 6-year limited warranty that includes parts, labor and travel for the full length of the warranty. Complete terms are in the operator's manual and on briggsandstratton.com.

What should I plan for before installing the Fortress 60kW?

Plan for a 2,020 lb unit measuring 98 x 39.4 x 43 inches, plus a transfer switch, which is quoted separately. Briggs allows it to be installed as close as 18 inches from the building where local codes permit. Installation has to follow local code and NFPA 37, including keeping exhaust away from windows, doors and air intakes. It ships freight direct from the manufacturer with a typical 5 to 6 week lead time, so request a quote with your service size and load list.

Warranty and Support

Briggs & Stratton covers the Fortress 60kW with a 6-year limited warranty that includes parts, labor and travel for the full length of the warranty; see the operator's manual or briggsandstratton.com for complete terms. Warranty coverage and service come from Briggs & Stratton and its dealer network. Mighty Generators is an authorized Briggs & Stratton dealer: we'll check the size against your load, quote the transfer switch, and coordinate freight to your site.
