Overview

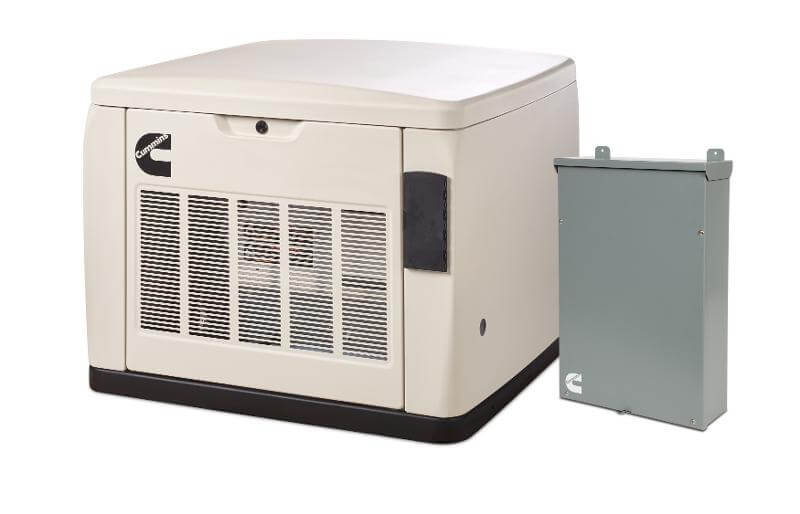

Take Control of Your Power: The Cummins 20kW Home Standby Generator
Are you tired of power outages disrupting your life? Concerned about the reliability of the power grid? The Cummins 20kW Home Standby Generator with its 200-Amp Automatic Transfer Switch is the ultimate solution for homeowners seeking power independence and peace of mind.
Key Features and Benefits
-
Unmatched Power: Effortlessly run your entire home – including your air conditioner and other essential appliances – even during grid failures.
-
Intelligent Load Management: (Optional) Optimizes power distribution for maximum efficiency, allowing you to run more appliances at once.
-
Seamless Integration: The automatic transfer switch instantly shifts your home's power from the grid to the generator, ensuring uninterrupted comfort.
-
Remote Control: Monitor and manage your generator's status from anywhere via the Cloud Connect Smartphone App.
-
Discreet and Quiet: Installs close to your home and operates at whisper-quiet levels for minimal disruption.
-
All-Weather Resilience: Functions flawlessly down to 0 degrees and conquers even the harshest winters with optional cold weather kits.
Never Be in the Dark Again
Say goodbye to the uncertainty of power outages. With the Cummins 20kW Home Standby Generator, you'll enjoy uninterrupted power, 24/7 – no matter what the grid throws your way. Protect your home, your family, and your comfort with this smart power solution. Get your Cummins Quiet Connect 20kW Standby Generator today!
NOTE: Does not include
Features
Cummins 20kW RS20AC Home Standby Generator Features:
Robust Design
The generator is designed to operate in cold weather with performance down to 0 °F (-
18 °C) out of the box. The extreme cold weather models can perform down to -40 °F (-40 °C) out of the box. It is tested and certified per the latest EPA, UL, and CSA standards. The generator meets NFPA 37 which allows it to be installed 18 inches from a building. It has powerful motor starting ability and can easily start and run a5-ton A/C¹ under full pre-load.
NOTE: The Extreme Weather Model is the Cummins RS20ACE.
Intelligent Load Management
The generator can control up to 4 loads and continuously monitors how much
power is required independently for each load. It then controls each load for maximum utilization of generator power by only restoring loads the generator has capacity to run.
Flexible Exercise Modes
Exercise modes can be set for time, date, and frequency that suits the owner. Our patented ‘Crank only’ exercise mode allows the generator to crank the engine and run diagnostics without starting the engine. This reduces wear and tear on the engine, fuel costs, and further reduces the sound of an already quiet generator.
Remote Monitoring
Remote monitoring is built into every generator. Using a computer, tablet, or smart
phone, an operator can monitor, change exercise modes, and manually run the generator remotely.
Specifications
Cummins 20kW Home Standby Generator Specifications
Engine
• Natural gas/propane
• Engine air cleaner
• Engine oil (Synthetic)
• Oil drain extension tube
• Low oil pressure shutdown
Fuel System
• Single fuel – natural gas or propane vapor, field selectable
(Set to Natural gas from factory)
Alternator
• 60 Hz, 1 phase, < 5% THD (total harmonic distortion)
• Long life electrographic DC brushes
• Slip ring heater
Control
• Display language – English
• Under hood built in display
Electrical
• Single 100A circuit breaker, UL certified
(On all models)
• Battery charging alternator
• Battery charger – 4 Amps
Cooling
• Single direct drive blower
Enclosure
• Aluminum exterior, galvanized steel interior
• Evaluated to withstand 180 mph wind loads in accordance
with ASCE7-10
Code Compliance
• UL 2200
• CSA 22.2 and B149.1
• EPA emissions
• NFPA 37 – 18 inches
Warranty
Base: 5 years / 2000 hours limited warranty that covers travel and labor for two years and parts for a full five years.
Extended warranties available
Generator Set performance
Voltage regulation, no load to full load: ±1.25%
Steady state voltage variation: ±1.25%
Frequency regulation: Isochronous
Motor starting kVA (30% voltage dip): 40 for RS20A/AC,
34 for RS17A, and 26 for RS13A
Steady state freq. variation: ±1.25% (±1.5% @ No load)
Operating temperature: 122 °F (50 °C) to -40 °F (-40 °C)
See Accessories section for details on kits
Engine Specifications
Model: QSJ999G
Design: Naturally aspirated, V twin air cooled
Bore: 3.54 in (89.9 mm)
Stroke: 3.09 in (78.5 mm)
Displacement: 60.96 inch3 (999 CC)
Cylinder block: Aluminum
Battery capacity: Group 51R, 450 CCA at ambient
temperature of 32 °F (0 °C)
Starting voltage: 12 Volt, negative ground
Oil Filter type: Spin-on
Rated speed: 3600 rpm
Fuel Supply Pressure
Minimum - in H2O (kPa):
NG - 3.5 (0.87) / LP - 6.0 (1.49)
Maximum - in H2O (kPa):
NG - 12.0 (3.0) / LP - 12.0 (3.0)
