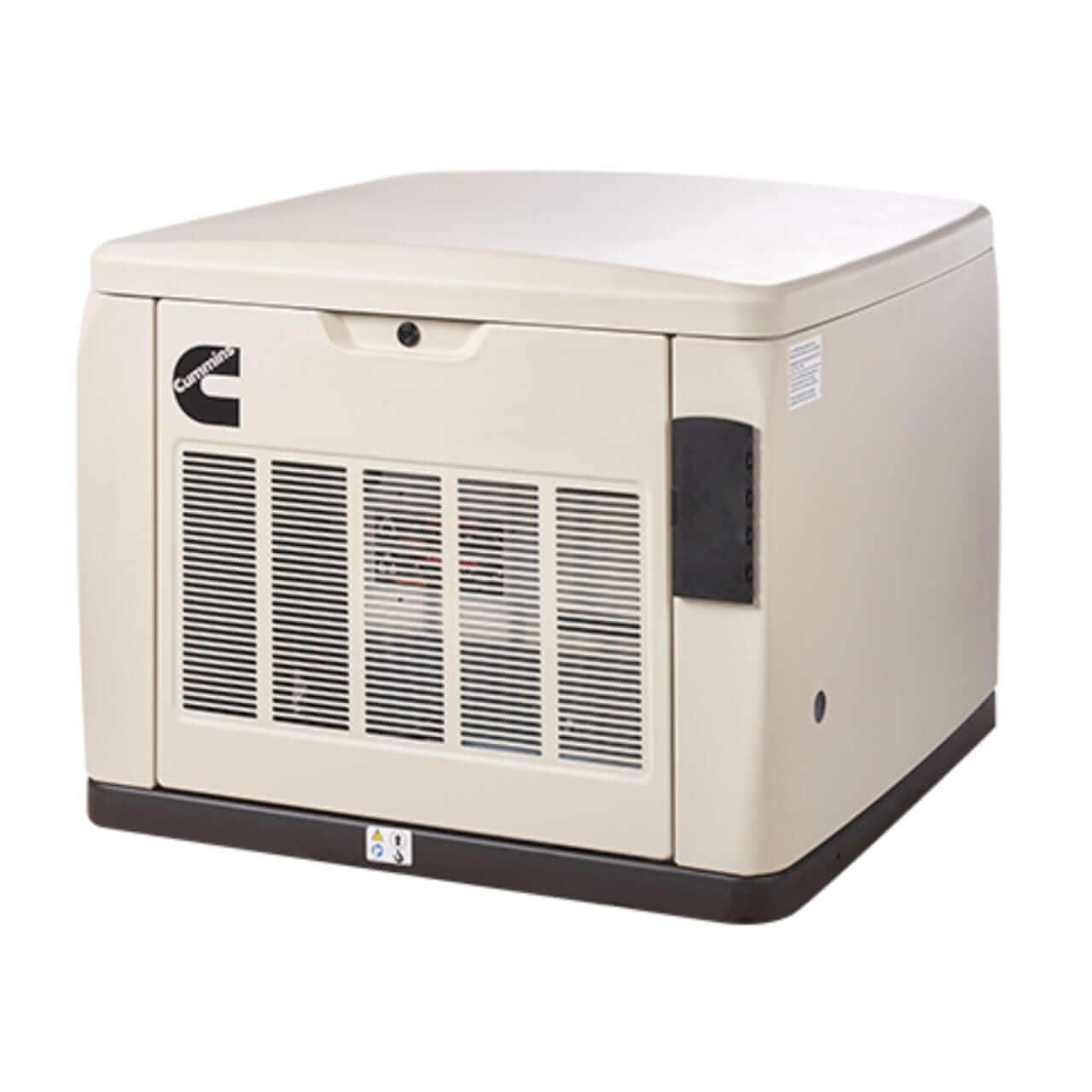

Cummins A061C591 Quiet Connect 13kW Home Standby Generator LP/NG | RS13A
Estimated Shipping times 5 to 6 weeks (Cummins Home Standby)
** Free Upgraded Liftgate Service on all Cummins Home Standby Generators!! ($150.00 Value)
SHIPS FACTORY DIRECT.
Estimated Shipping times 5 to 6 weeks (Cummins Home Standby)
** Free Upgraded Liftgate Service on all Cummins Home Standby Generators!! ($150.00 Value)
SHIPS FACTORY DIRECT.
Overview:
Experience the Cummins RS13A, a visually appealing and whisper-quiet 13 kW home standby generator. This powerful generator boasts seamless automation, especially when paired with the optional transfer switch. It effortlessly powers a 5-ton air conditioning unit even under maximum pre-load conditions. Plus, Cummins stands behind this reliable generator with an impressive 5-year or 2000-hour limited warranty, ensuring peace of mind for your home's power needs. Invest in the Cummins RS13A for uninterrupted home comfort and security.
Robust Design
The generator is designed to operate in cold weather with performance down to 0 °F (-
18 °C) out of the box. The extreme cold weather models can perform down to -40 °F (-40 °C) out of the box. It is tested and certified per the latest EPA, UL, and CSA standards. The generator meets NFPA 37 which allows it to be installed 18 inches from a building. It has powerful motor starting ability and can easily start and run a5-ton A/C¹ under full pre-load.
NOTE: This is not an extreme cold weather model and its operating temperatures are down to O F out of the box.
Intelligent Load Management
The generator can control up to 4 loads and continuously monitors how much
power is required independently for each load. It then controls each load for maximum utilization of generator power by only restoring loads the generator has capacity to run.
Flexible Exercise Modes
Exercise modes can be set for time, date, and frequency that suits the owner. Our patented ‘Crank only’ exercise mode allows the generator to crank the engine and run diagnostics without starting the engine. This reduces wear and tear on the engine, fuel costs, and further reduces the sound of an already quiet generator.
Remote Monitoring
Remote monitoring is built into every generator. Using a computer, tablet, or smart
phone, an operator can monitor, change exercise modes, and manually run the generator remotely.
Product Features
Engine
• Natural gas/propane
• Engine air cleaner
• Engine oil (Synthetic)
• Oil drain extension tube
• Low oil pressure shutdown
Fuel System
• Single fuel – natural gas or propane vapor, field selectable
(Set to Natural gas from factory)
Alternator
• 60 Hz, 1 phase, < 5% THD (total harmonic distortion)
• Long life electrographic DC brushes
• Slip ring heater
Control
• Display language – English
• Under hood built in display
Electrical
• Single 100A circuit breaker, UL certified
(On all models)
• Battery charging alternator
• Battery charger – 4 Amps
Cooling
• Single direct drive blower
Enclosure
• Aluminum exterior, galvanized steel interior
• Evaluated to withstand 180 mph wind loads in accordance
with ASCE7-10
Code Compliance
• UL 2200
• CSA 22.2 and B149.1
• EPA emissions
• NFPA 37 – 18 inches
Warranty
Base: 5 years / 2000 hours
Extended warranties available
Generator Set performance
Voltage regulation, no load to full load: ±1.25%
Steady state voltage variation: ±1.25%
Frequency regulation: Isochronous
Motor starting kVA (30% voltage dip): 40 for RS20A/AC,
34 for RS17A, and 26 for RS13A
Steady state freq. variation: ±1.25% (±1.5% @ No load)
Operating temperature: 122 °F (50 °C) to -40 °F (-40 °C)
See Accessories section for details on kits
Engine Specifications
Model: QSJ999G
Design: Naturally aspirated, V twin air cooled
Bore: 3.54 in (89.9 mm)
Stroke: 3.09 in (78.5 mm)
Displacement: 60.96 inch3 (999 CC)
Cylinder block: Aluminum
Battery capacity: Group 51R, 450 CCA at ambient
temperature of 32 °F (0 °C)
Starting voltage: 12 Volt, negative ground
Oil Filter type: Spin-on
Rated speed: 3600 rpm
Fuel Supply Pressure
Minimum - in H2O (kPa):
NG - 3.5 (0.87) / LP - 6.0 (1.49)
Maximum - in H2O (kPa):
NG - 12.0 (3.0) / LP - 12.0 (3.0)
1. Cummins Onan RA Series Automatic Transfer Switches
2. Requires a Group 51R 450 CCA Battery
3. Generator Pad
4. Extreme weather kit for locations under
