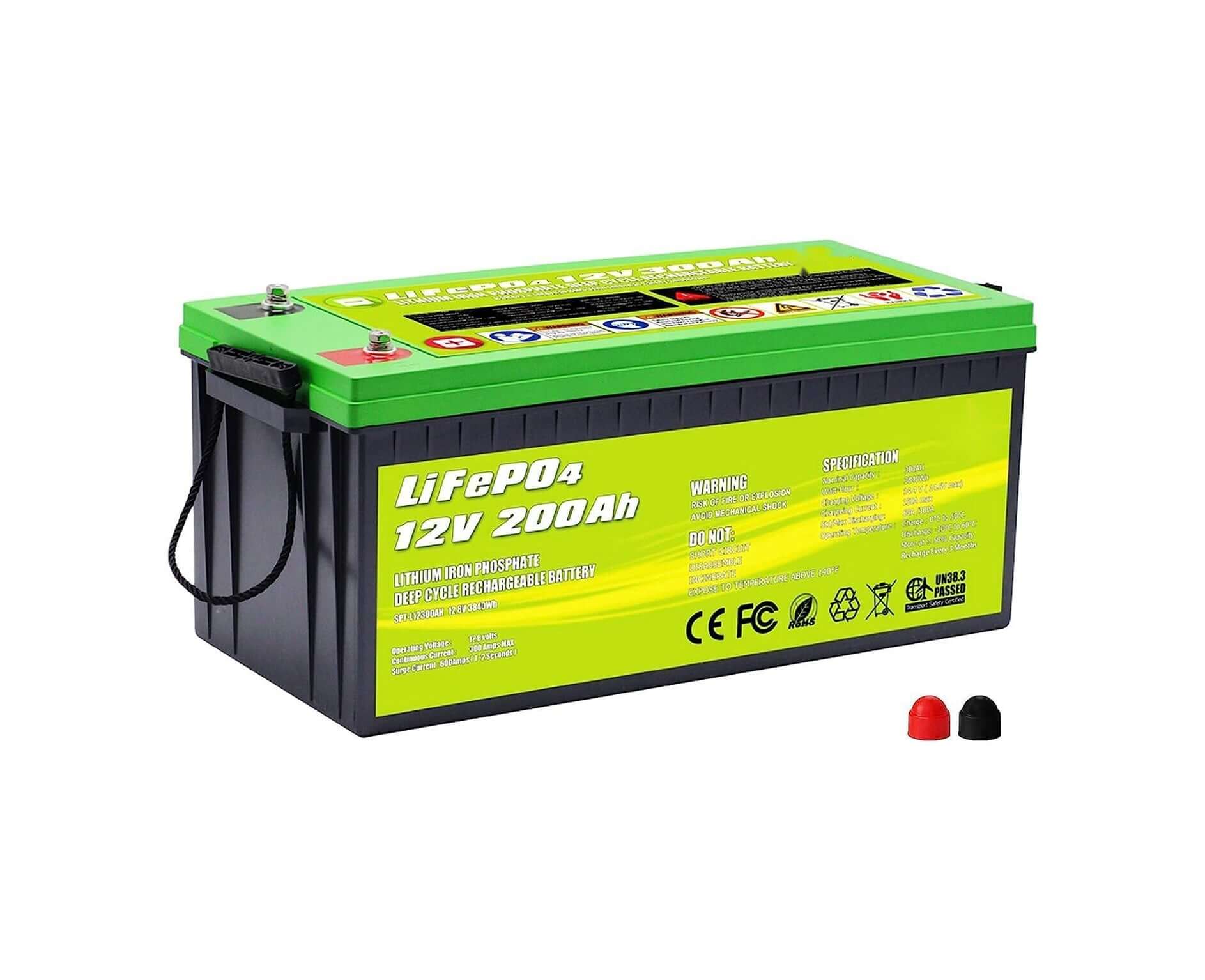

12V 200Ah LiFePO4 Lithium Battery - Lightweight Deep Cycle BMS

12V 200Ah LiFePO4 Deep Cycle Lithium Battery with Advanced BMS Protection

High-performance 12V 200Ah LiFePO4 Deep Cycle Lithium Battery engineered for superior energy storage across solar, RV, marine, and off-grid applications. This lithium iron phosphate battery delivers exceptional efficiency and extended lifespan compared to traditional lead-acid alternatives.

Performance Specifications:

• Superior Discharge Efficiency: Achieves 96%-99% usable capacity versus 40%-50% from lead-acid batteries, maximizing available power for your systems.
• Extended Cycle Life: Delivers over 4000 cycles while maintaining 80% capacity, compared to 300-500 cycles from lead-acid batteries.
• Integrated Smart BMS: Built-in Battery Management System provides overcharge protection, over-discharge protection, short-circuit protection, and temperature monitoring for safe operation.
• Lightweight Construction: At 23.8 lbs, weighs approximately 1/3 less than equivalent lead-acid batteries for easier installation and portability.
• Multiple Applications: Compatible with solar energy systems, RV power, marine electronics, UPS backup systems, golf carts, and off-grid energy storage.
• Expandable Configuration: Connect up to 4 batteries in series or parallel configurations including 2S2P, 3S2P, or 4S2P arrangements for increased capacity or voltage.

Technical Specifications:

• Dimensions: 20.5" x 9.4" x 8.5"
• Weight: 48.9 lbs
• Nominal Capacity: 200Ah
• Continuous Current: 200Amps
• Max Watt-Hour: 2560Wh
• Charge Voltage: 14.4V (Max 14.6V)
• Charge Current: 100A MAX
• Discharge Efficiency: 96~99% @ 0.5C
• Operating Temperature: Charge 0°C~50°C; Discharge -20°C~60°C; Storage at ≥50% Capacity

The 12V 200Ah LiFePO4 Deep Cycle Lithium Battery provides reliable, efficient energy storage with advanced safety features for demanding power applications.
