AIMS 480W Solar Kit 2500W Inverter 24V Complete Off-Grid Power System

AIMS Power 480 Watt Solar Kit with 2500 Watt Power Inverter - Complete Off-Grid Solution

The AIMS Power 480 Watt Solar Kit KITB-250024120-A1 with 2500 Watt Power Inverter 24 VDC provides reliable off-grid power for RVs, cabins, and mobile businesses. This complete solar system powers medium-sized devices including pumps, small motors, tools, freezers, refrigerators, and heaters.

The 2500 watt inverter delivers maximum efficiency with a 30 amp charger at 24VDC, supporting additional solar panel expansion. Tempered glass-covered panels feature UV, water, ozone, fluid, oil, salt, and weather-resistant PV wiring for durability in harsh conditions. Each system includes a comprehensive wiring diagram for straightforward installation.

AIMS Power 480 Watt Solar With 2500 Watt Power Inverter 24 Vdc Kit Off Grid KITB-250024120-A1 Features

• Easy to connect and use
• Works with medium size devices up to 2500 watts/ 20.8 AC amps
• Ideal for medium size appliances, tools, pumps or small compressors (not recommend for microwaves or anything with a circuit board)
• Expandable – up to 720 watts of solar and endless amount of batteries
• Total panel dimensions are 16ft x 2ft which fits perfect on top of a RV, bus or work truck

*The solar panel will recharge a 50% depleted 200 amp battery in 5 hours with full sunlight.*

Complete Kit Specifications and Components

You can find the specifications for each product by clicking on the links below.

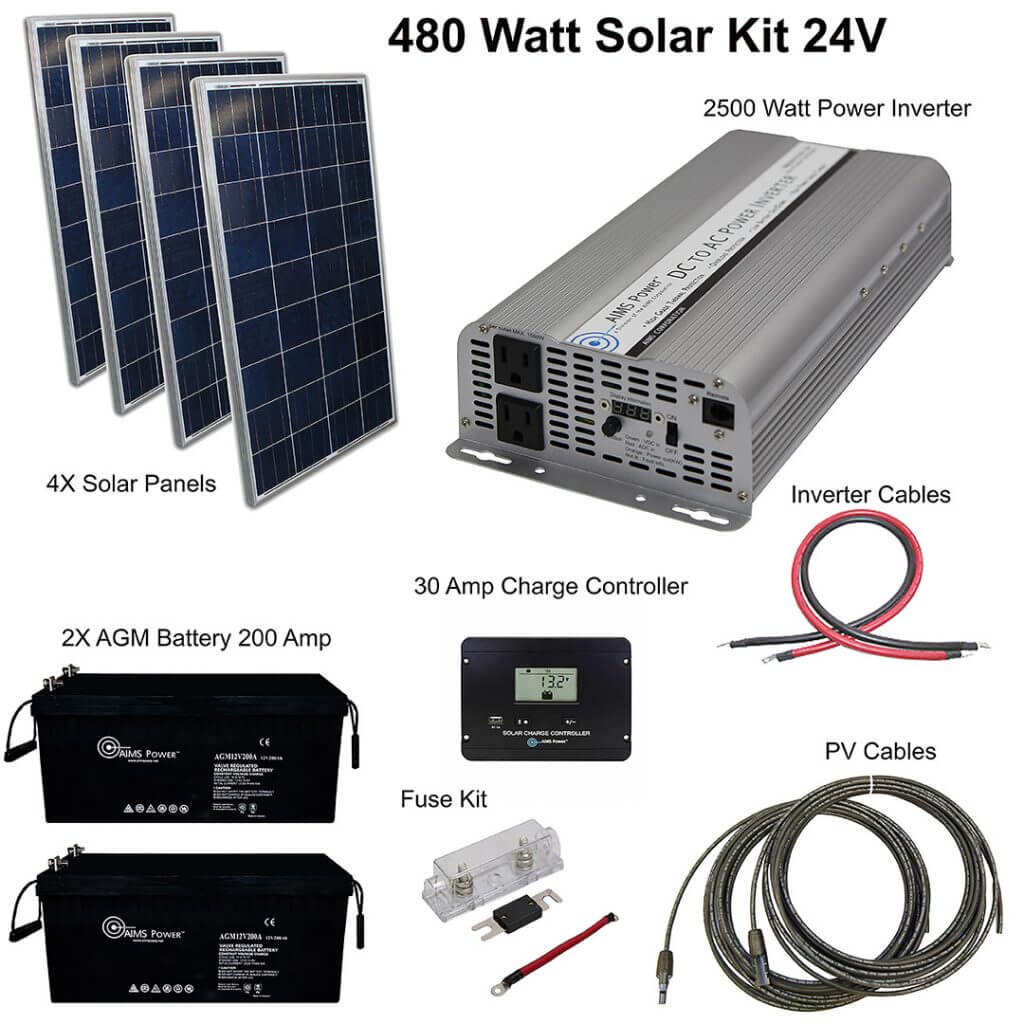

This solar kit includes:

PWRINV250024W – 2500 watt inverter 24VDC click here for more info

PV120MONO – qty 4 – 120 watt mono solar panel @48 SQ FT click here for more info

SCC30AFM – 30 amp solar charge controller click here for more info

AGM12V200A – qty 2 – 200 ah AGM deep cycle batteries click here for more info

PV100FTSET – 100 foot 10AWG PV wires for solar panels to charge controller male & female

PVF100FT10AWG – 100 foot PV wire for combiner box to disconnect switch (female)

PVM100FT10AWG – 100 foot PV wire for combiner box to disconnect switch (male)

PVSCC06FTSET – 6 ft set charge controller to battery wires

CBL08FT4AWG – 8 ft set of 4 AWG cable set battery bank to inverter

CBL01FT4AWGRED – qty 2 – 1 ft jumper for fuse kit and batteries

ANL150KIT – 150 amp inline fuse batteries to inverter

PVMC4.A-2F1M – MC4 Branch 2F to M

PVMC4.A-2M1F – MC4 Branch 2M to F

PV-F15 – Solar inline fuse 15amp
