Aims Power 720 Watt Solar With 1000 Watt Pure Sine Power Inverter Charger - KITB-1K12120-B1-1

AIMS POWER 720 WATT SOLAR WITH 1000 WATT PURE SINE INVERTER  CHARGER OFF-GRID SOLAR KIT

The new all-in-one solar kit from AIMS Power is perfect for all your off-grid power needs. Whether you're powering an off-grid home or cabin or seeking a reliable backup power source for a small business, this kit has everything you need bundled for convenience. It's ideal for providing up to 8 amps of power for extended periods.

The 720-watt solar kit includes a pure sine inverter charger with a built-in battery charger, allowing you to recharge the batteries when 120 VAC city or generator power is available. The 1000-watt pure sine inverter charger can power 110/120 Volt appliances, electronics, tools, and pumps up to 8 amps. The solar panels are protected by tempered glass, ensuring durability in hazardous weather and consistent performance in optimal sunlight conditions. The PV wiring is designed to withstand UV, water, ozone, fluids, oil, salt, and general weathering.

Equipped with 12 Volt 200 amp AGM deep cycle batteries, this system provides efficient and reliable power. A wiring diagram is provided with each purchase, making setup straightforward.

720 Watt Solar with 1000W Inverter Off Grid Kit Features

• Easy to connect and use
• Complete kit (mounting/racks for solar panels not included)
• Supports devices up to 1000 watts/8 AC amps
• Suitable for standby backup or off-grid power needs
• Includes 400 amps of battery power
• Ideal for small homes, cabins, or businesses
• Requires approximately 75 sq ft for solar panels

The solar panel array can recharge a 50% depleted 400 amp battery bank in under 4 hours with full sunlight.

Aims Power KITB-1K12120-B1-1 Specifications

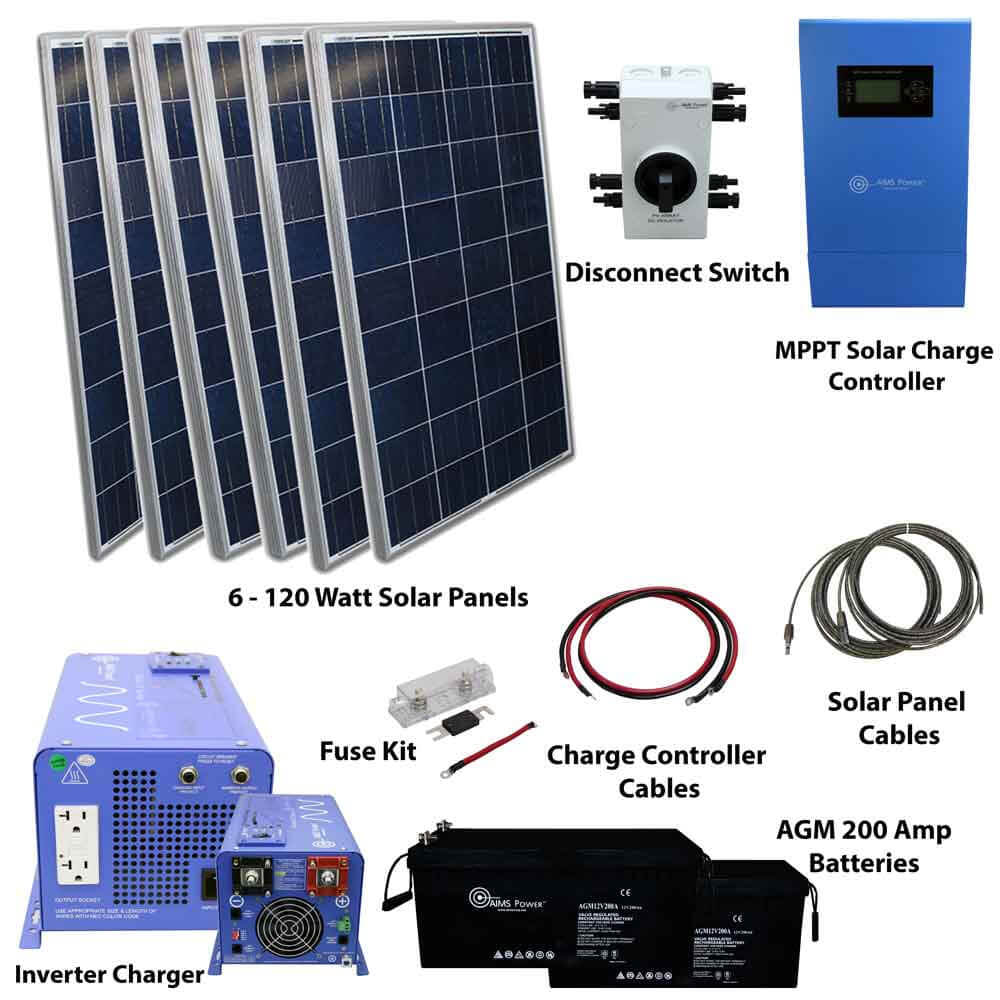

This solar kit includes:

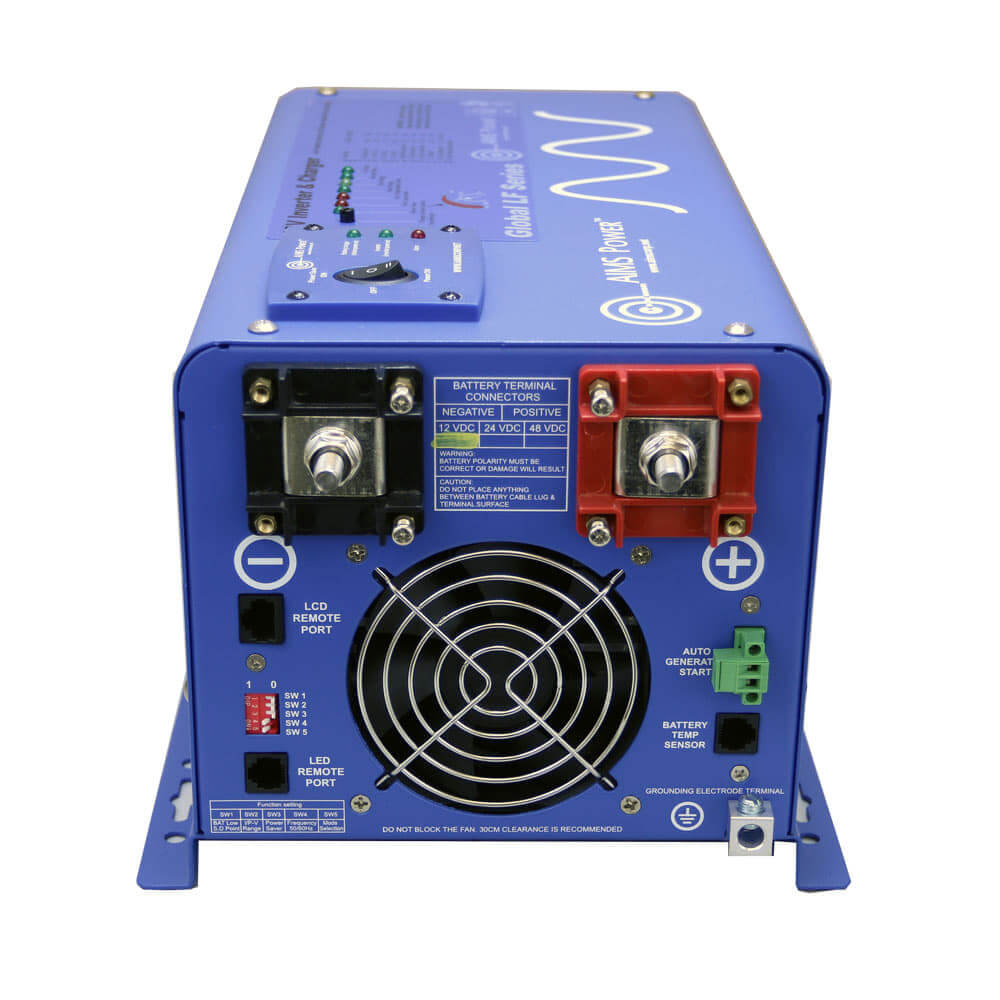

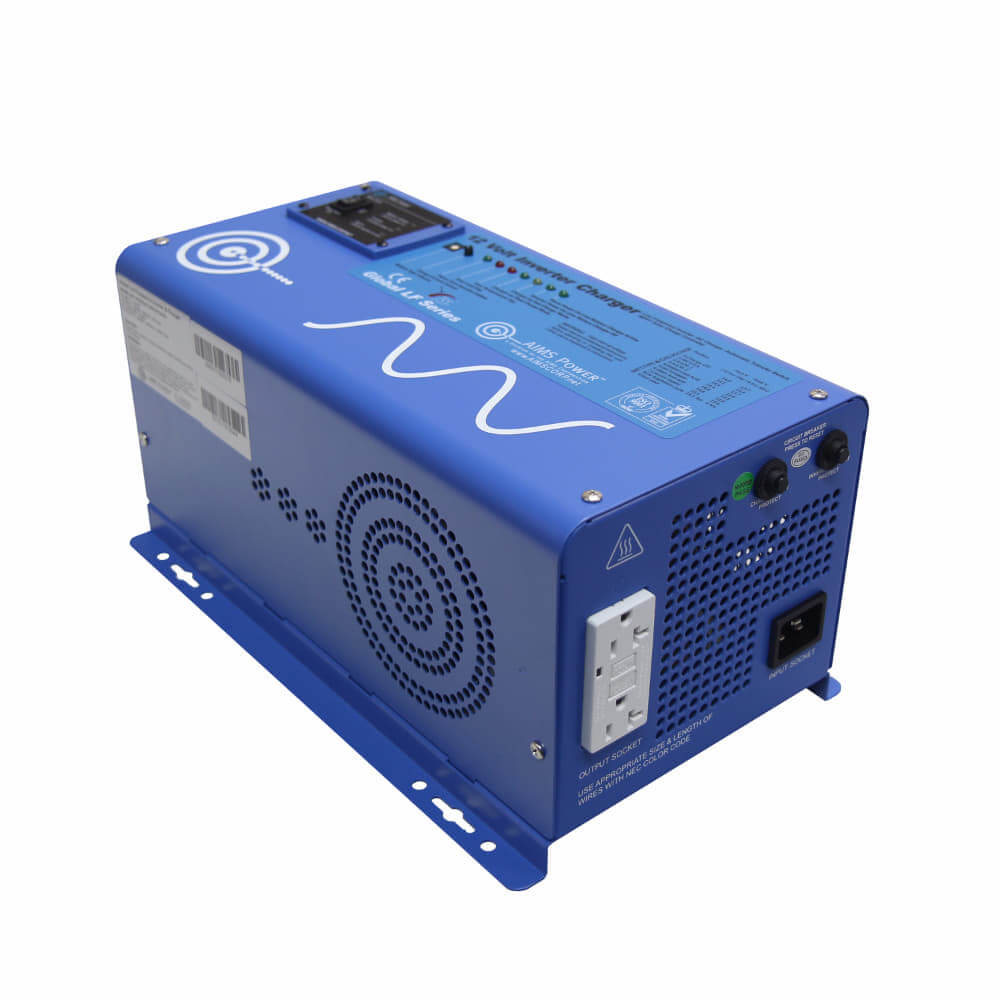

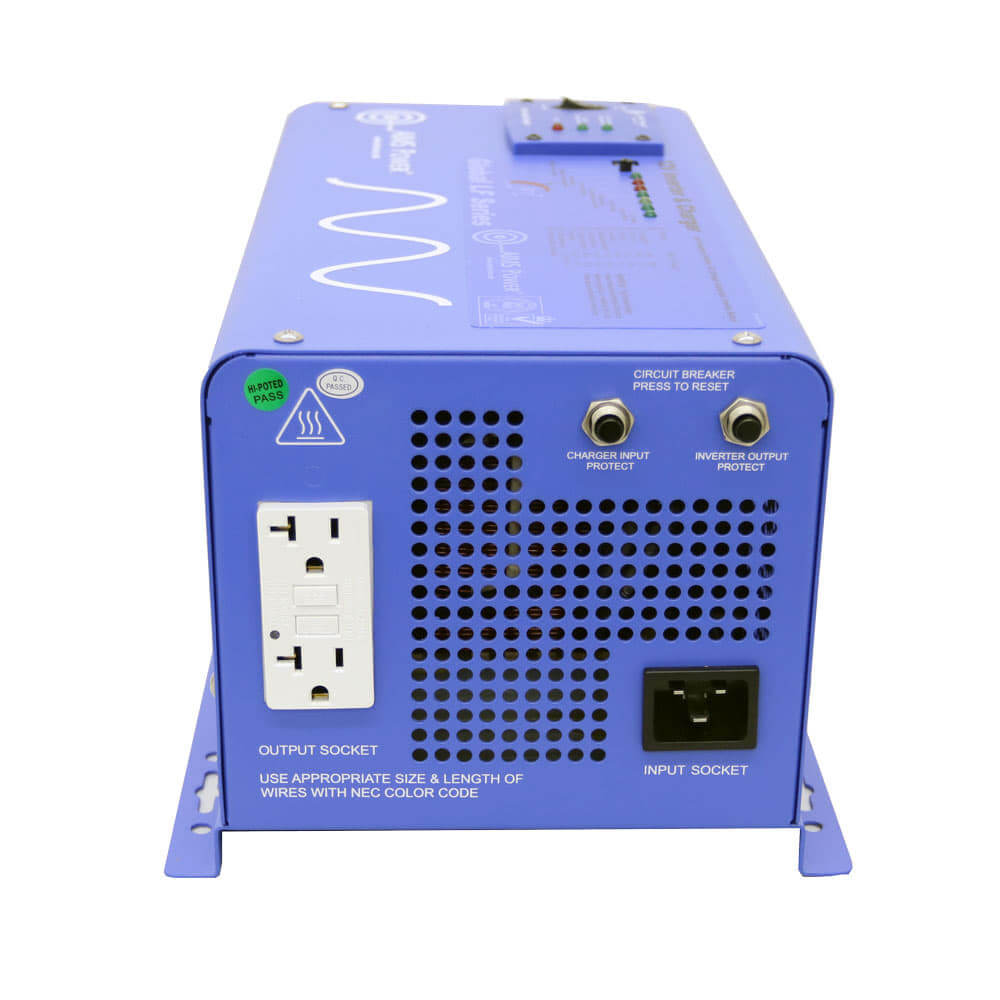

• PICOGLF10W12V120VR- 1000 watt pure sine inverter charger 8 amps @120VAC
• PV120MONO – qty 6 – 120 watt mono solar panel @75 SQ FT

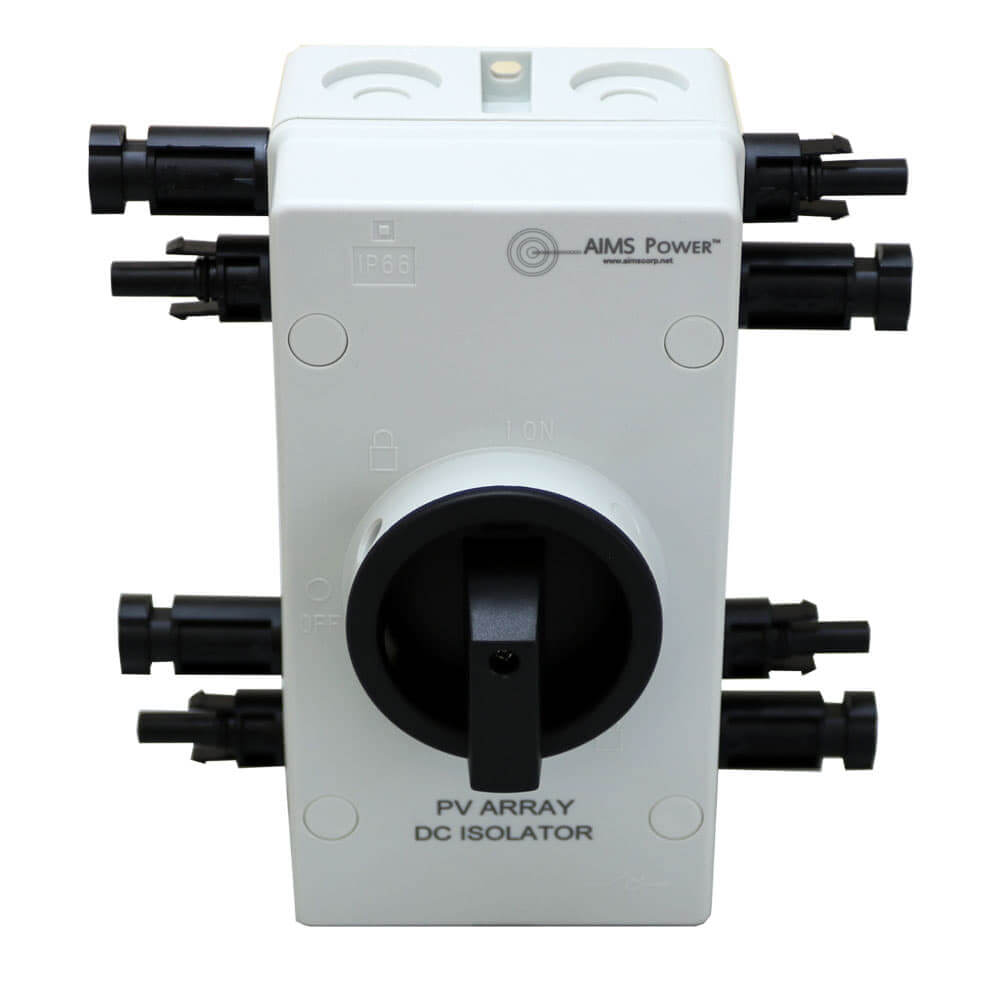

• Quick disconnect – DC1600V32A2IO
• Pre wired solar array combiner box 3 string

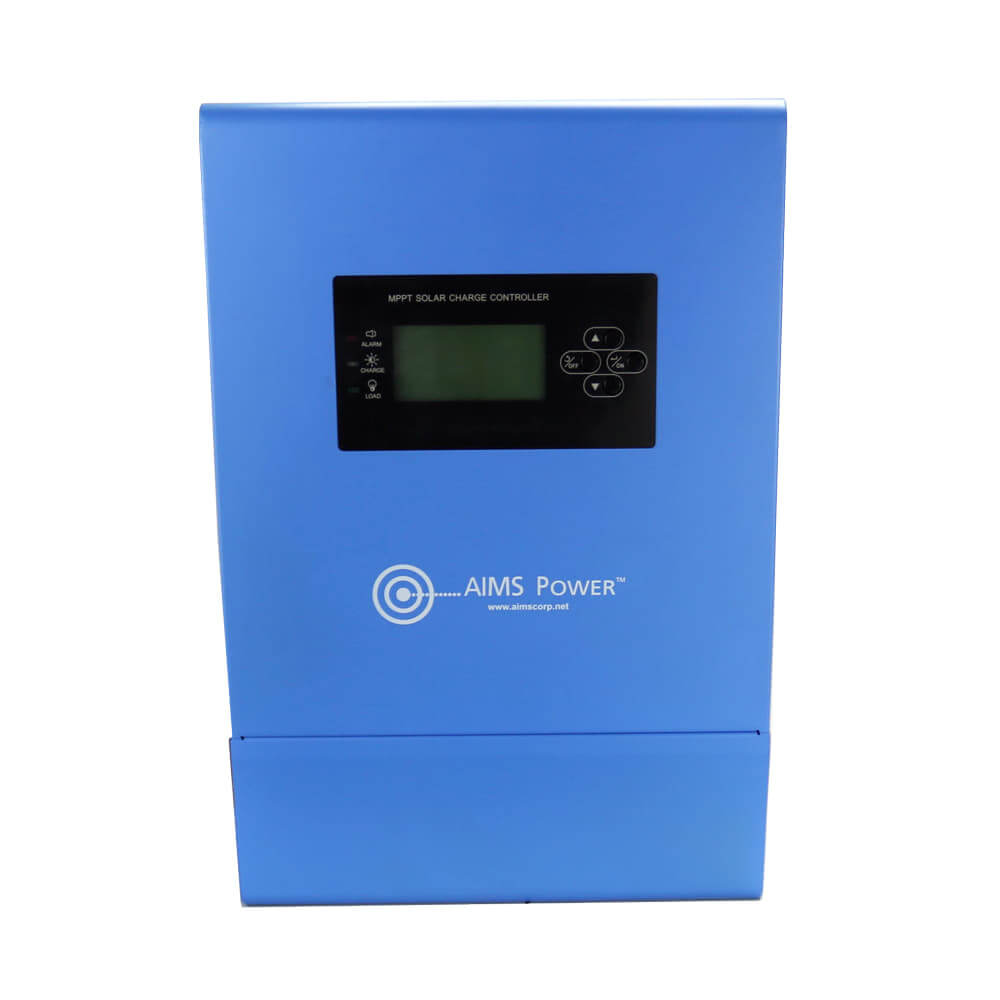

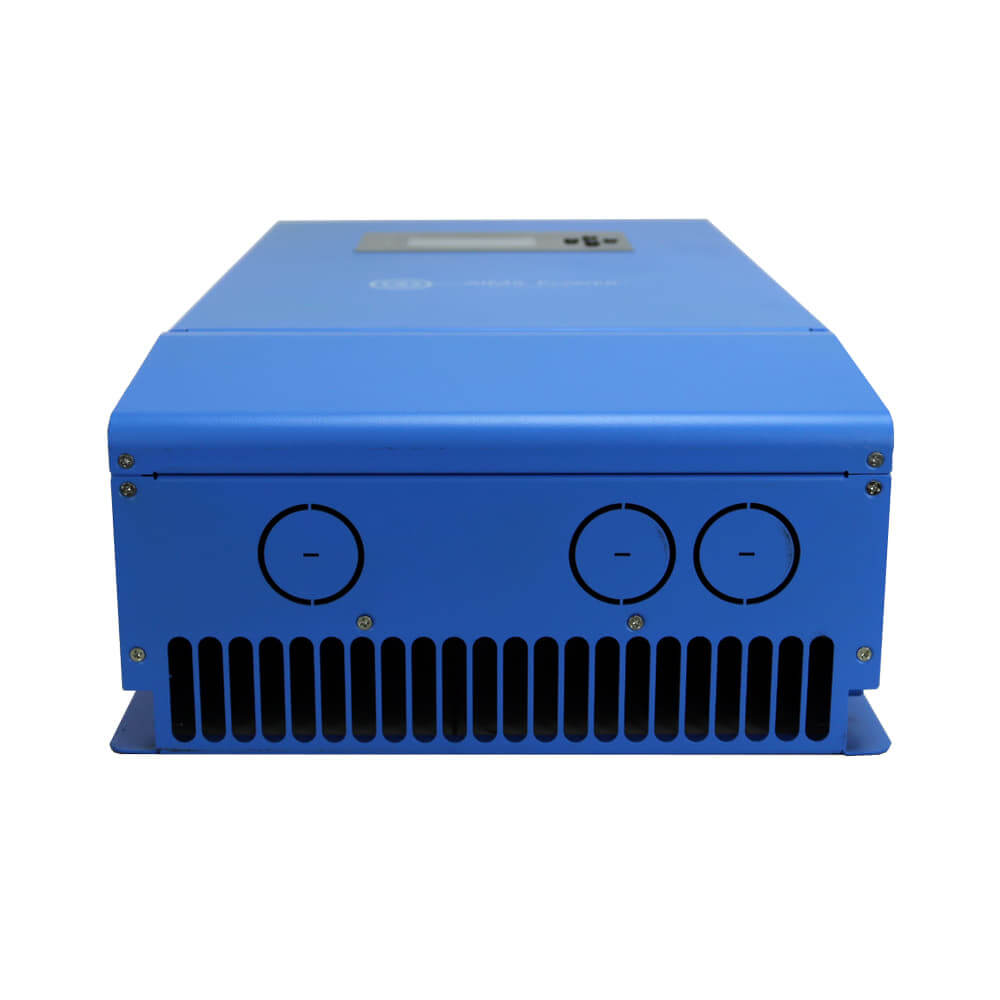

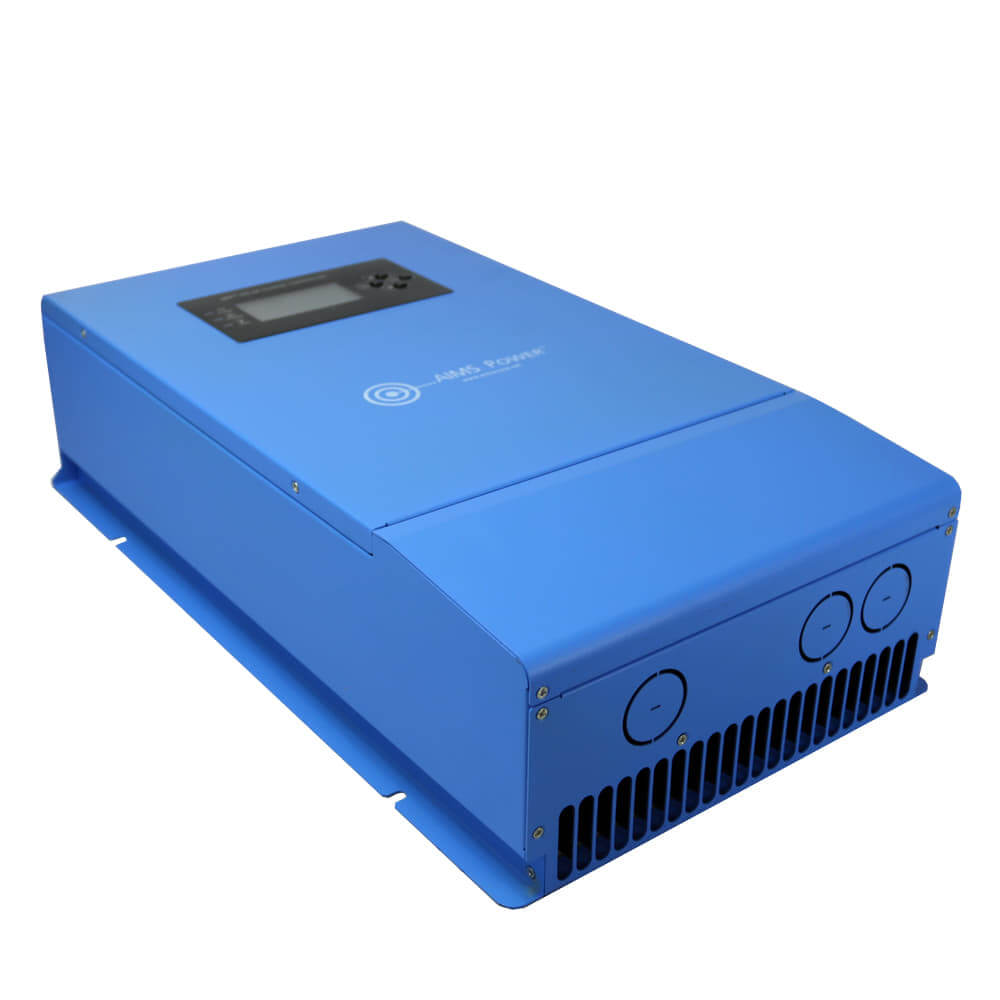

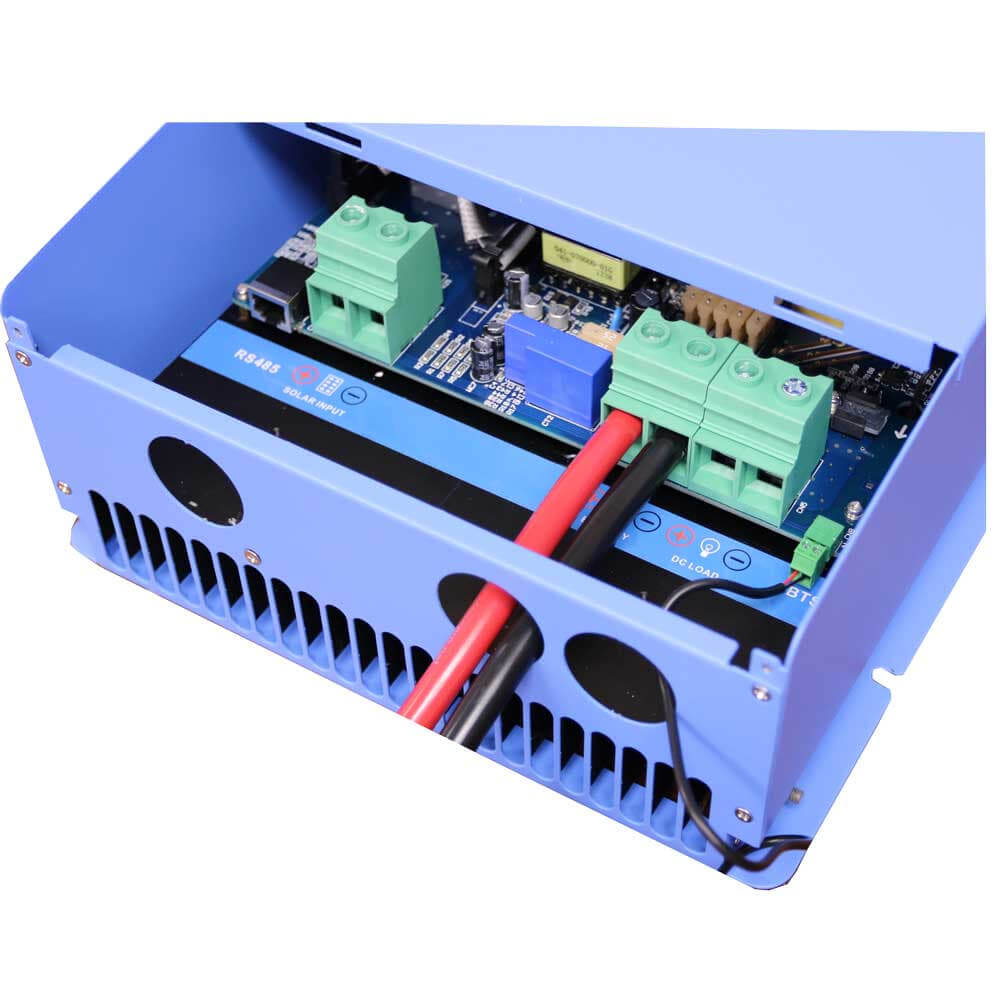

• SCC60AFM – 60 amp MPPT solar charge controller
• PV-F15 – Solar inline fuse 15 amp

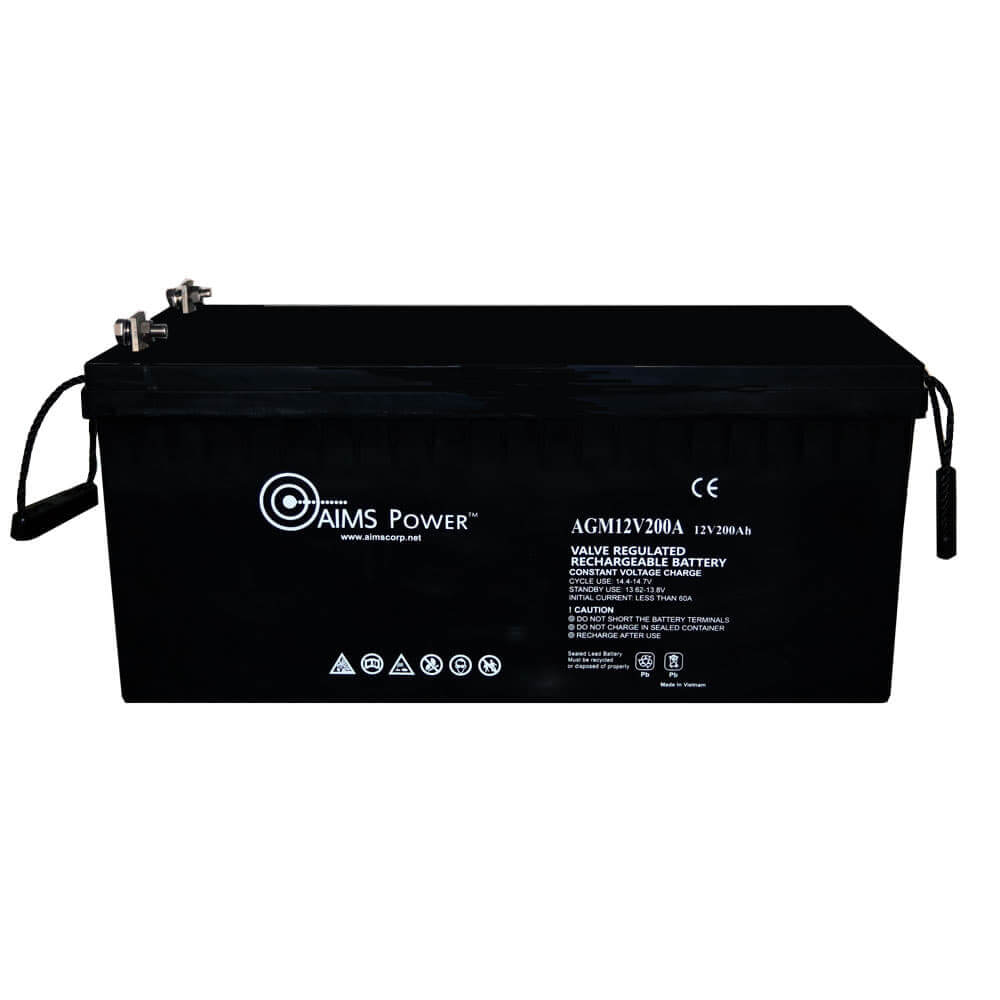

• AGM12V200A – qty 2 – 200 ah AGM deep cycle batteries
• PV100FTSET – 100 foot 10AWG PV wires for solar panels to charge controller male & female
• PVF100FT10AWG – 100 foot PV wire for combiner box to disconnect switch (female)
• PVM100FT10AWG – 100 foot PV wire for combiner box to disconnect switch (male)
• PVF20FT10AWG – male and female extender wire for panels to combiner box, combiner box to disconnect and disconnect switch to charge controller
• PICGLFBATS – Battery temperature sensor
• CBL08FT6AWGC- 8 ft set of 6 AWG cable to connect charge controller to battery bank
• ANL80KITJ – 50 amp fuse kit for charge controller to battery bank
• CBL08FT4AWG – 8 ft set of 4 AWG cable set battery bank to inverter
• CBL02FT4AWG – 1 set of 2 ft cable (battery cables)
• FV-F15 solar inline fuse
• ANL150KITWJUMP – 150 amp inline fuse kit with jumper for batteries to inverter
