AIMS Power 760W Solar Kit 4000W Pure Sine Inverter 12V Off-Grid

AIMS Power KITD-4KW12V760W: 760W Solar Kit with 4000W Pure Sine Inverter

Complete off-grid solar power system combining a 760W solar array with a 4000W pure sine inverter charger for reliable energy independence.

🔋 Powerful Performance:

• 760W monocrystalline solar panels for maximum energy harvesting
• 4000W pure sine wave inverter charger delivers clean AC power
• Powers devices up to 33A at 120V or 16A at 240V
• 600Ah AGM deep cycle battery bank for extended power storage

🏠 Ideal Applications:

• Off-grid homes and remote cabins
• Small businesses requiring backup power systems
• RVs and mobile off-grid installations
• Emergency preparedness and backup power

⚡ Versatile Power Solution:

Operates refrigerators, freezers, heaters, lights, fans, electronics, and medium-sized appliances. Designed for powering essential equipment in off-grid locations or as a standby backup system.

☀️ Rapid Solar Charging:

60A MPPT solar charge controller recharges a 50% depleted 600 amp hour battery bank in under 5 hours with optimal sunlight conditions.

🛠️ Complete Installation Kit:

• Complete solar power system (mounting racks sold separately)
• Pre-wired combiner box for simplified installation
• Requires only 48 square feet for solar panel installation
• Includes all necessary cables, fuses, and disconnect switches

💪 Built for Reliability:

Engineered to handle demanding off-grid applications and provide consistent power output when you need it most.

The AIMS Power KITD-4KW12V760W solar kit provides complete energy independence for off-grid applications. Order now for reliable solar power.

Aims Power KITD-4KW12V760W Specifications

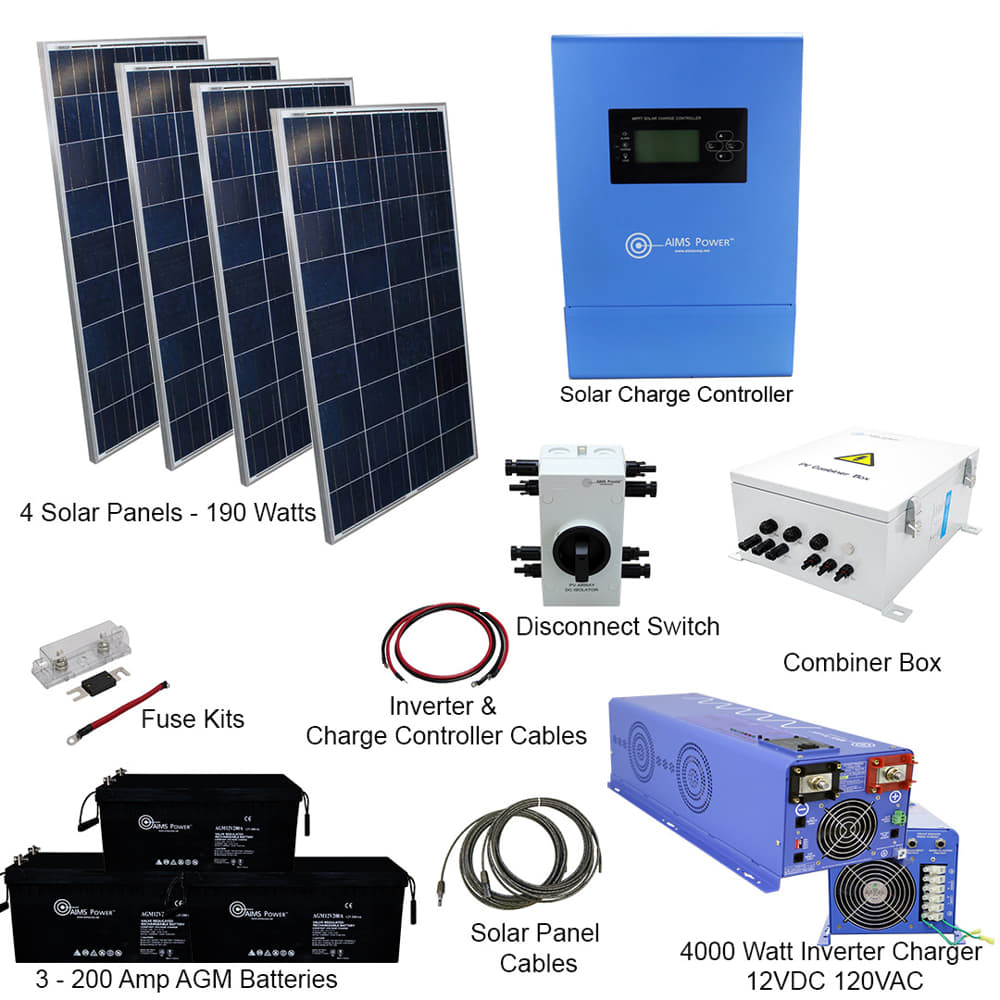

This solar kit includes:

• PICOGLF40W12V240VS – 4000 watt pure sine inverter charger 33 amps @120VAC and 15 @240VAC
• PV190MONO – qty 4 – 190 watt mono solar panel @48 SQ FT
• Quick disconnect – DC1600V32A2IO
• Pre wired solar array combiner box
• SCC60AFM – 60 amp MPPT solar charge controller
• AGM12V200A – qty 3 – 200 ah AGM deep cycle batteries
• PV100FTSET – 100 foot 10AWG PV wires for solar panels to charge controller male & female
• PVF100FT10AWG – 100 foot PV wire for solar panel to disconnect switch (female)
• PVM100FT10AWG – 100 foot PV wire for solar panel to disconnect switch (male)
• PVF20FT10AWG – male and female panels to combiner box, combiner box to disconnect and disconnect switch to charge controller
• PICGLFBATS – Battery temperature sensor
• CBL06FT8AWGC- 8 ft set of 6 AWG cable to connect charge controller to battery bank
• ANL80KITJ – 80 amp fuse kit for charge controller to battery bank
• CBL06FT4/0 – 6 ft set of 4/0 AWG cable set battery bank to inverter
• CBL02FT4/0 – qty 2 – 2 ft set of 4/0 cable (battery cables for parallel connection)
• ANL500KITWJUMP – 500 amp inline fuse kit with jumper for batteries to inverter
