Aims Power 120W Solar Kit Complete Off-Grid System 1250W Inverter

Complete Off-Grid Solar Power Solution

When power outages disrupt your life or remote work, the Aims Power KITB-B125012120 120 Watt Solar Kit with 1250 Watt Inverter delivers reliable off-grid power for essential devices and equipment.

Power Your Work and Essential Devices

• Remote Work Ready: Keep laptops, phones, and work equipment powered during outages or at remote worksites
• Essential Device Support: Run lights, small refrigerators, radios, and vital devices up to 1250 watts/10 AC amps 120 VAC

Complete Solar Kit - Everything Included

• No Additional Parts Needed: Complete bundle includes panels, inverter, battery, charge controller, and all wiring with detailed installation diagram
• Weather Resistant Design: Tempered glass solar panels and protected wiring withstand outdoor elements

Expandable Solar System

• Start Small, Scale Up: 120-watt system powers basic needs with option to add more panels or batteries
• Upgrade Path Available: Compatible with larger Aims Power systems for increased power requirements

AIMS Power 120 WATT Solar Kit KITB-B125012120 Features

• Easy to connect and use
• Everything included except mounting/racks for solar panels
• Works with devices up to 1250 watts/ 10 AC amps 120 VAC
• Ideal for any equipment that needs standby back up or off grid power
• Perfect for a small home, cabin or business
• Need @6 sq ft available for solar panel

Specifications: 120 WATT SOLAR KIT 1250 WATT INVERTER OFF GRID KITB-B125012120

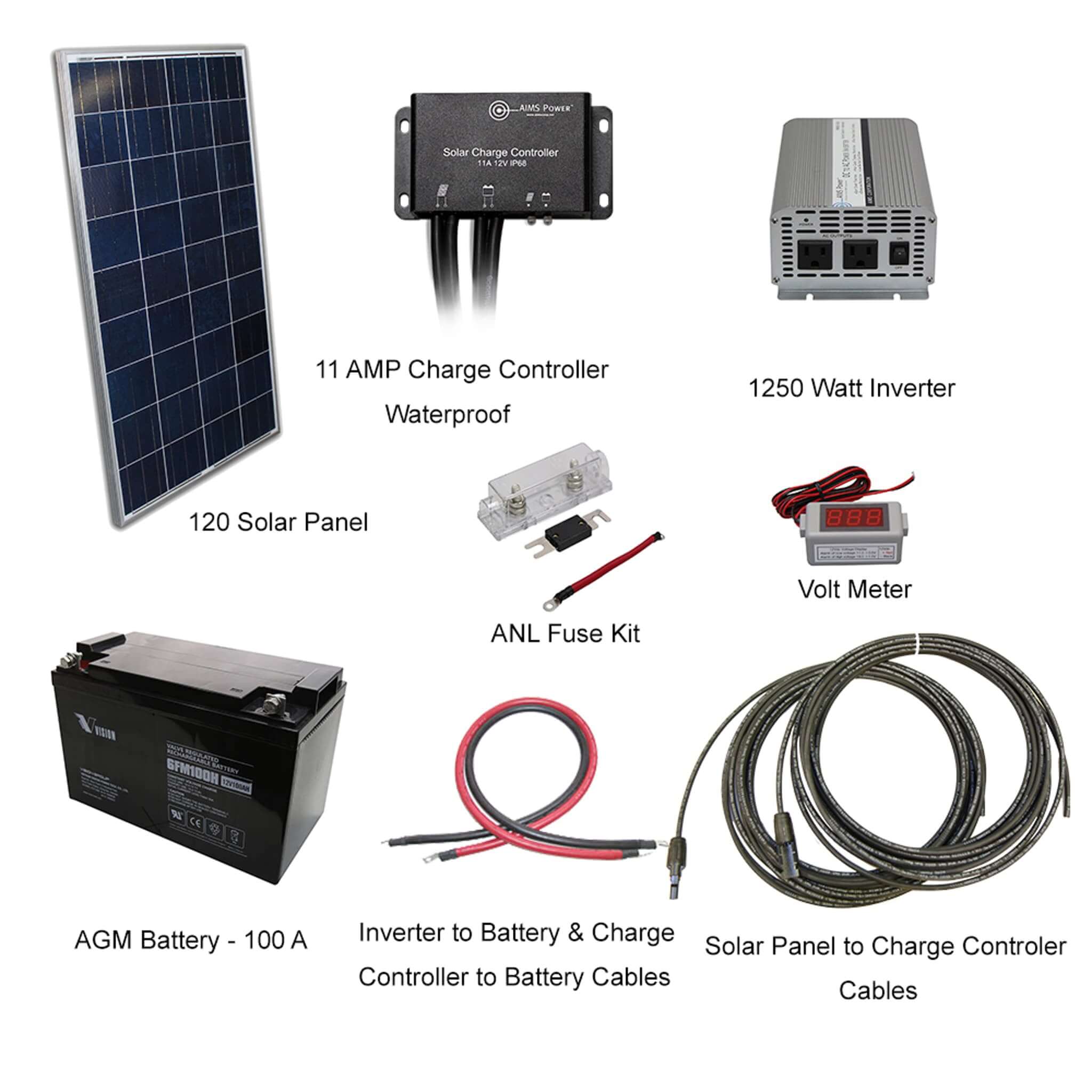

This solar kit includes:

PWRB1250W – 1250 watt inverter 10 amps

PV120MONO – qty 1 – 120 watt mono solar panel @6 SQ FT

SCC11ARPM – 10 amp PWM solar charge controller

AGM12V100A – qty 1 – 100 ah AGM deep cycle battery

PV100FTSET – 100 foot 10AWG PV wires for solar panels to charge controller male & female

PVL30FT – 30 foot PV wire for Charge Controller to Battery (cut to lugged ends for battery)

CBL08FT6AWG – 8 ft 6AWG set of cables battery bank to inverter

CBL01FT6AWGRED – 1 ft jumper for fuse kit

ANL150KIT – 150 amp inline fuse kit

Volt meter

Solar inline fuse 15A
