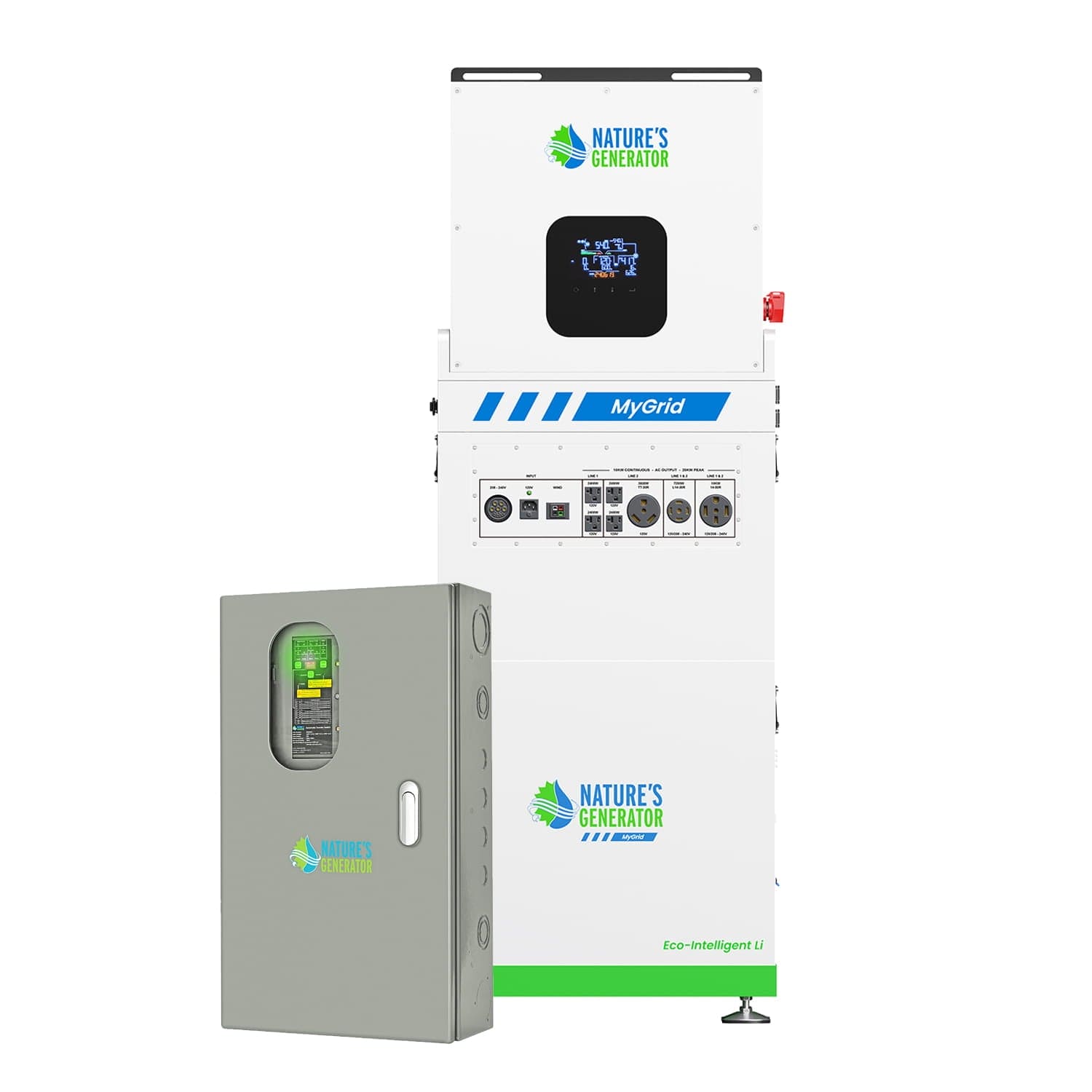

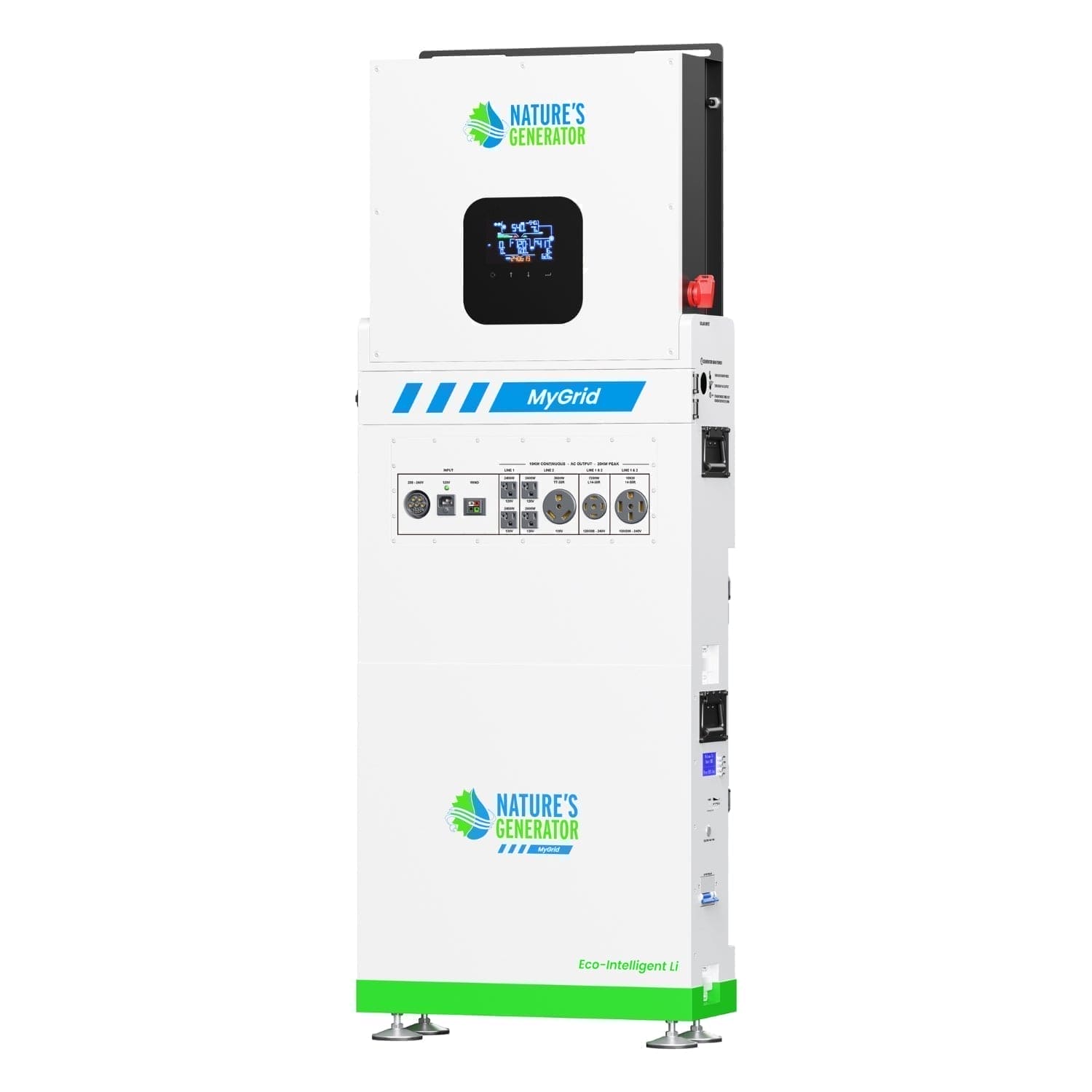

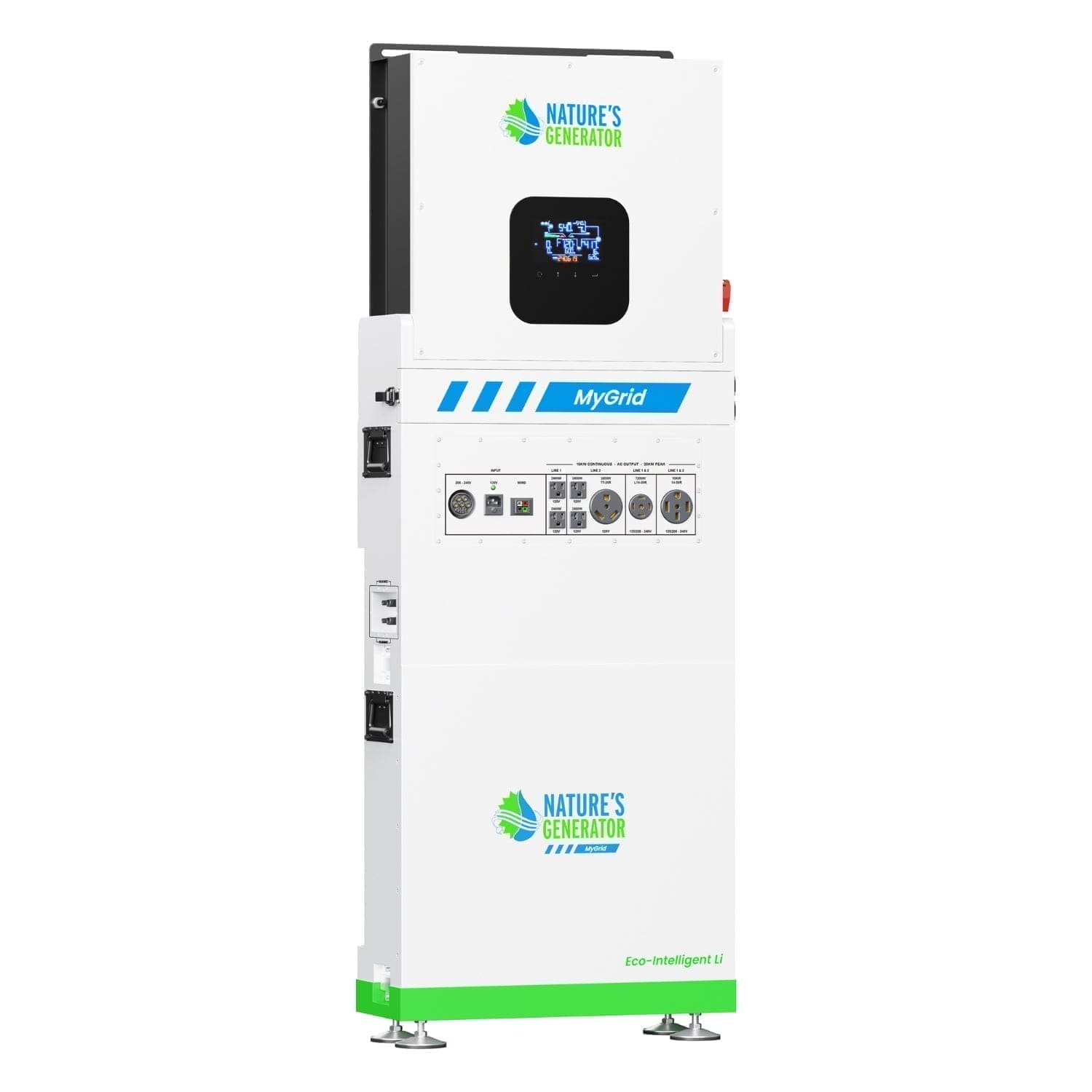

MyGrid 10K with Transfer Switch for House Battery Backup
The MyGrid 10K with Transfer Switch ($6,499–$7,999) provides commercial-grade whole-home backup power with a 10,496Wh LiFePO4 battery and automatic transfer switch integration. This 10kW continuous output system eliminates outage anxiety by keeping refrigerators, HVAC, medical devices, and essential circuits operational during grid interruptions.
Power Specifications

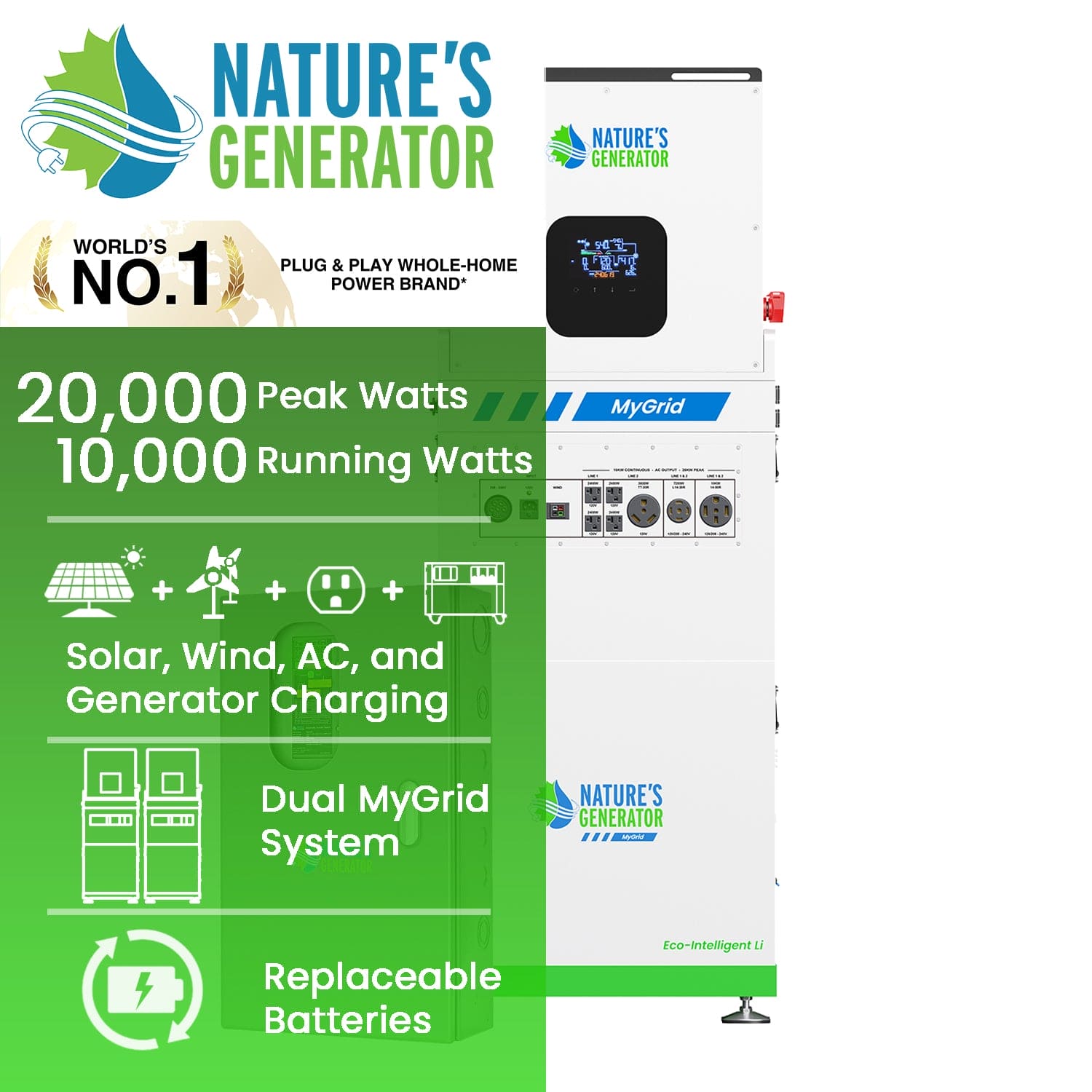

- Continuous Output: 10,000W | Peak: 20,000W
- Battery Capacity: 10,496Wh LiFePO4 (51.2V, 205Ah)
- Voltage: 120/240V split phase
- Cycle Life: >6,000 cycles with enhanced thermal tolerance
- Transfer Time: <20ms automatic switchover
Charging Options

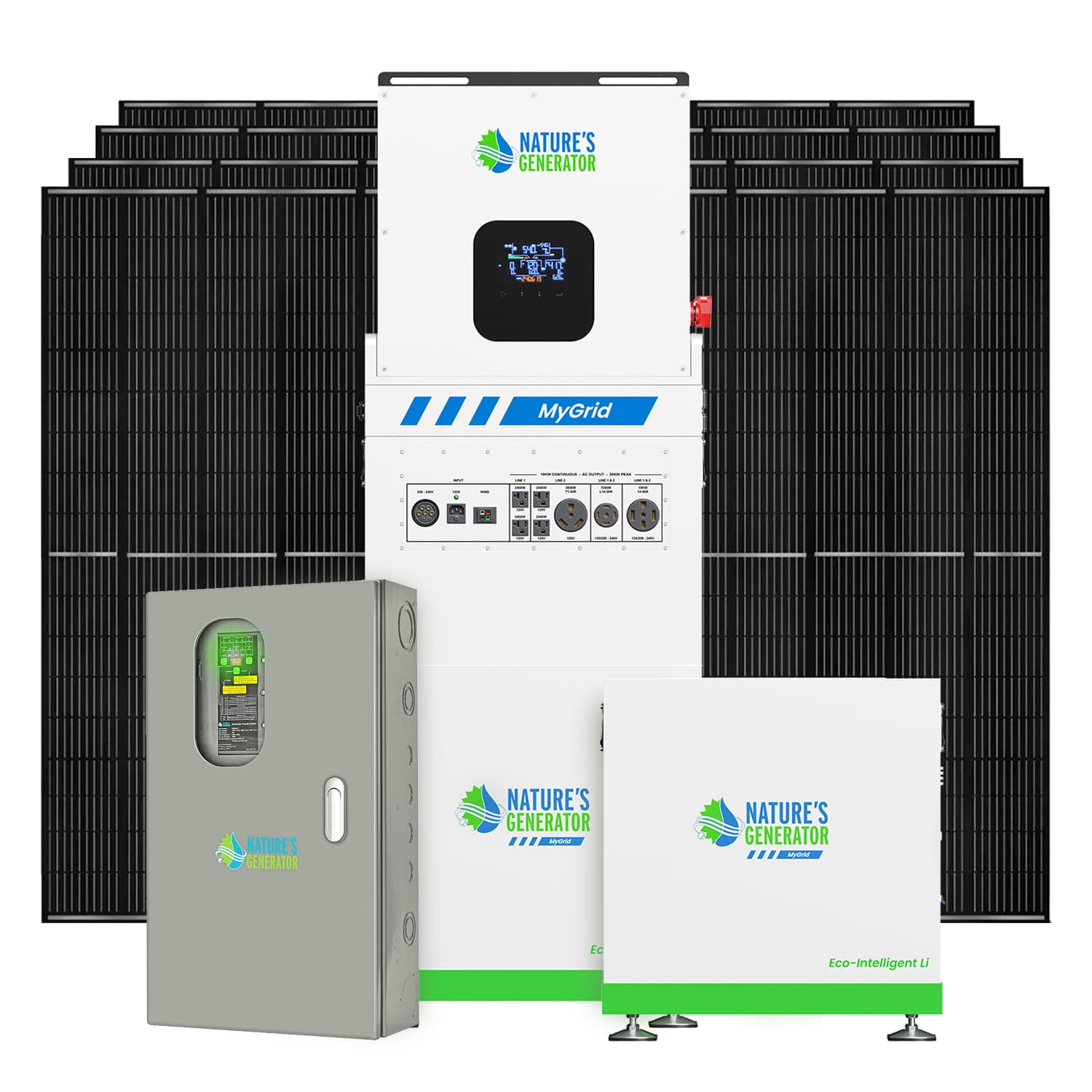

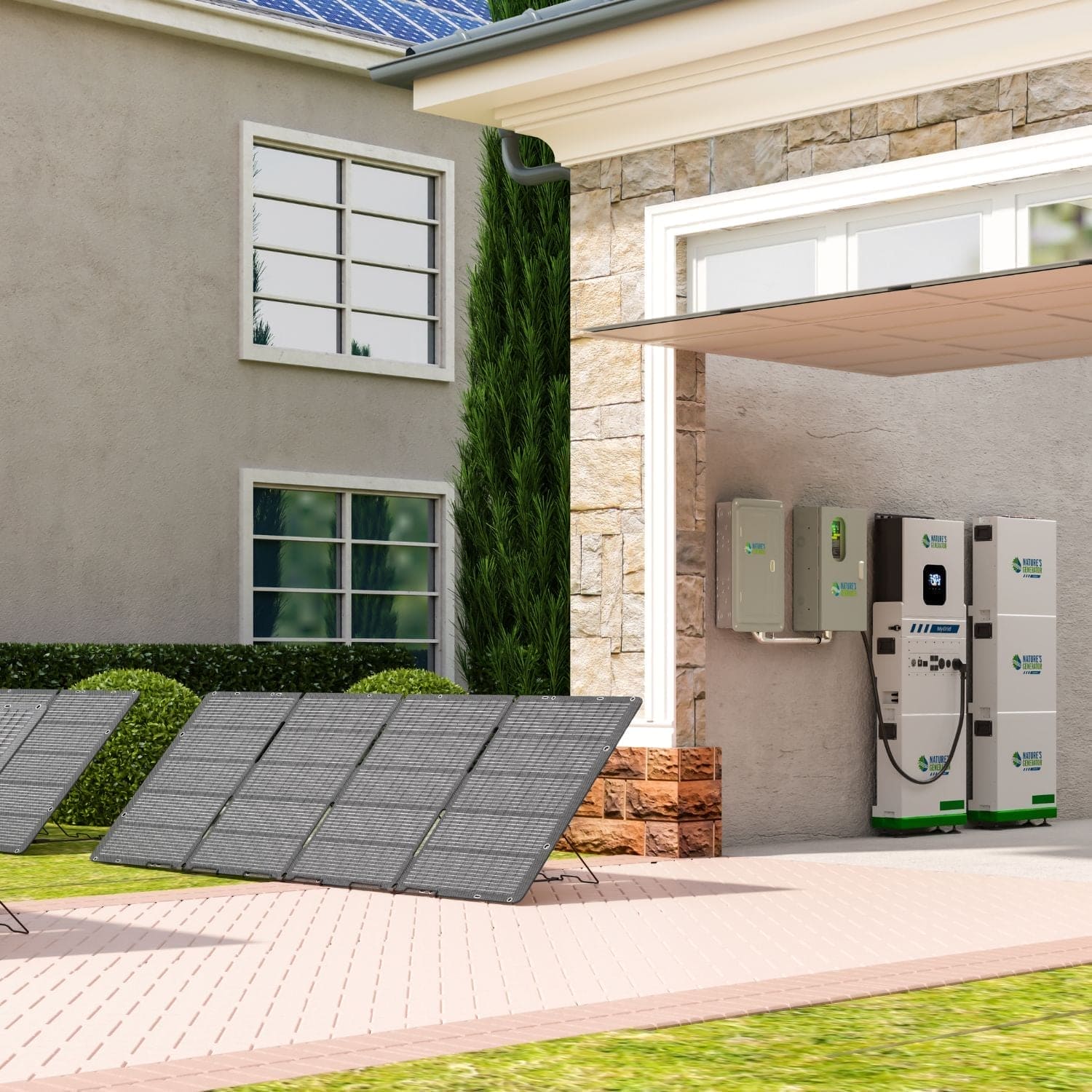

The MyGrid 10K supports multiple charging sources for flexible energy management. MPPT solar input accepts up to 12,000W from high-voltage arrays, enabling primary renewable charging and reduced operating costs. AC 120/240V fast charging provides grid-based recharging, while wind and generator inputs offer additional backup charging strategies.

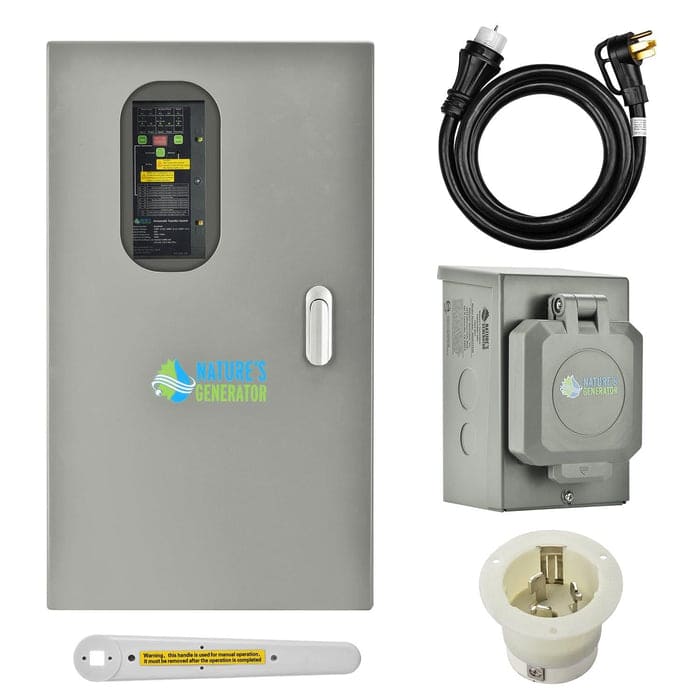

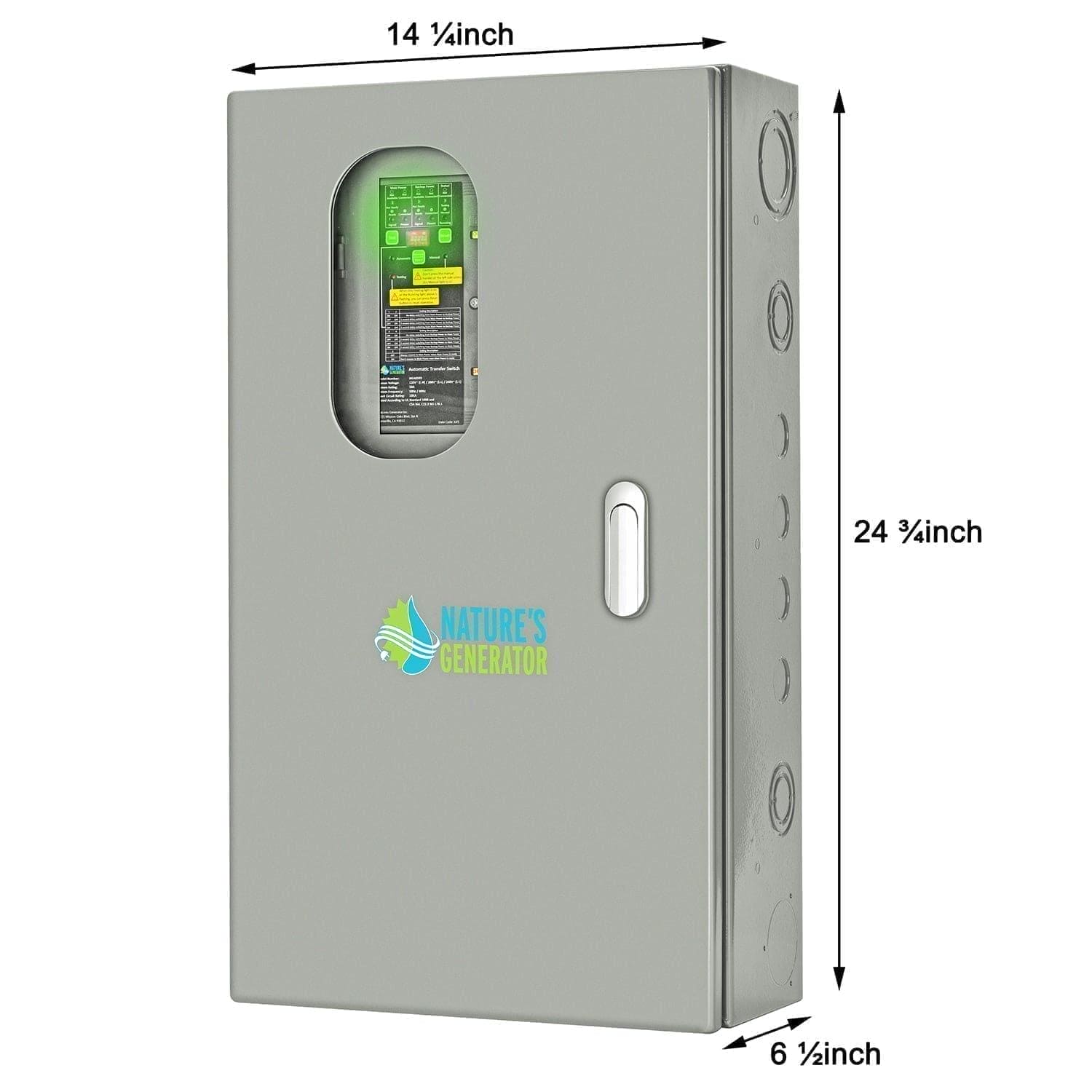

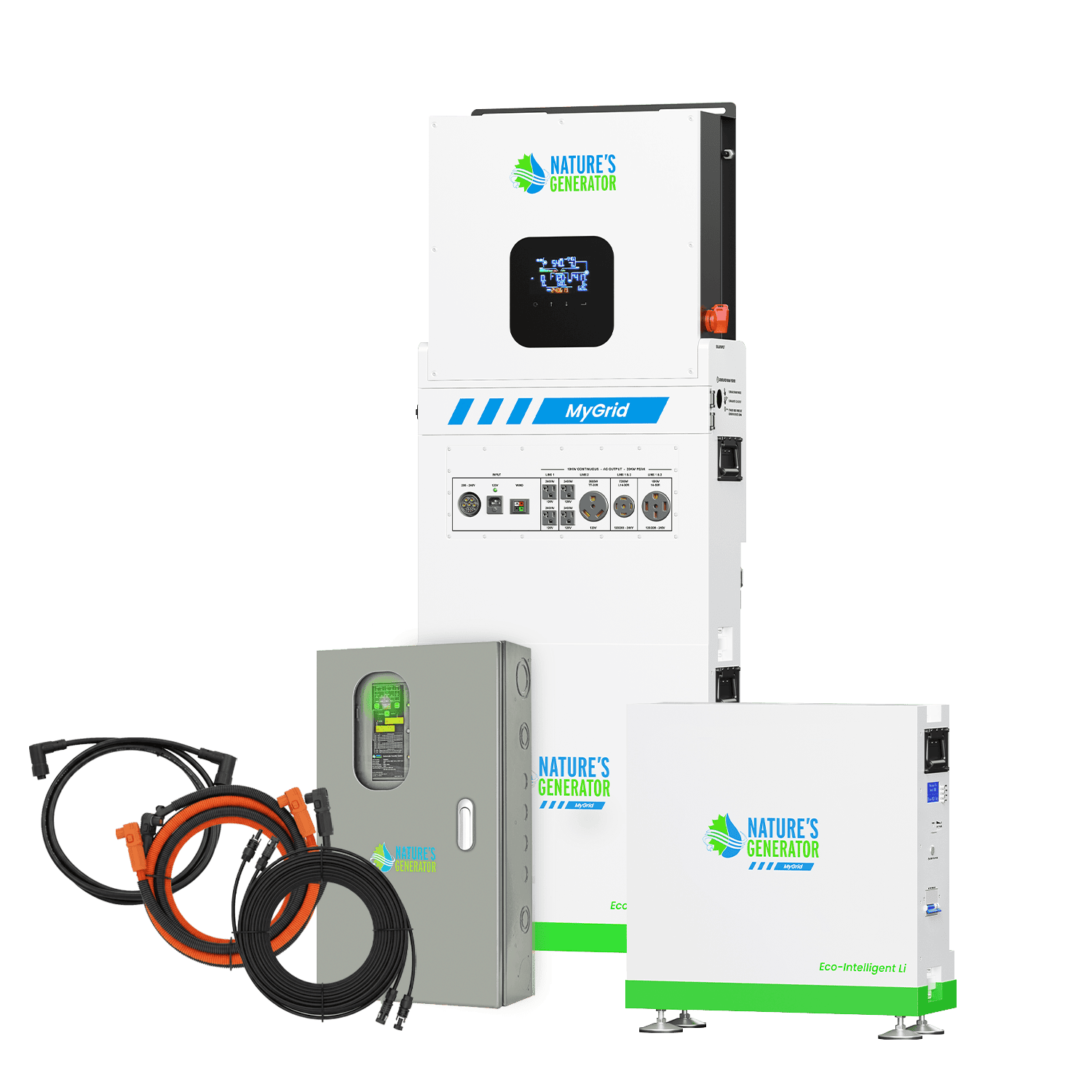

Transfer Switch Integration
Factory-compatible automatic transfer switch design supports 50A or 125A installations for seamless whole-home integration. The sub-20ms transfer time ensures uninterrupted power to critical loads. Professional installation is recommended to meet local electrical codes and ensure safe 240V connections.
Output Panel and Connectivity
NEMA output configuration includes 5-20, TT-30, L14-30, and 14-50 receptacles for versatile load connection. Clear LED display provides real-time system monitoring. Mounting hardware and installer-friendly design enable fast professional setup.

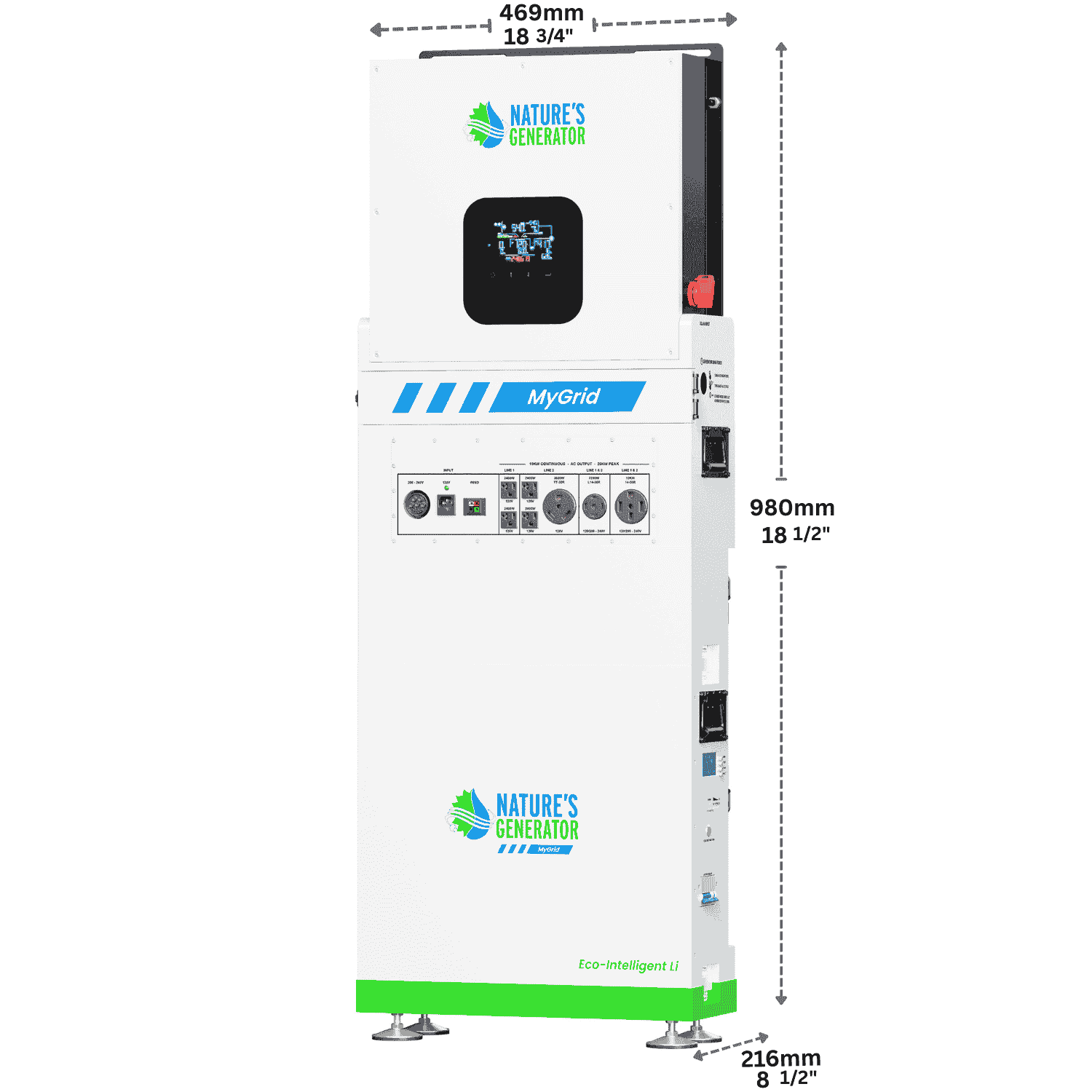

System Dimensions and Weight
- Generator Unit: 21.8" x 8.5" x 38.5" (~152 lbs)

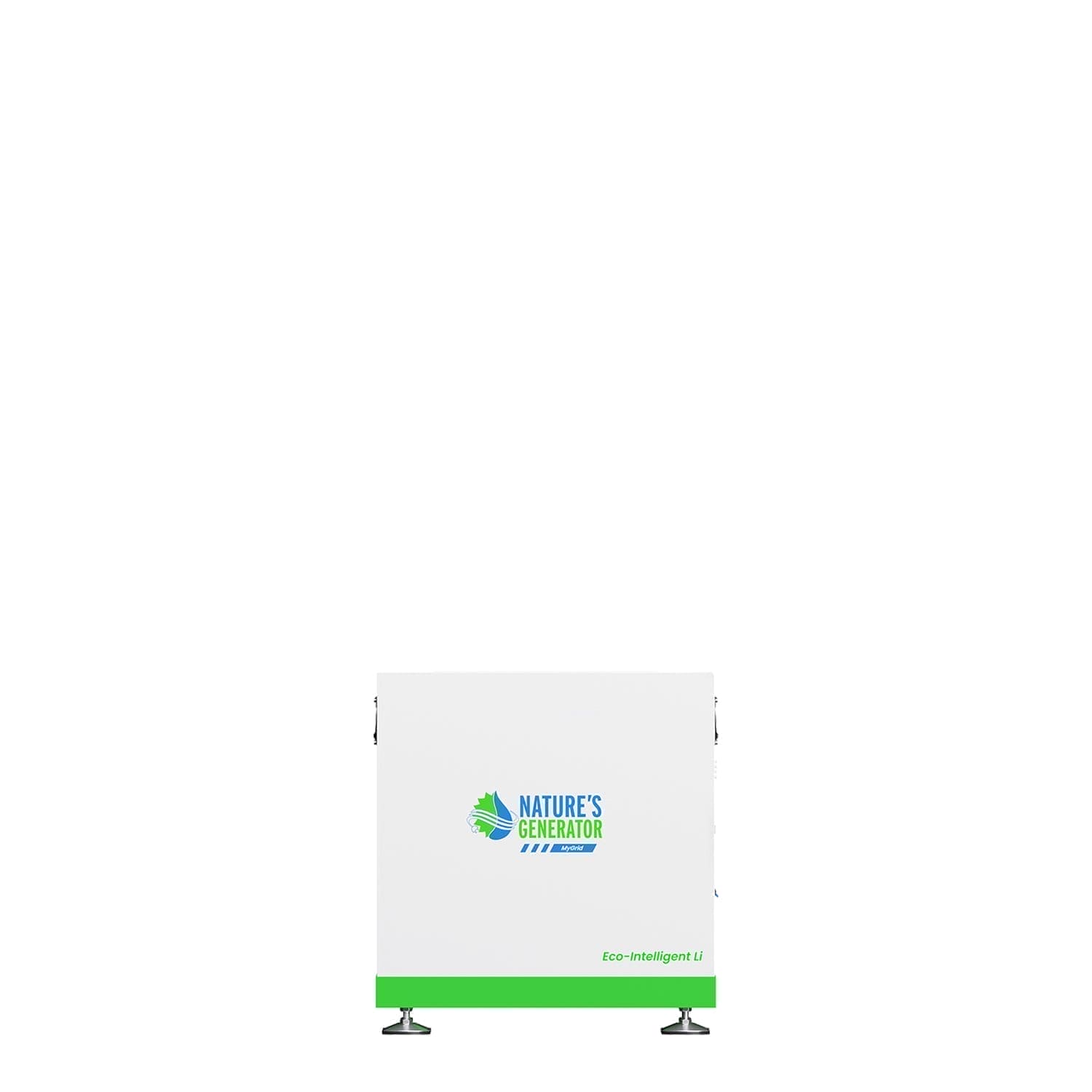

- Battery Unit: 21.8" x 8.5" x 23.4" (~213 lbs)

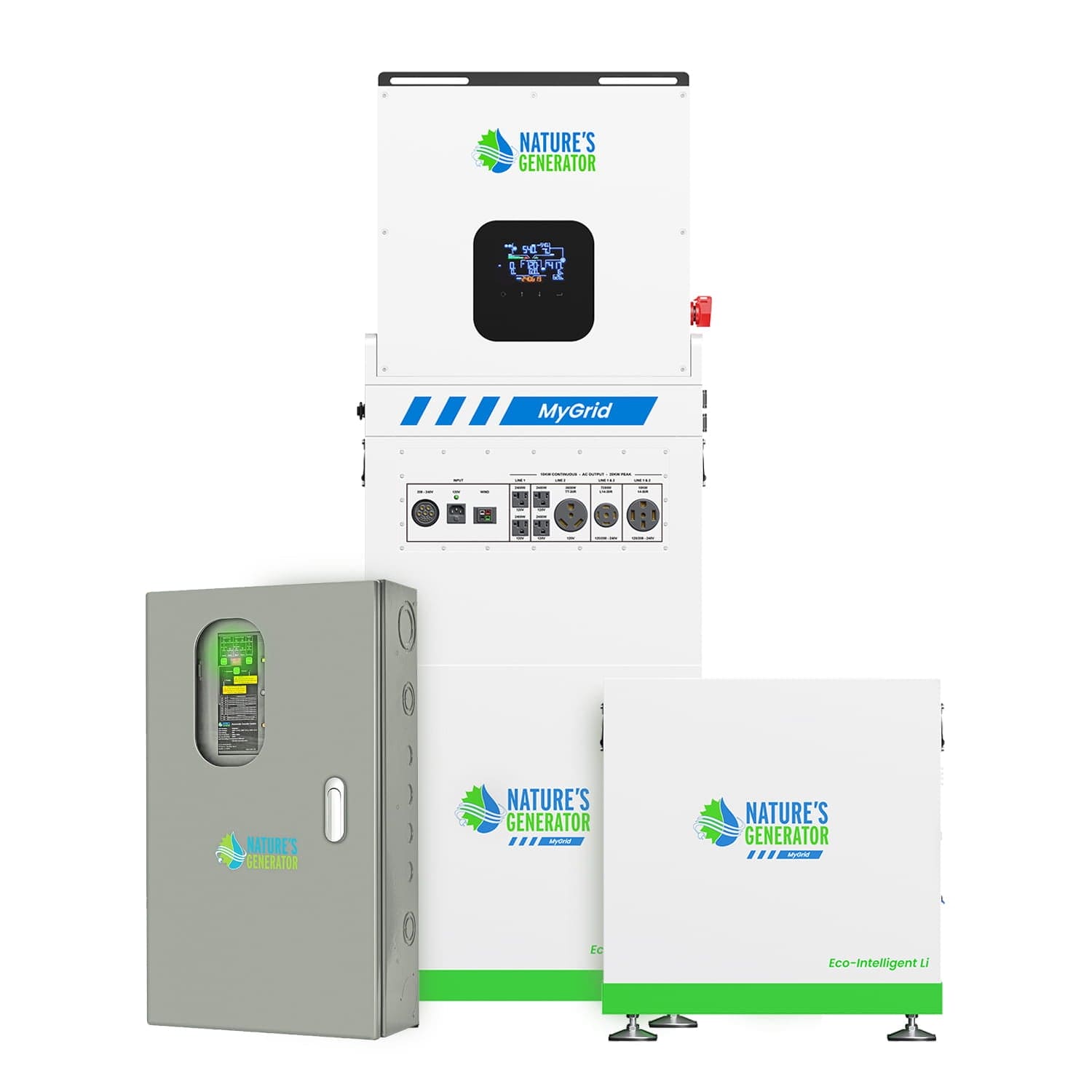

Expandability and Long-Term Value
The MyGrid platform supports battery expansion and parallel operation with a second unit for increased capacity. Zero fuel cost operation when paired with solar panels delivers lower lifetime costs compared to portable gas generators. Minimal maintenance requirements and quiet, clean operation reduce both carbon footprint and ongoing expenses.

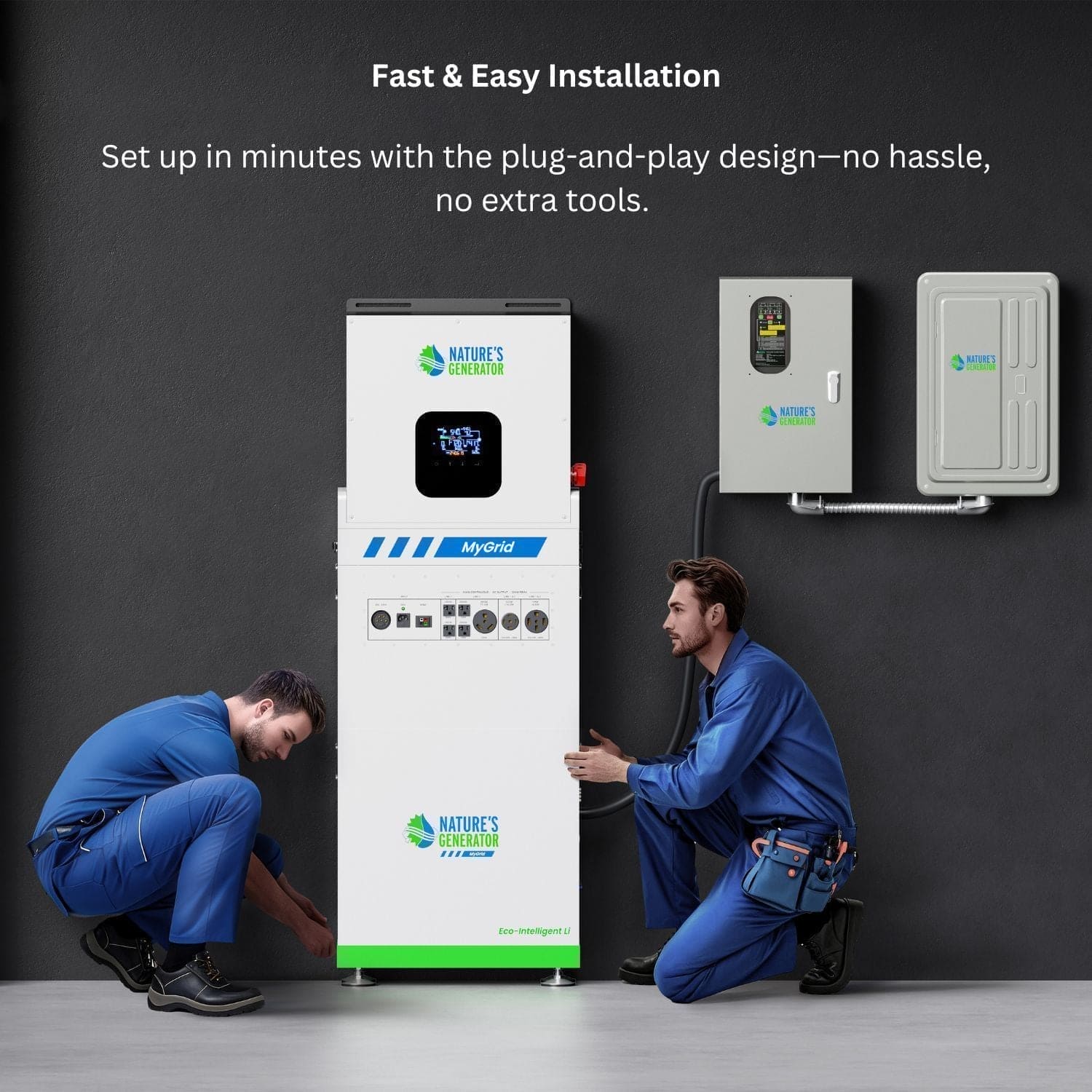

Installation and Support
Built with UL-style electrical components and industrial-grade LiFePO4 battery chemistry, the MyGrid 10K ships with manufacturer-backed support and installation guidance. Nature's Generator dealer and certified installer networks provide professional setup services. The system is designed for load management via transfer switch to optimize 10kW continuous capacity for most single-family homes.
Common Questions
Will this power my entire house?
The 10kW continuous output suits most single-family homes when loads are managed through the transfer switch. Prioritize HVAC, refrigeration, medical devices, and essential outlets. For simultaneous heavy appliances, consider load-shedding strategies or parallel units.

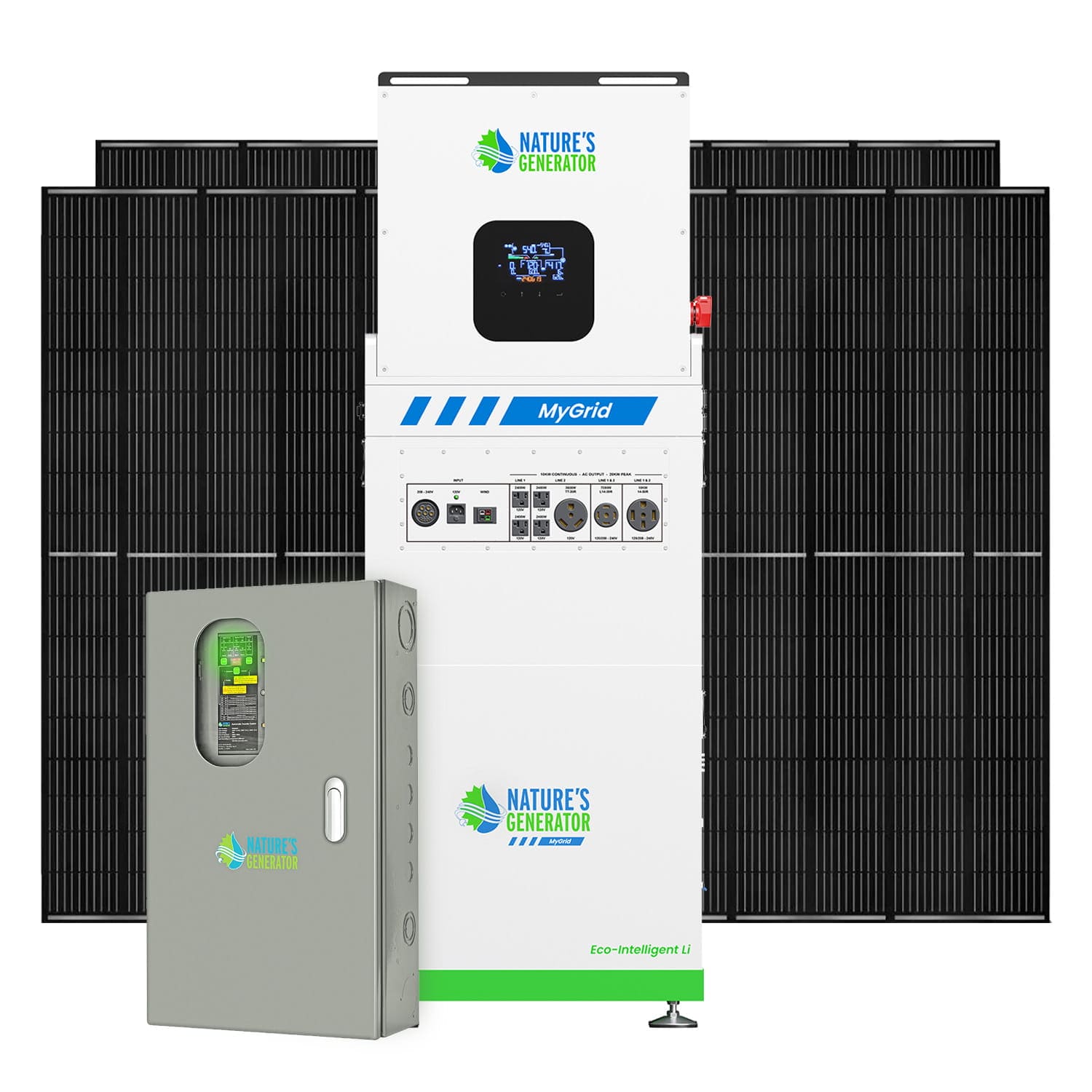

Can I charge with solar panels?
Yes—MPPT solar input supports high-voltage arrays up to 12kW, enabling primary renewable charging and reduced operating costs.
Do I need professional installation?
Yes—certified electrician installation for the automatic transfer switch and 240V connections is recommended to meet local electrical codes and ensure safe operation.
