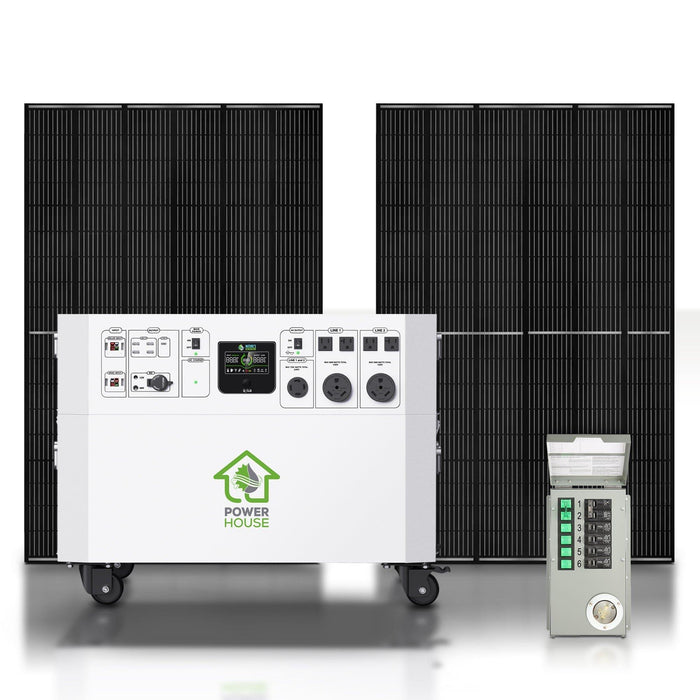

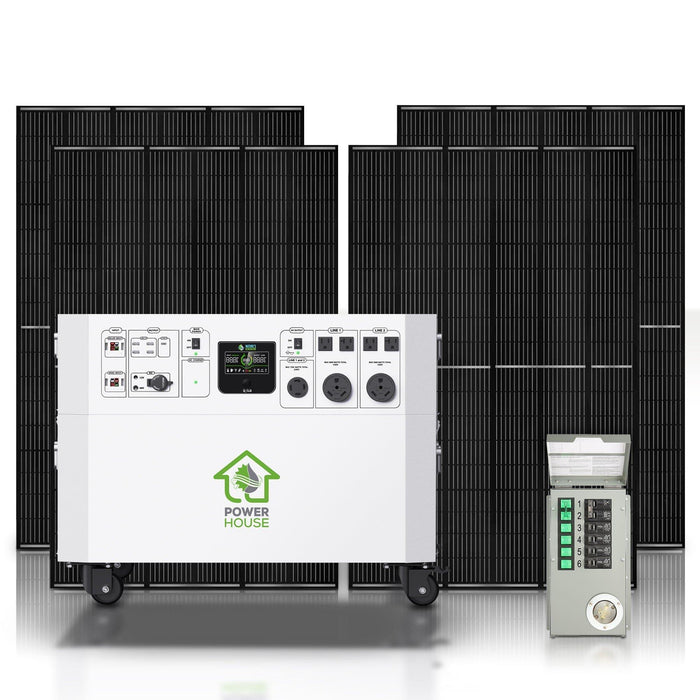

Nature's Generator Powerhouse Platinum Plus 7200W Solar Backup System
$8,849.99
Arrives between [Date] and [Date]

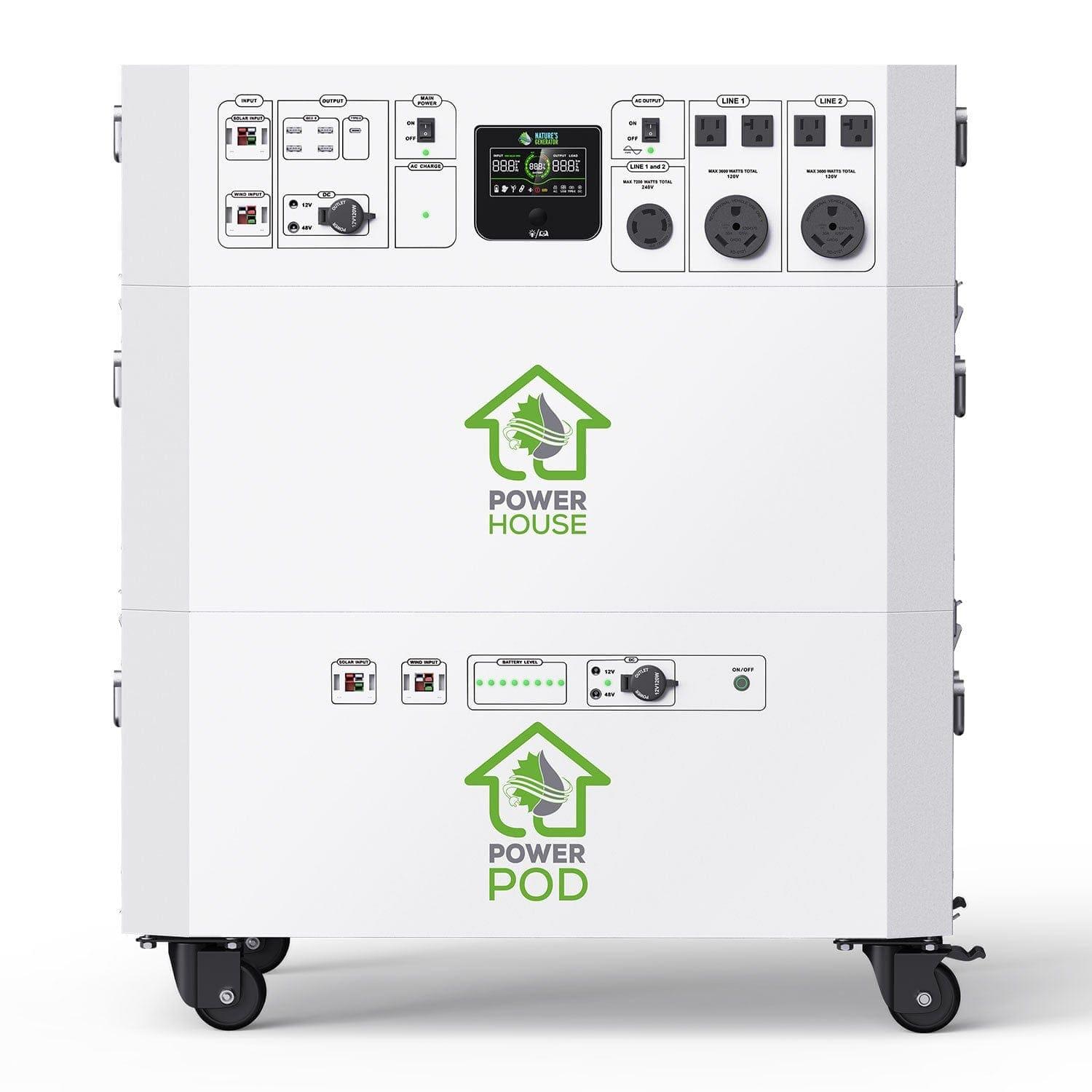

Nature's Generator Powerhouse Platinum Plus PE System — Whole House Solar Battery Backup
The Powerhouse Platinum Plus PE System delivers 7200W pure sine wave power (120V/240V split-phase) with 9600Wh combined battery capacity for reliable whole house backup. Engineered for homeowners and professionals who need uninterrupted power for well pumps, HVAC systems, medical devices, and critical home circuits.
Core Specifications
- Inverter output: 7200W maximum (2 × 3600W 120V lines or 240V split-phase), 60Hz pure sine wave
- Battery capacity: 9600Wh total using sealed AGM lead-acid modules (48V 100Ah per module)

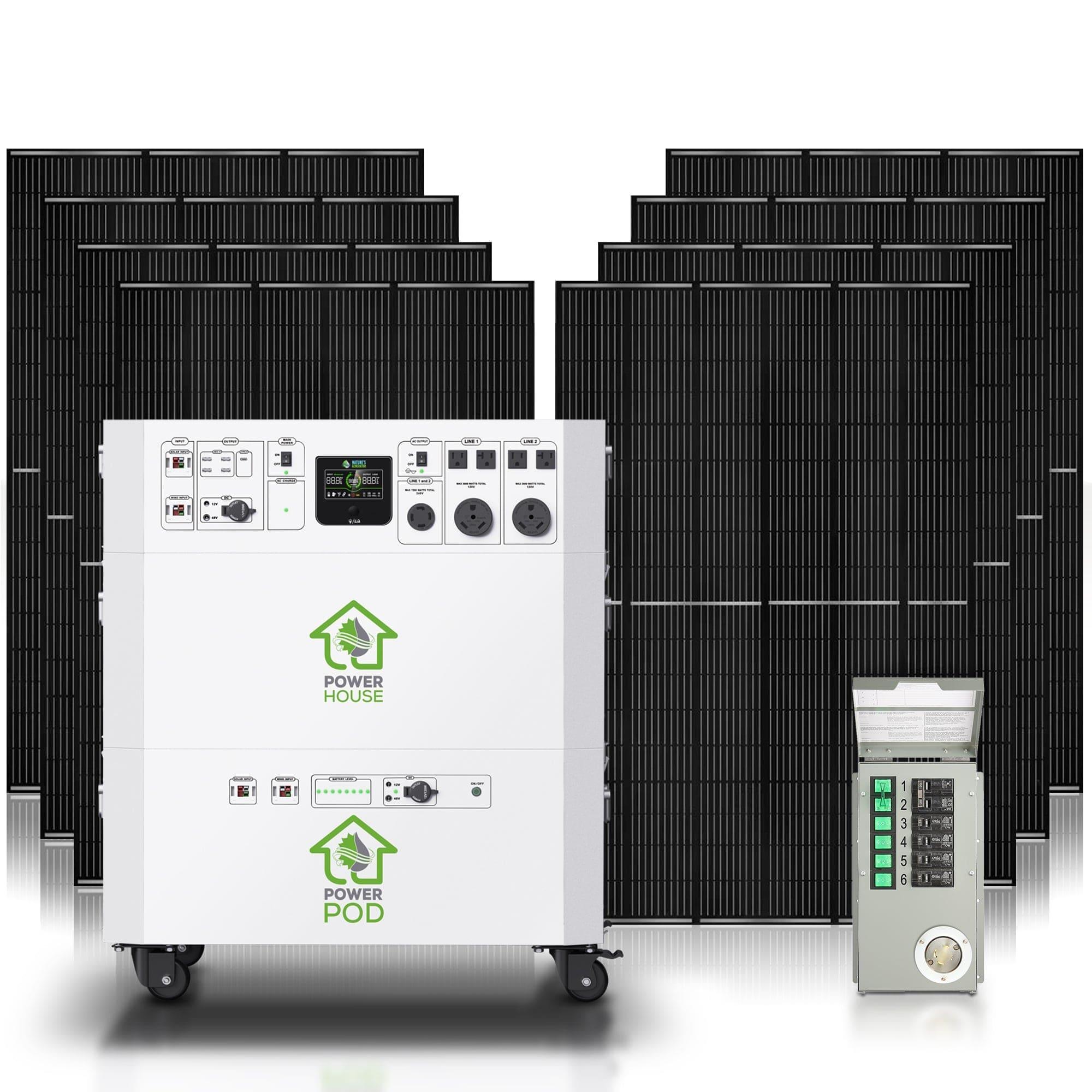

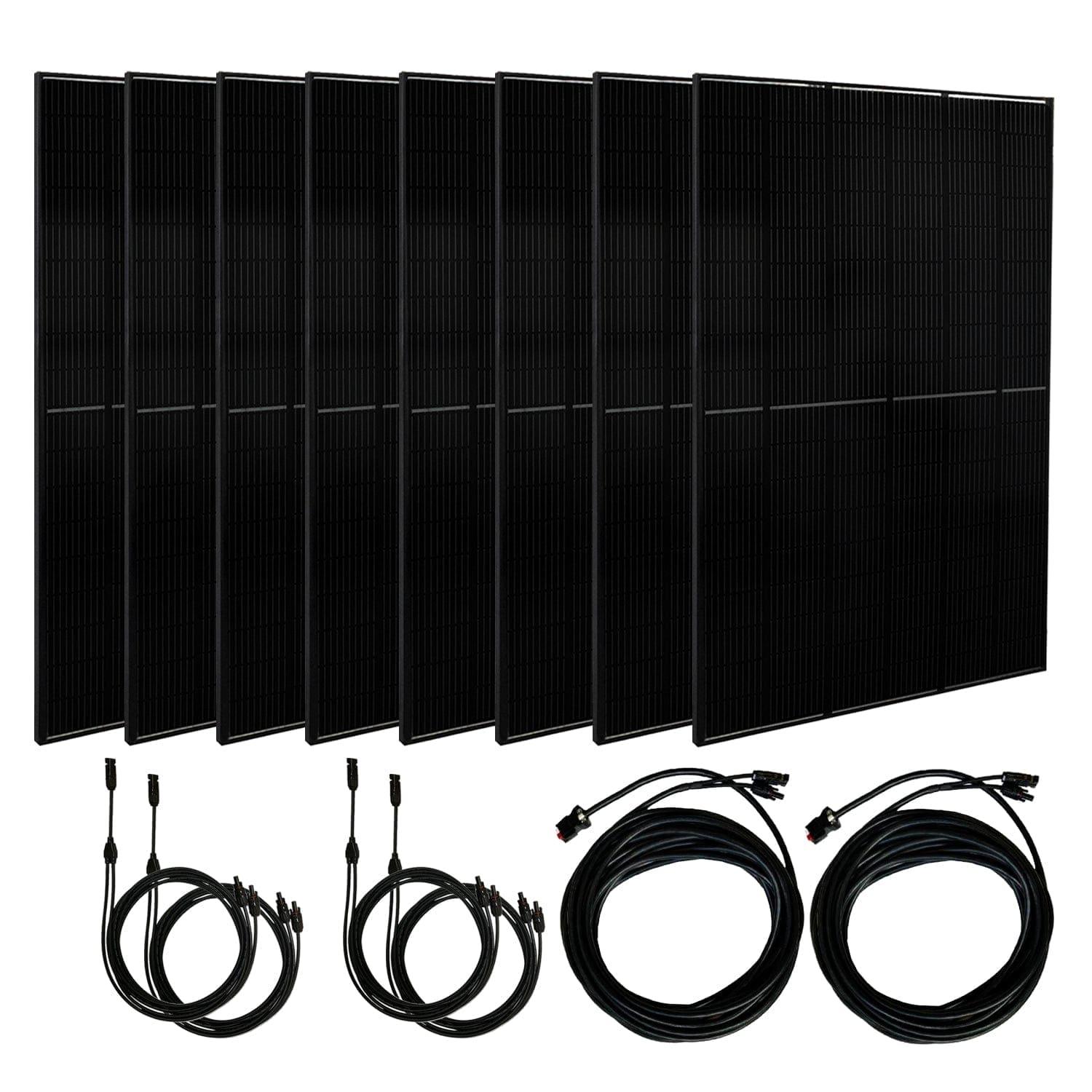

- Solar input: 2000–4000W capability with 4–8 × 410W Mono PERC panels

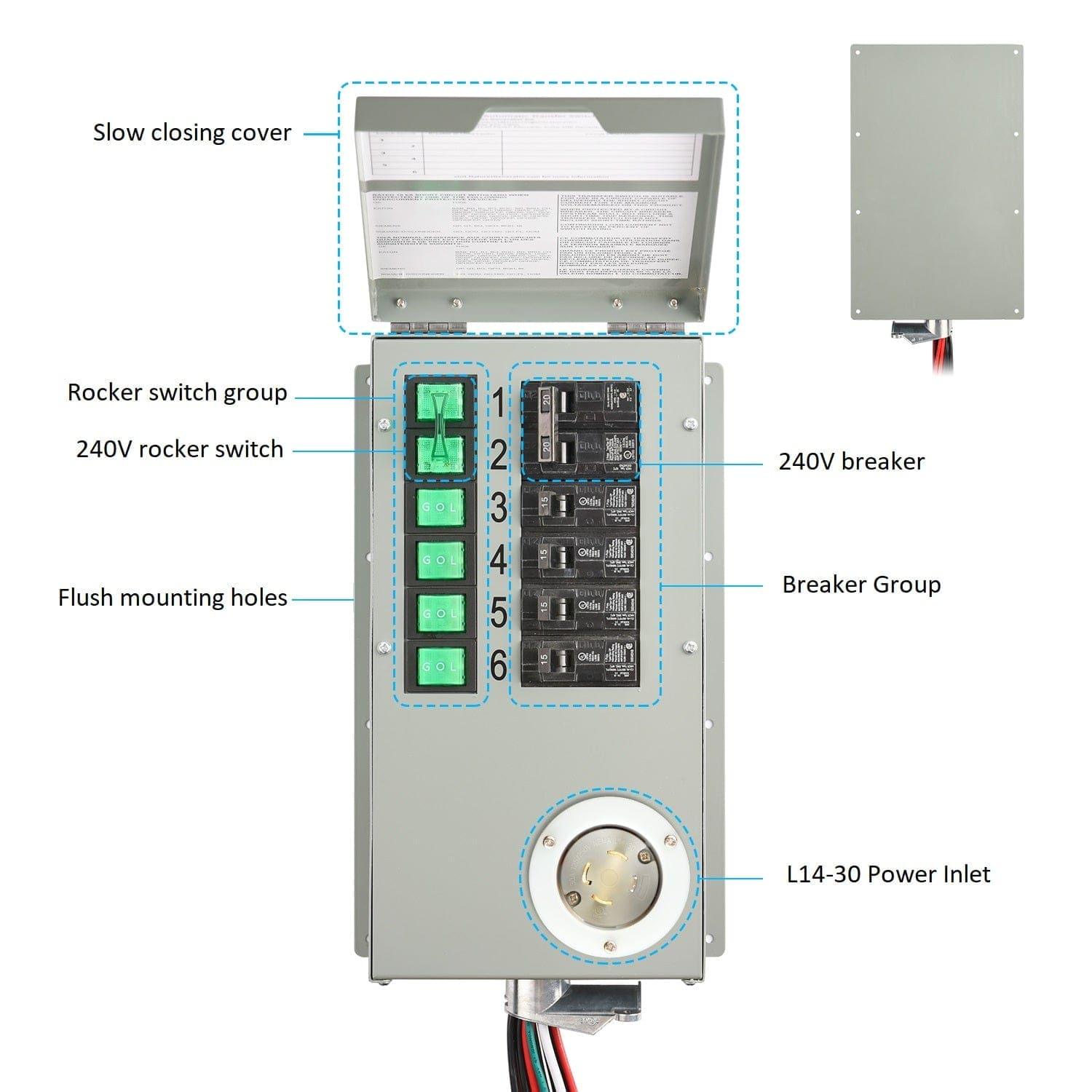

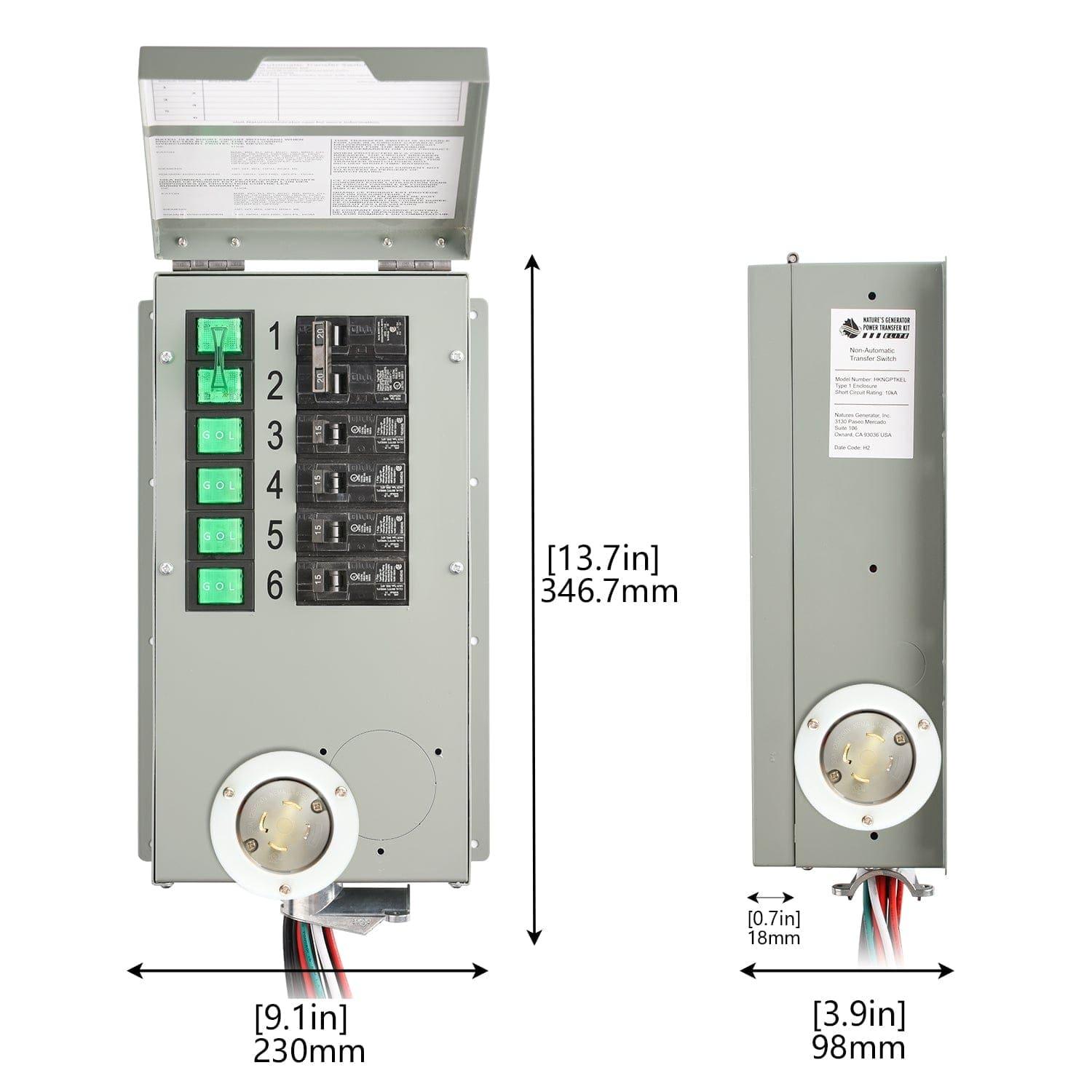

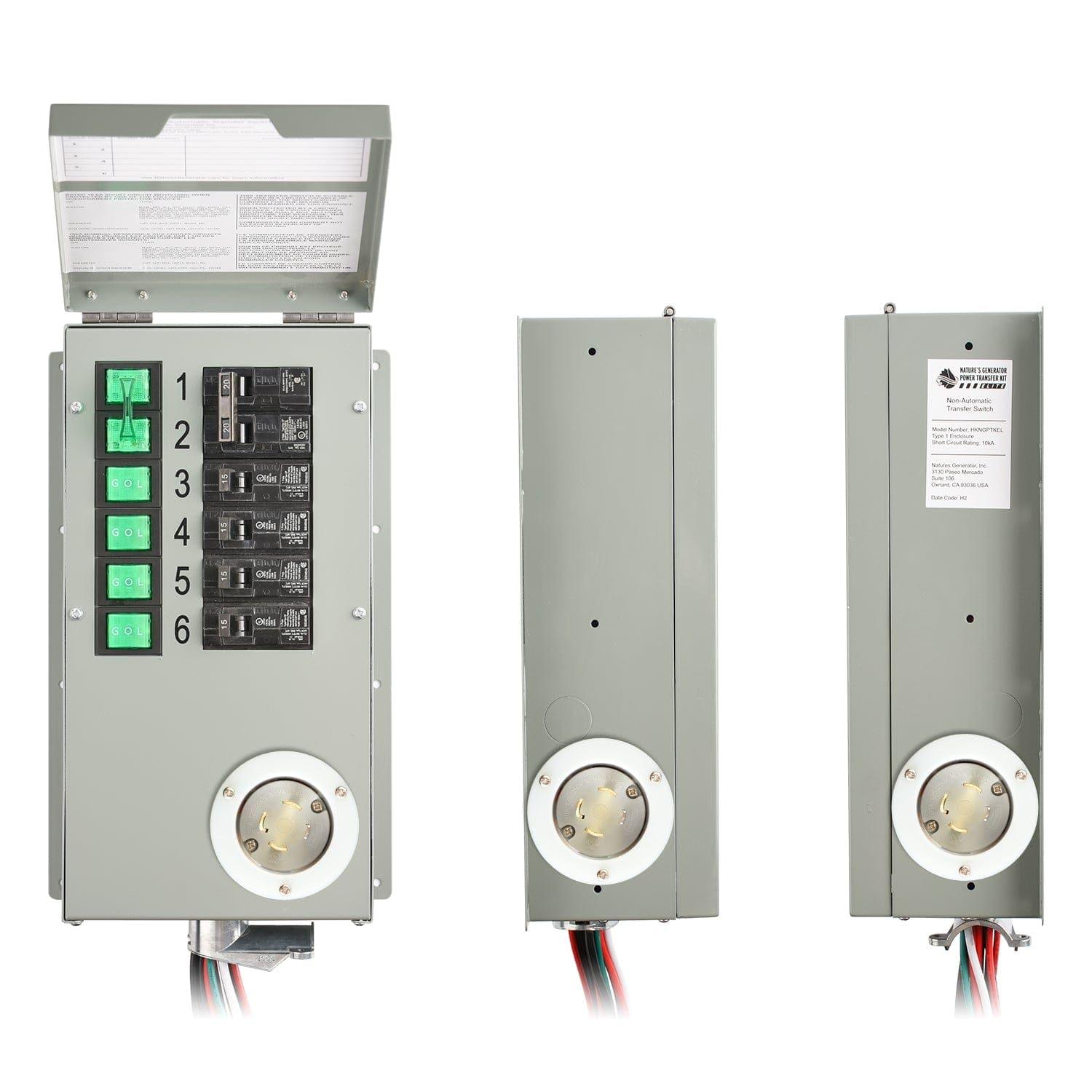

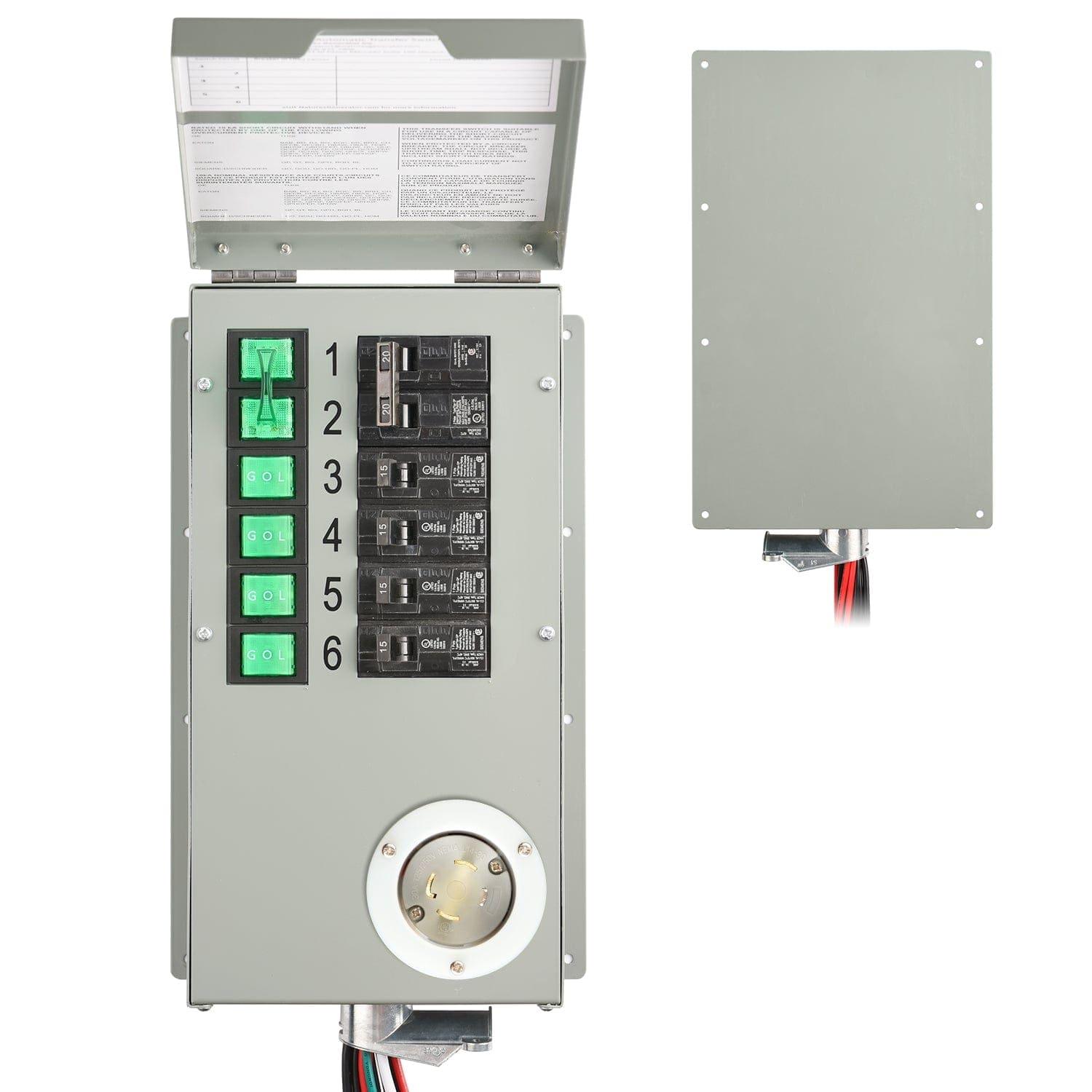

- Transfer panel: 240VAC 6-circuit Powerhouse Transfer Kit included

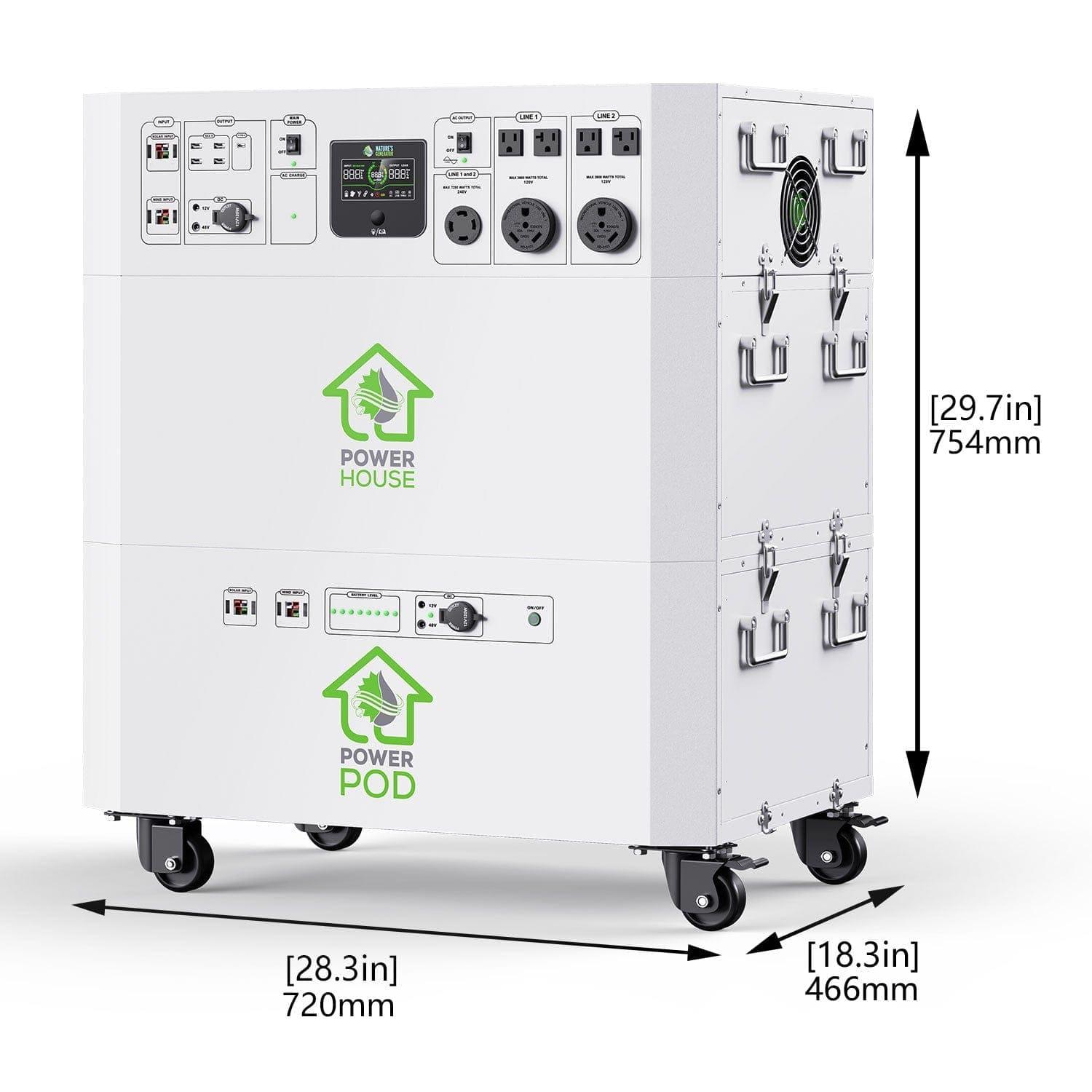

- Dimensions: 28 × 18 × 22.36 in (with wheels) | Weight: ~434 lbs
Why This System Works for Home Backup
Unlike gas generators, this system runs refrigerators, well pumps, HVAC equipment and medical devices without noise, fumes, or weekly maintenance. The pure sine wave output protects sensitive electronics and reduces installation complexity for appliances with motors or digital controls.

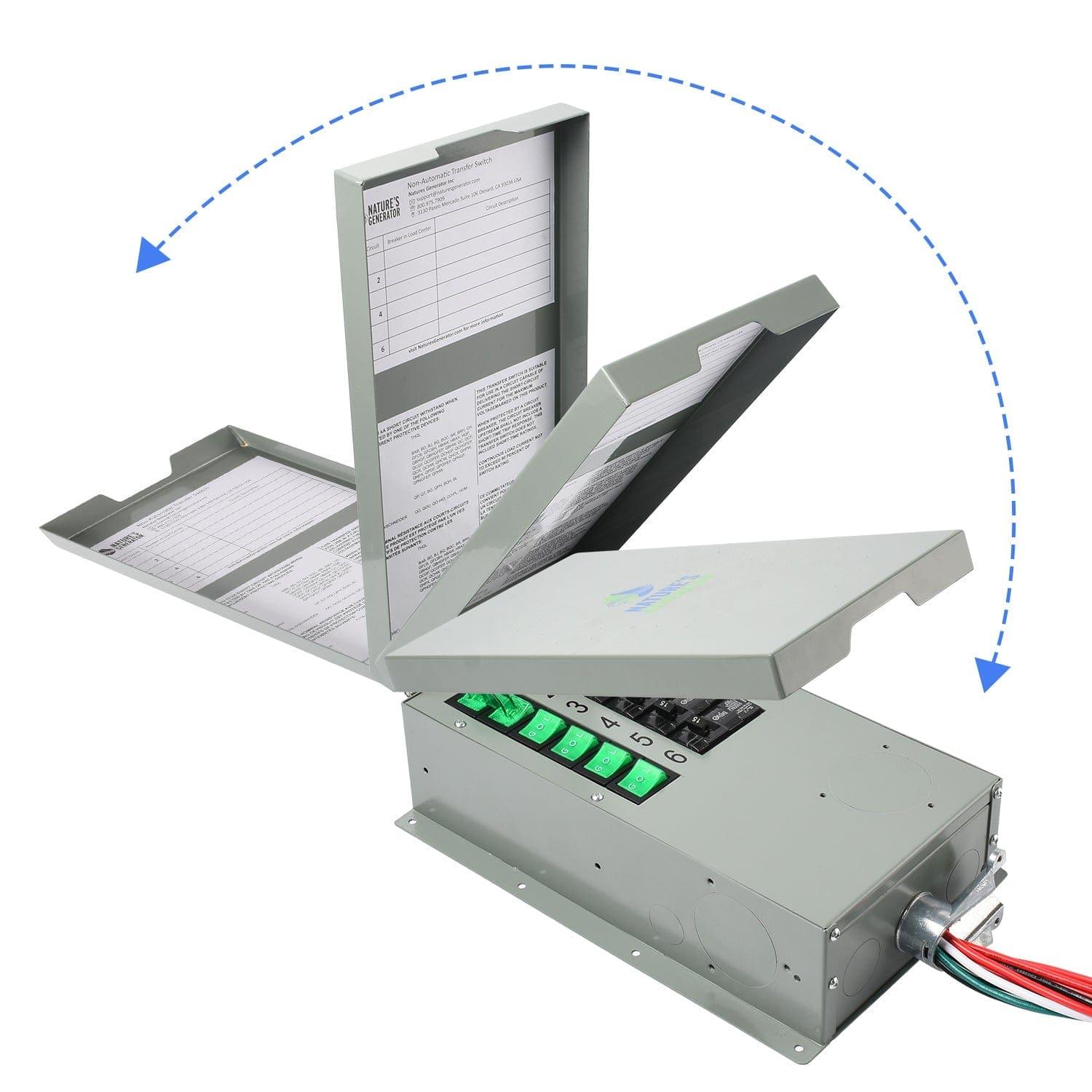

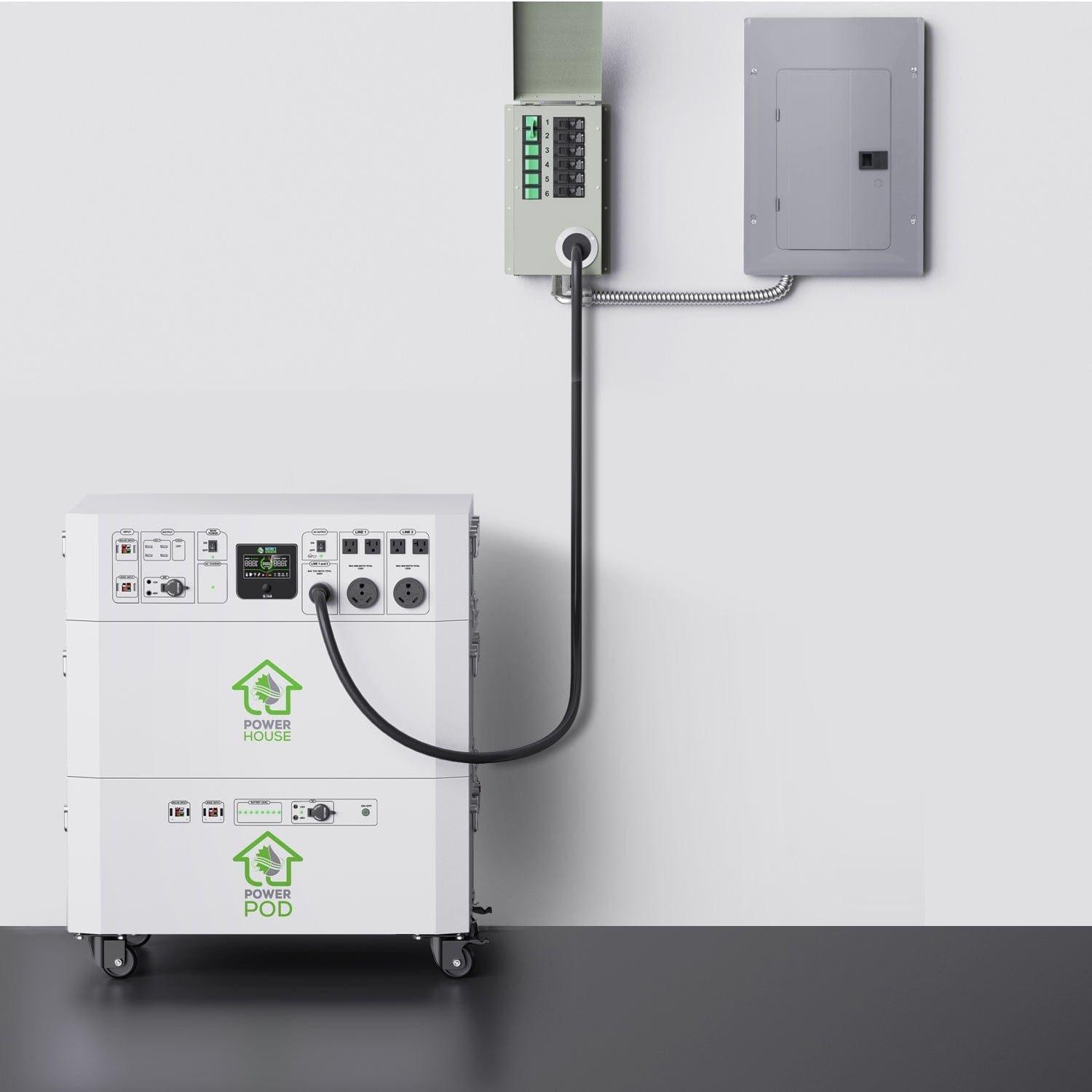

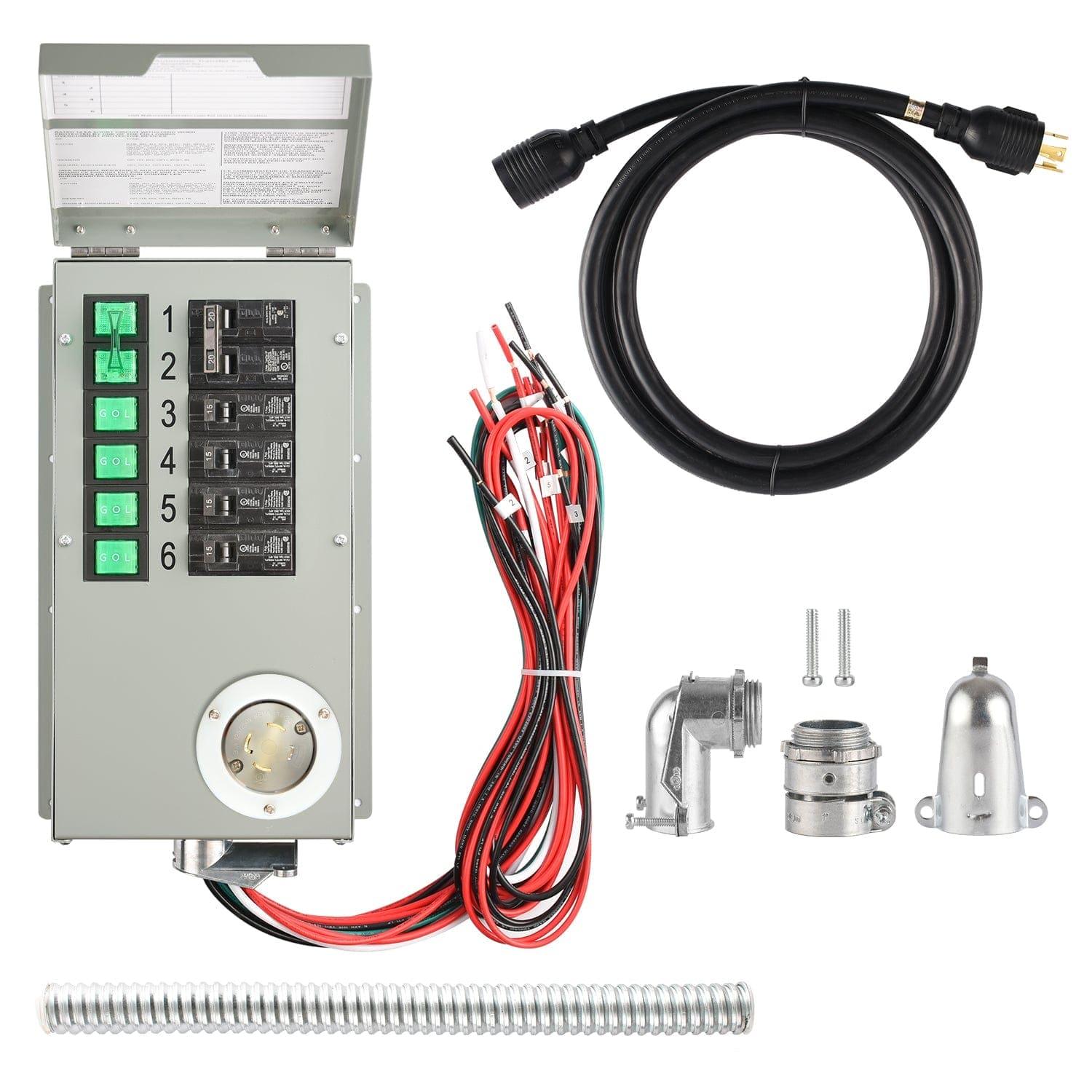

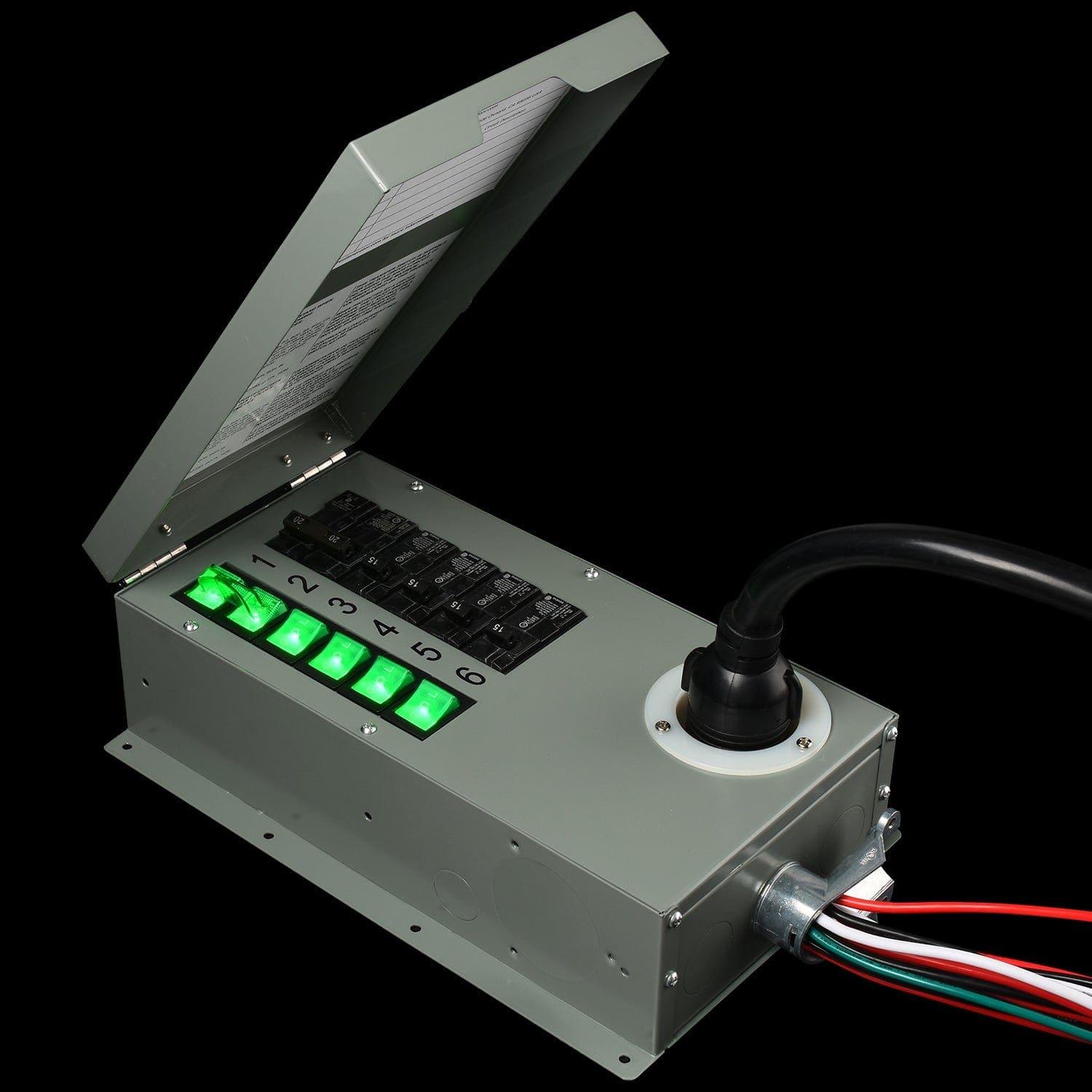

The included 6-circuit transfer kit enables safe connection to your home's electrical panel. Professional installation by a certified electrician ensures code compliance and proper load balancing across critical circuits.
Solar-Ready Expandable Design

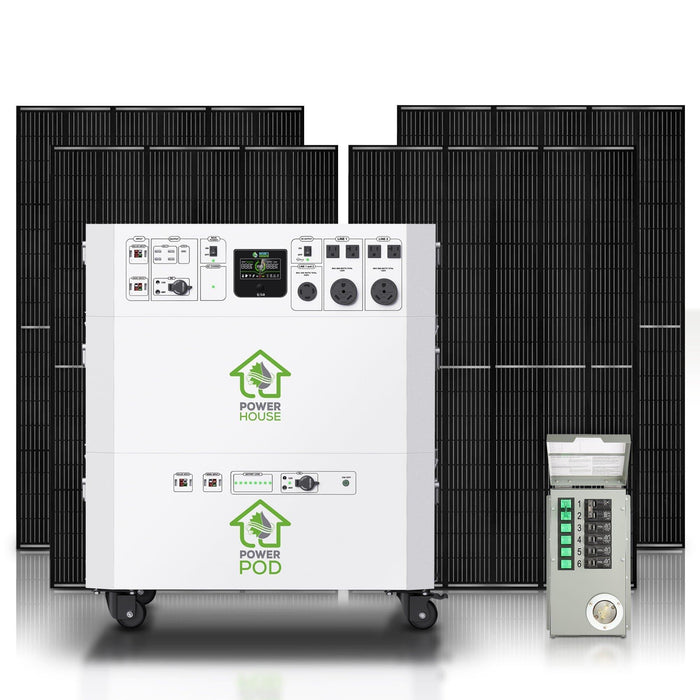

The system accepts up to 4000W solar input through high-efficiency 410W Mono PERC panels with anti-reflection tempered glass and IP68-rated junction boxes. Add Power Pods to increase battery capacity or additional panels to boost solar charging — ideal for extended outages or off-grid applications.
Multiple Output Options

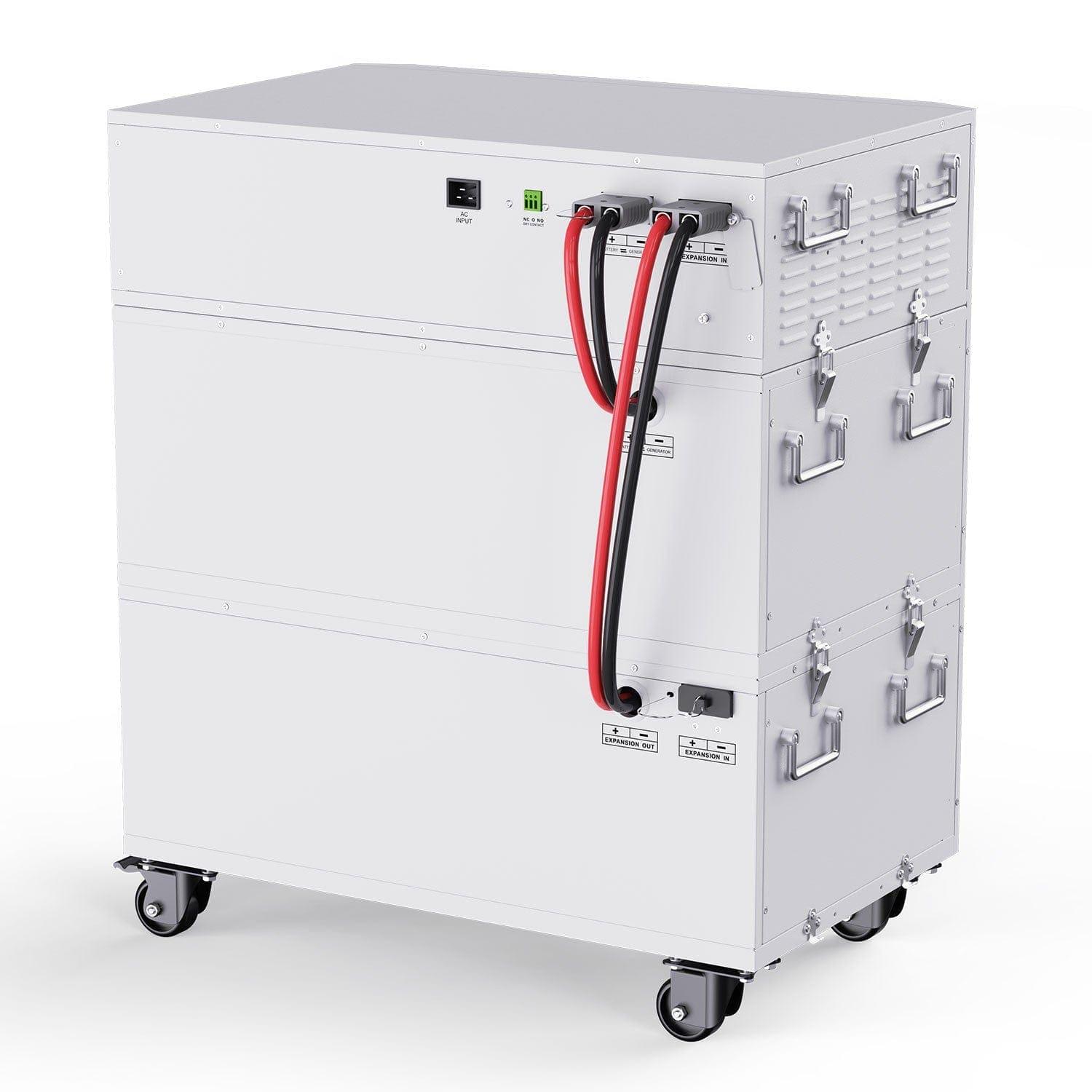

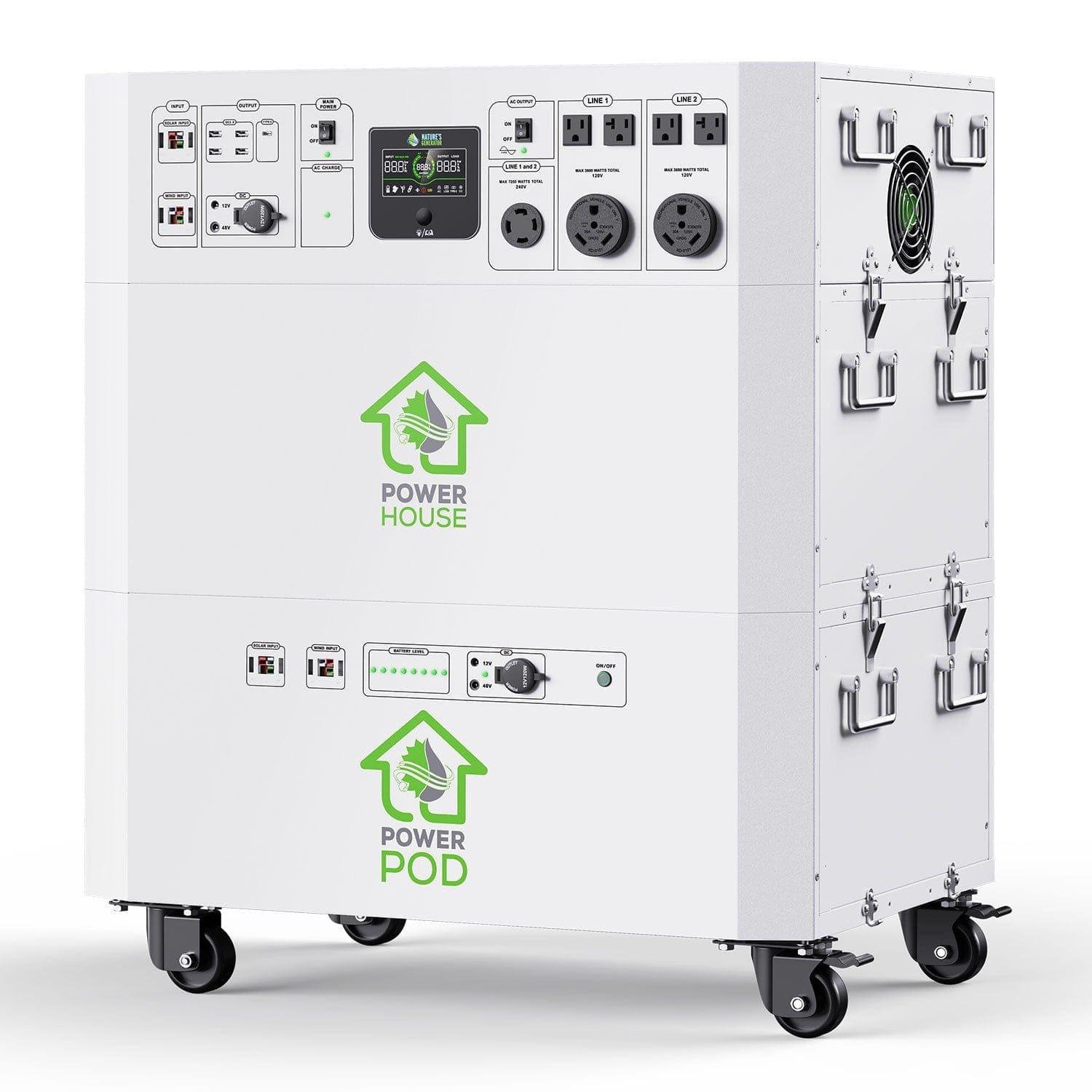

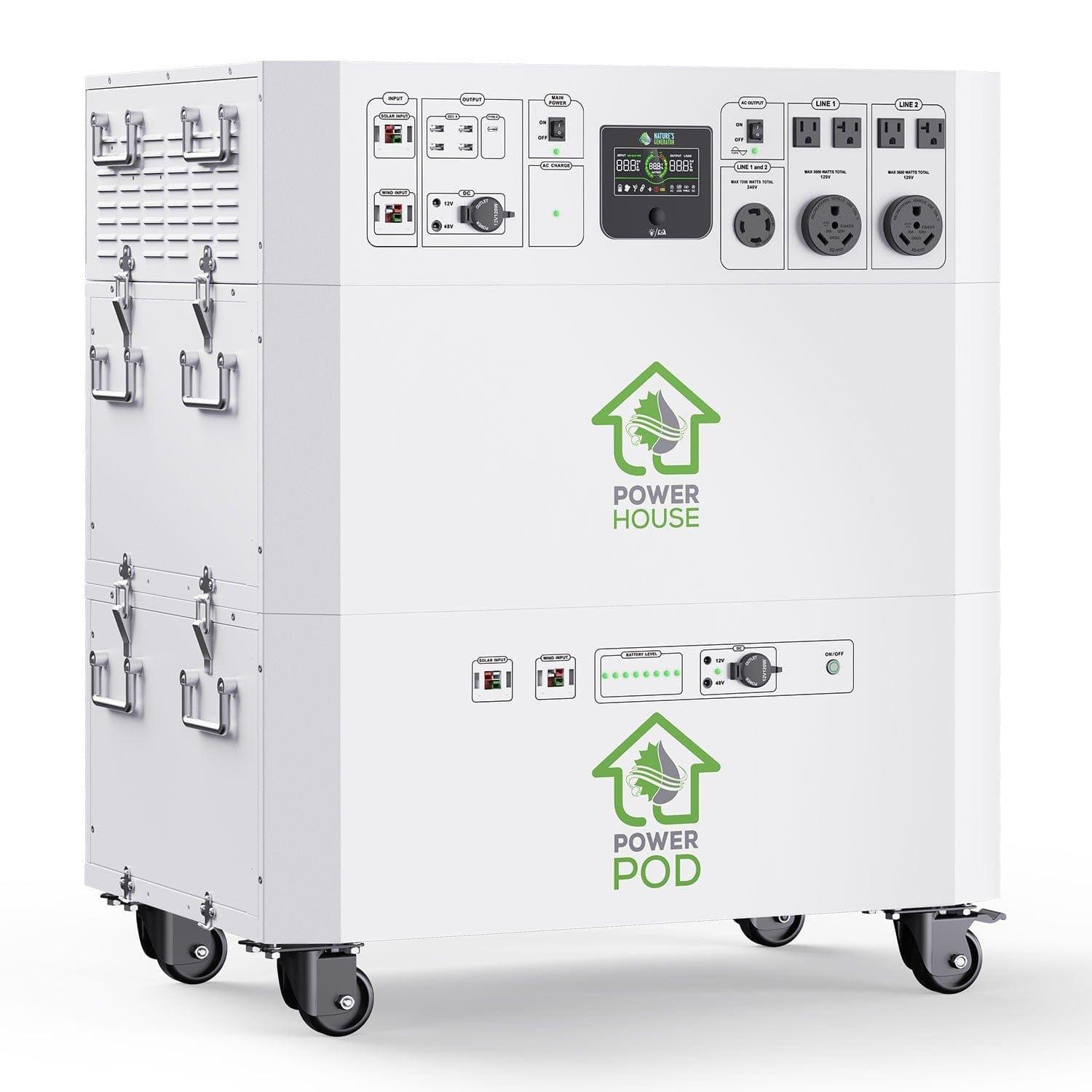

Comprehensive port selection includes 120V/240V outlets, USB-A/C ports, 12V DC connections, and expansion ports with 350A fuse protection. LED state-of-charge display provides real-time battery monitoring.
Technical Details
- AGM sealed lead-acid battery modules (maintenance-free)
- Solar panels: 1724 × 1134 × 35 mm per panel
- Locking caster base for mobility
- Anodized aluminum solar frames
- UL/IEC-class rated solar modules
Common Questions
Can this run my well pump and HVAC?
Yes — the 7200W split-phase inverter supports high-startup loads like 2HP well pumps and many HVAC systems. Confirm individual appliance starting amps with a technician for full-load planning.
Is professional installation required?
Professional installation is strongly recommended. The 6-circuit transfer kit and 240VAC connections should be installed by a certified electrician to meet local code and ensure safe operation.
How long will the batteries last in an outage?
Runtime depends on load. Typical refrigerator and essential circuits can run many hours to days. The system is solar- and wind-ready to extend runtime indefinitely when paired with renewable inputs.
Built with UL/IEC-class rated components and designed for electrician installation. Ships with manuals, Power Transfer Kit, and access to professional installation recommendations. Warranty and service plans available through Nature's Generator-authorized channels.
