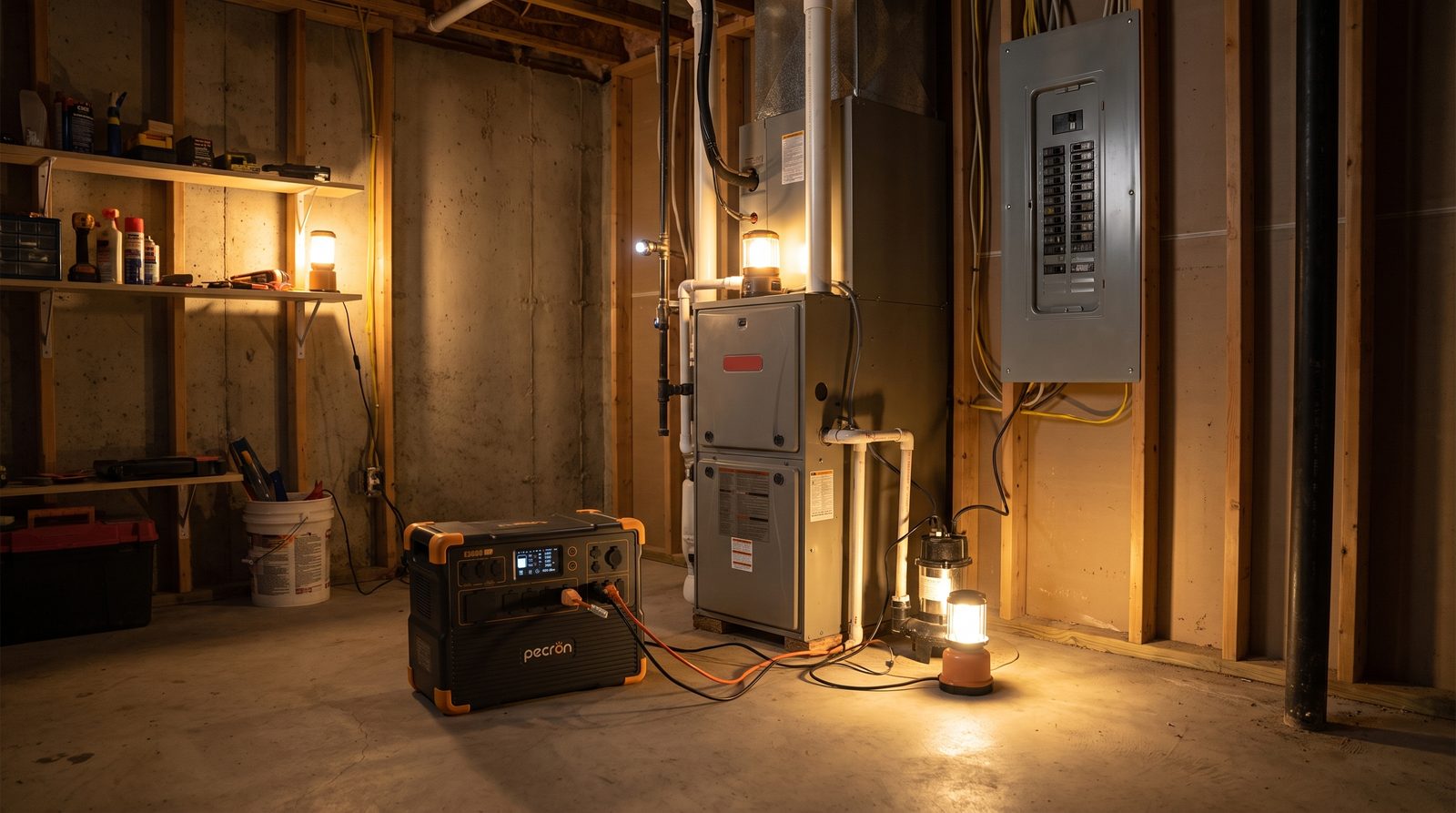

3,600 watts and 3,072Wh of LiFePO4 power, ready the moment the grid goes down. A 7,000W surge ceiling is what lets it start motor-driven loads, not just run them.
Why surge is the number that matters
Motors do not draw their running wattage at startup. They pull a brief spike, typically two to three times their running watts, to overcome inertia. Almost everything that matters in an outage is motor-driven: your refrigerator, your freezer, your furnace blower, your well pump. Size a unit to the running load alone and it can trip at the moment it is needed.
The E3600LFP runs at 3,600W and surges to 7,000W, roughly double the headroom. It starts the motors that trip smaller units.
How far the E3600LFP expands
The E3600LFP starts at 3,072Wh and grows by adding expansion batteries. There are two expansion paths and they reach different ceilings. Both figures are correct; they describe different batteries, not a contradiction.
-

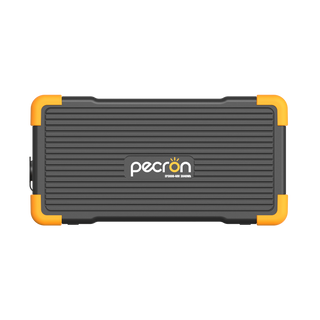

EP3800-48V (3,840Wh each): four batteries take the system to 18,432Wh. This is the path we stock, and the one we recommend.
-

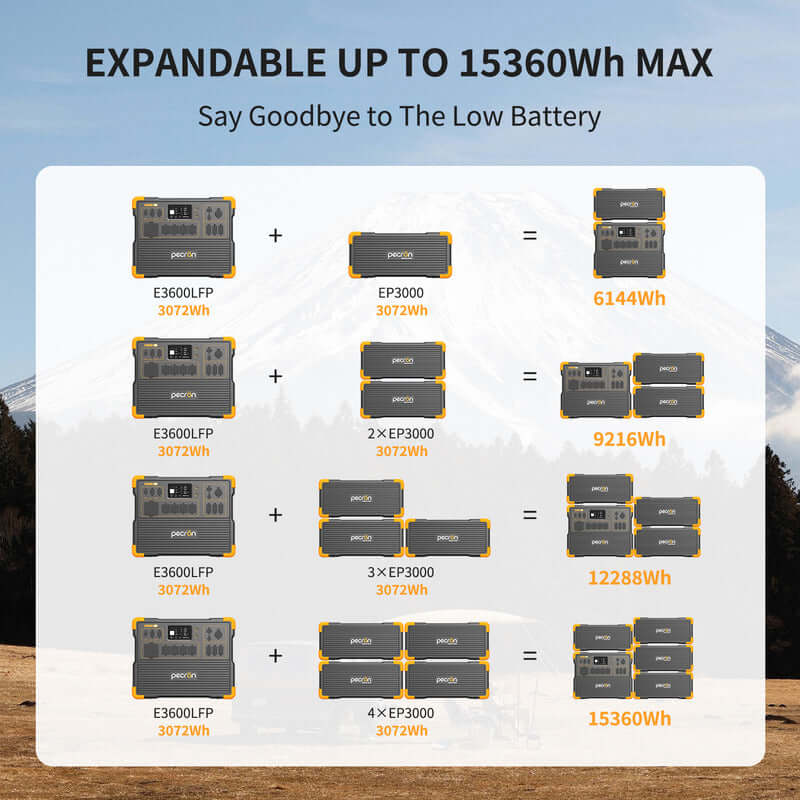

EP3000-48V (3,072Wh each): four batteries reach 15,360Wh.
Add capacity as your needs grow rather than buying it all up front. See the EP3800-48V expansion battery.
Good to know before you buy

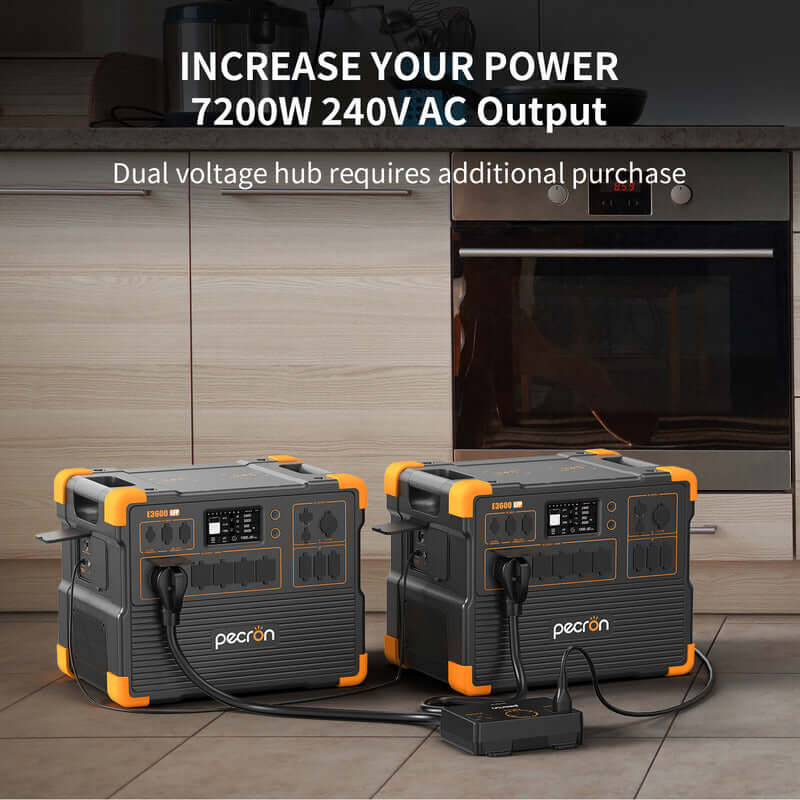

- A single unit is 120V. Reaching 7,200W at 240V requires two units plus the Double Voltage Hub, sold separately.
- Silent and emission-free, so it is safe to run indoors.

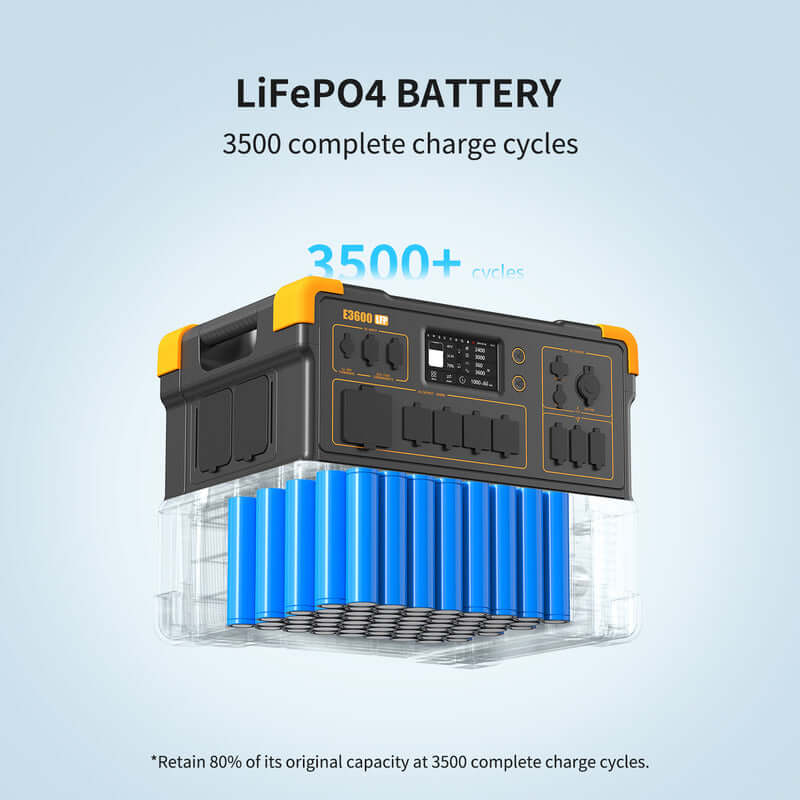

- LiFePO4 cells are rated for 3,500+ cycles to 80% capacity.
Specifications

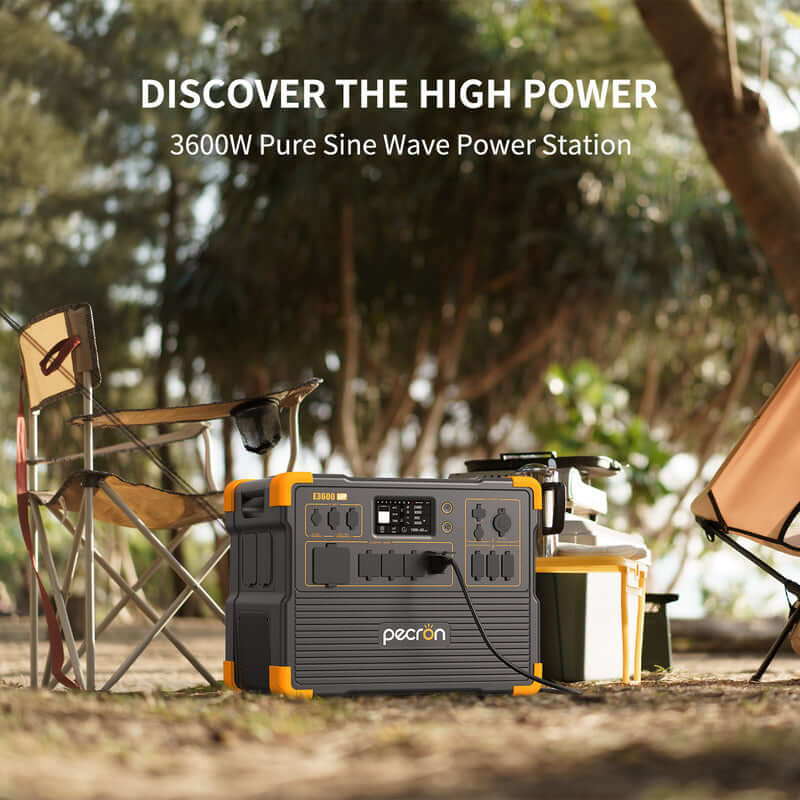

| Continuous AC output |
3,600W pure sine |
| Surge output |
7,000W |
| Capacity |
3,072Wh LiFePO4 |
| Cycle life |
3,500+ cycles to 80% capacity |
| UPS switchover |
8 to 20ms |

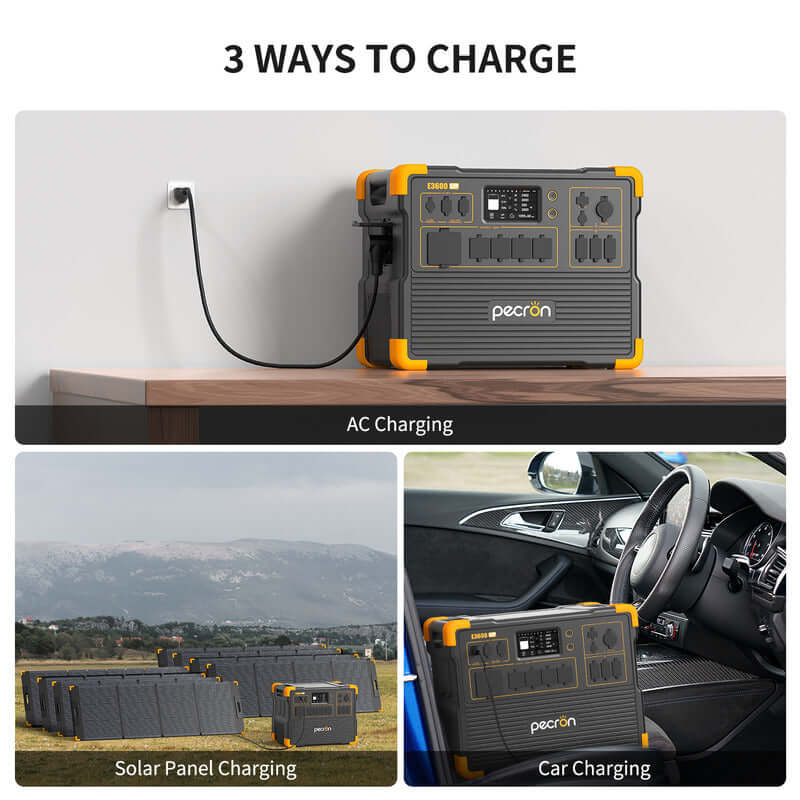

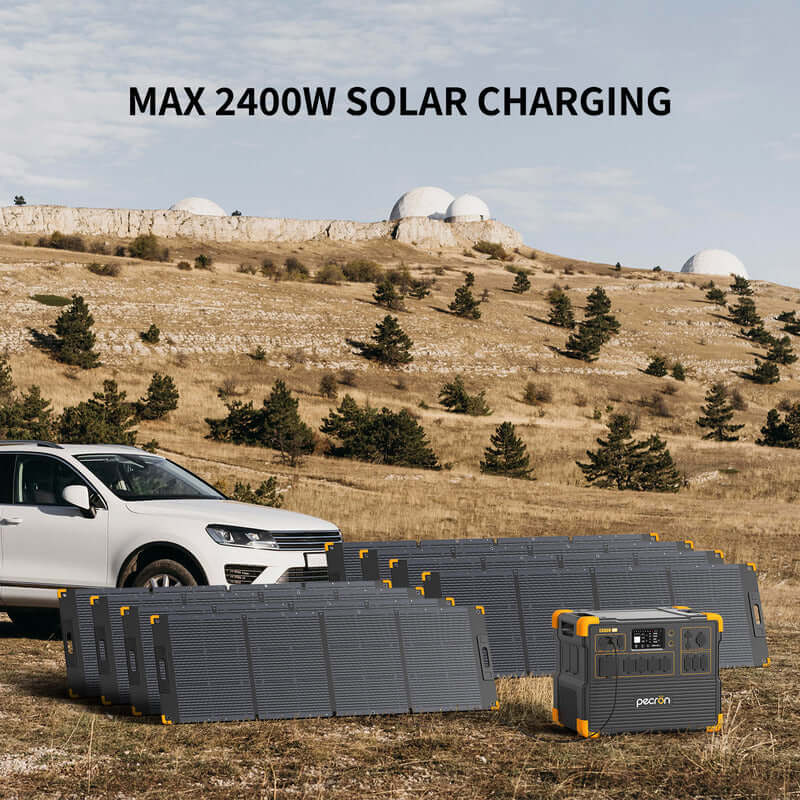

| Solar input |
2,400W max across two XT60 inputs, up to 1,200W per port |
| AC recharge |
About 1.3 hours on a 30A circuit. About 1.8 hours on a standard 15A outlet. |

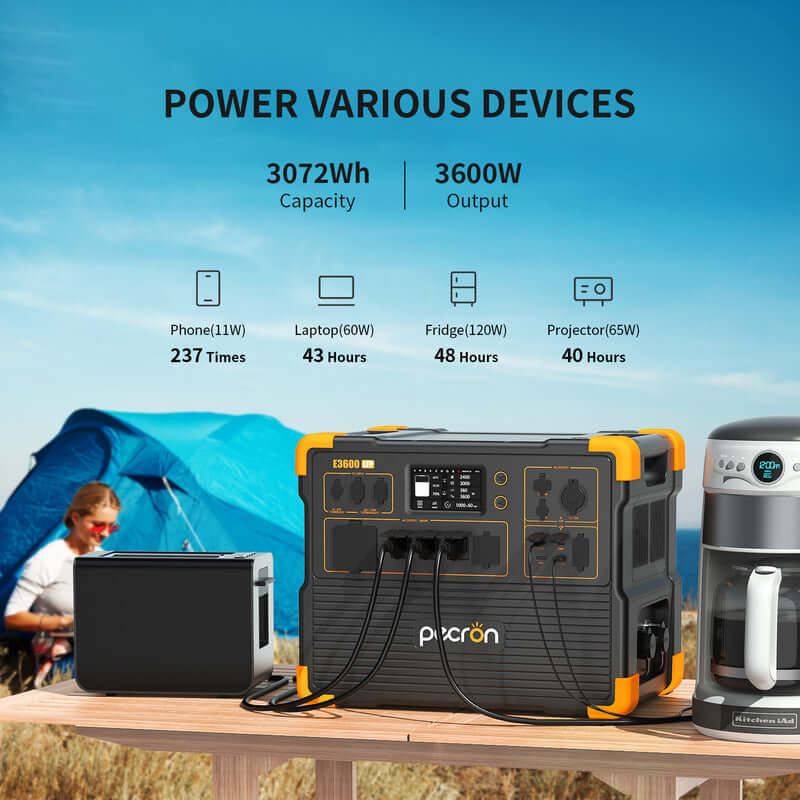

| Outputs |
16 total: 4x AC, TT-30 RV, 4x USB-A, 2x 100W USB-C, XT60, cigar, DC5525 |
| Expansion |
Up to 18,432Wh with four EP3800-48V batteries |
| Weight |
79 lb (36 kg) |
| Dimensions |
17.5 x 12.1 x 13.8 in |
| Warranty |
2 years standard |

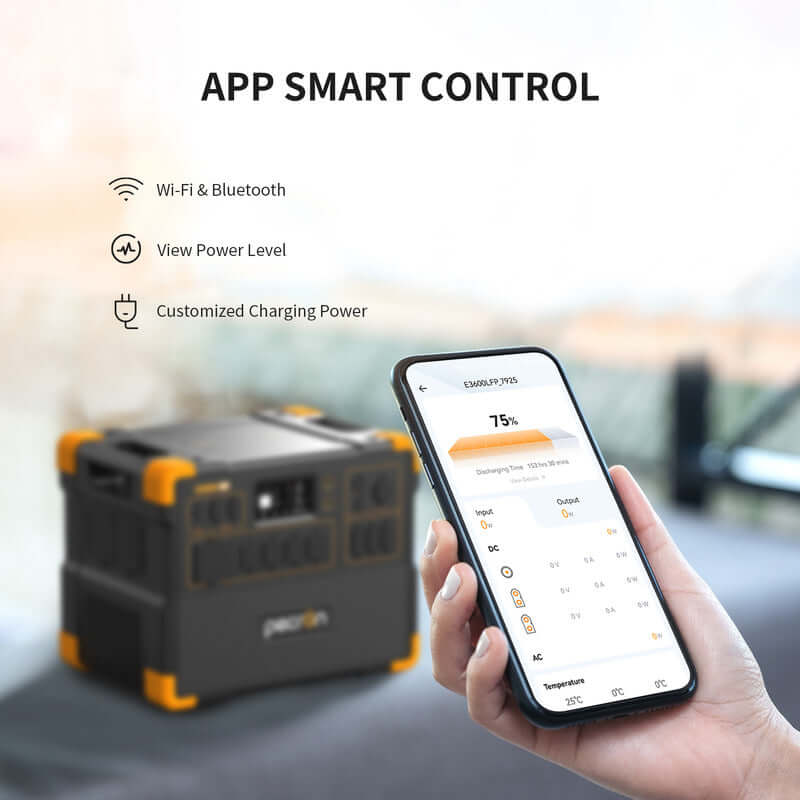

| App |
WiFi and Bluetooth |
Questions before you buy? Reach our team at orders@mightygenerators.com.
