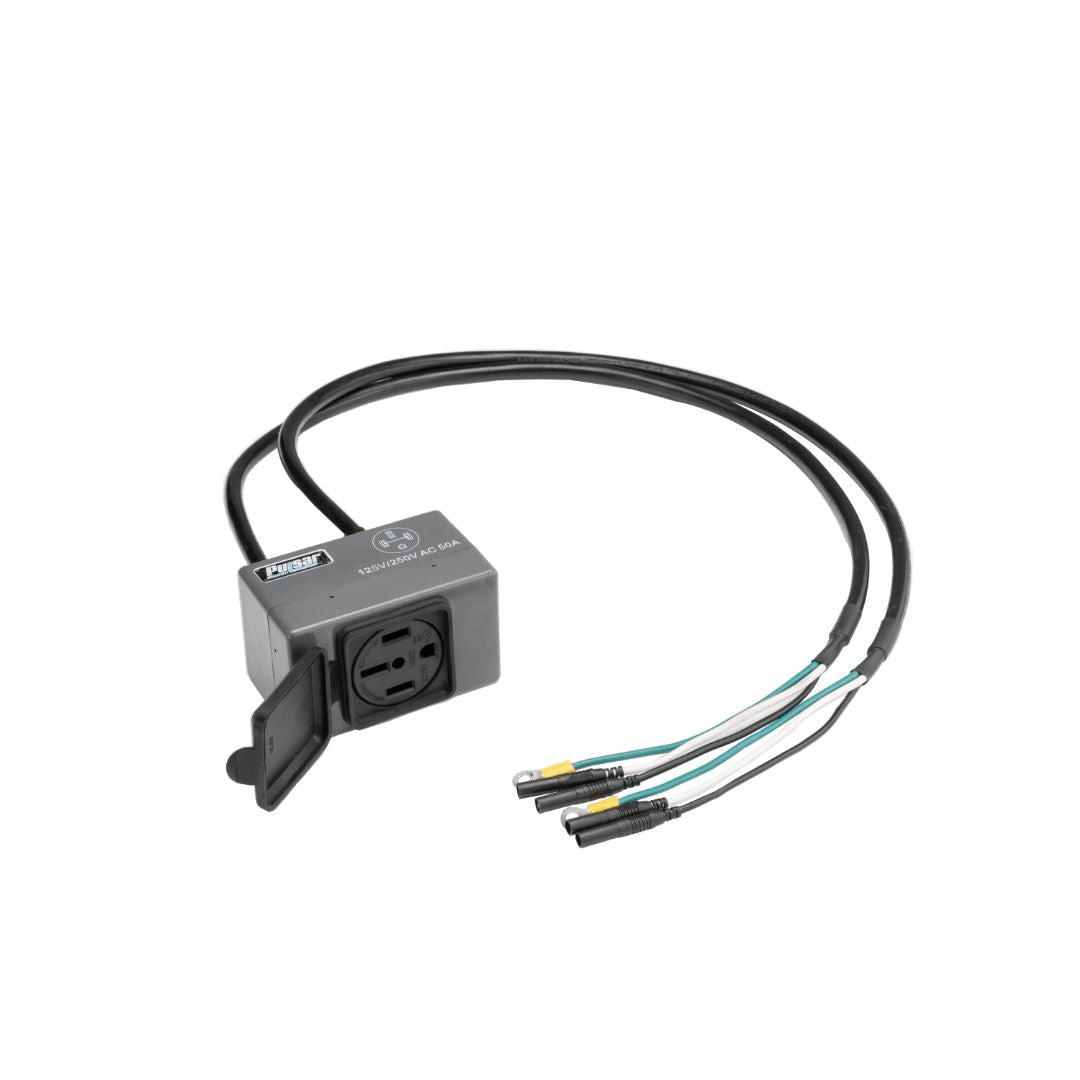

Pulsar PGiPAIRB3 50-Amp Parallel Kit for Linking Two 2500 to 4500 Watt Inverter Generators - Double Your Power Output

Running One Pulsar Inverter Generator and Still Coming Up Short on Power?

You've got a quality inverter generator, but one unit just isn't cutting it. The RV air conditioner, the power tools on the job site, the essential appliances during an outage, they're all competing for watts you don't have. Running a single unit at or near its ceiling shortens its life, and the frustration of load-shedding in the middle of a trip or a project is real.

The fix isn't buying a massive, heavy conventional generator. The Pulsar PARALLEL BOX KIT 50A RV (model PGIPAIRB3) lets you link two compatible Pulsar inverter generators together, effectively doubling your available output through a single, clean 120/240V connection, without adding the bulk or roar of a bigger machine.

• Double your output: Combine two compatible Pulsar inverter generators to reach up to 50 amps of combined power, enough to run an RV A/C, large appliances, or demanding tools simultaneously.
• 240V capability: The NEMA 14-50R outlet delivers both 120V and 240V AC at 60Hz, giving you flexibility that a single small inverter generator simply can't match.
• RV-ready connection: The NEMA 14-50R is the standard 50-amp RV receptacle, so you can plug directly into your coach without adapters or rigged workarounds.
• Compact and portable: The parallel box and its 3-foot cable don't add meaningful weight to your kit, you keep all the portability benefits of two smaller generators.
• Broad compatibility: Works with a wide range of Pulsar inverter generator models, including popular units from the G, GD, GX, and PG series.

Features and Performance of the Pulsar PGIPAIRB3 Parallel Kit

The PGIPAIRB3 is purpose-built for Pulsar inverter generators. It's not a generic parallel cable, it's a matched parallel box designed to synchronize two units so they share the load cleanly and safely.

Output is delivered at 120/240V AC, 60Hz, through a NEMA 14-50R outlet. That's the same outlet configuration you'll find at most RV parks and on most range-ready appliances, so integration into your existing setup is straightforward. The 3-foot cable keeps connections tidy and reduces the chance of a tripping hazard around the campsite or worksite.

Because both generators run at a synchronized load rather than one unit straining alone, you also protect your equipment. Even load distribution means less heat, less wear, and longer service life from each machine in the pair.

Ready to stop working around your power limits? Add the Pulsar PGIPAIRB3 to your cart and let your generators do more together than either one ever could alone.

Ideal Use Cases for the Pulsar 50A Parallel Box Kit

This parallel kit is built for situations where one generator isn't enough and a large conventional unit is overkill.

Full-hookup RV camping without a hookup: Run your 50-amp RV just as you would at a campground with shore power. Air conditioning, refrigerator, microwave, entertainment, all at once.

Extended off-grid stays: Cabins, remote worksites, and off-grid homesteads often need more sustained power than a single portable unit provides. Two synchronized generators give you that headroom.

Job site power: Heavy tools, compressors, saws, welders, demand more amperage than a single small inverter can supply. The PGIPAIRB3 pairs two units so you have the output you need without renting or hauling a large generator.

Home emergency backup: During an outage, 50 amps at 240V means you can power critical loads including well pumps, HVAC units, and kitchen appliances that run on 240V circuits.

If you own compatible Pulsar inverter generators and find yourself wishing for more output on a regular basis, the PGIPAIRB3 is the most cost-effective and practical upgrade available. Add it to your order today.

Why Choose the Pulsar PGIPAIRB3 Over a Bigger Generator?

The obvious alternative is trading your current generators for one large conventional unit. That choice comes with real trade-offs: more weight to haul, louder operation, higher fuel consumption at partial load, and a single point of failure. If that big machine goes down, you have nothing.

With the Pulsar parallel kit, you keep the noise-dampened, fuel-efficient performance of inverter generators and you retain redundancy. If one unit needs service, the other still runs. That kind of resilience matters on a long camping trip or during a multi-day outage.

Pulsar has been building power equipment for over a decade, with a reputation for practical engineering and solid warranty support. The PGIPAIRB3 reflects that same philosophy: a focused, well-executed solution to a real problem. It's not overengineered, and it doesn't ask you to replace equipment that's already working well.

You also preserve your investment. Rather than selling two generators at a loss to buy one big one, you simply add this kit and get more from what you already own.

Pulsar PGIPAIRB3 Specifications

Frequently Asked Questions About the Pulsar PGIPAIRB3 Parallel Kit

How much total power can I get when using the Pulsar PGIPAIRB3 with two generators?

The PGIPAIRB3 delivers up to 50 amps at 120/240V AC, 60Hz. The actual combined wattage depends on the rated output of the two generators you're pairing. For example, linking two units rated at 2,300 watts each gives you approximately 4,600 watts of combined capacity, roughly double what either unit produces alone.

Is the Pulsar PGIPAIRB3 compatible with my specific Pulsar generator model?

The kit is compatible with the following Pulsar models: FG2500iS, G150GN, G2319N, G240BN, G450RN, GD400BN, GX400BN, GX400BRN, PG2200BIS, PG2300IS, PG2300ISCO, PG4500BISRCO, PG4500ISR, and PGD40ISCO units with a serial number before 23123. If your model isn't on this list, contact us before ordering so we can confirm compatibility.

Do I need two identical Pulsar generators to use this parallel kit?

The PGIPAIRB3 is designed to pair two Pulsar inverter generators from the compatible model list. While matching models generally produce the cleanest load-sharing results, check your generator owner's manuals and the kit's documentation for guidance on mixing specific compatible models. When in doubt, using two identical units is the most straightforward approach.

Can I use the Pulsar parallel kit to plug directly into my 50-amp RV?

Yes. The PGIPAIRB3 features a NEMA 14-50R outlet, which is the standard 50-amp receptacle used by RVs and 50-amp shore power pedestals. You can connect your RV's 50-amp power cord directly to this kit without needing an additional adapter, making it a practical solution for full-hookup-style power at any campsite.

Will running two generators in parallel with the PGIPAIRB3 affect how long each one lasts?

Running each generator at a shared, balanced load rather than pushing a single unit to its ceiling is generally better for long-term engine health. Inverter generators are most efficient and longest-lived when they're not consistently operating near maximum output. Paralleling distributes demand across two machines, which typically means lower operating temperatures and less wear on each unit individually.

Does Pulsar warrant the PGIPAIRB3 parallel kit?

Pulsar warrants its products against defects in materials and workmanship. For complete warranty terms and conditions applicable to the PGIPAIRB3, refer to the documentation included with the kit or contact Pulsar directly. Still have questions? Contact our power specialists before you order.

Warranty and Support

The Pulsar PGIPAIRB3 is covered by Pulsar's manufacturer warranty against defects in materials and workmanship. Mighty Generators sells genuine Pulsar products, so you can buy with confidence that your kit is the real thing backed by the manufacturer's support. If you have questions about setup, compatibility, or your specific application, our team is here to help before and after your purchase.
