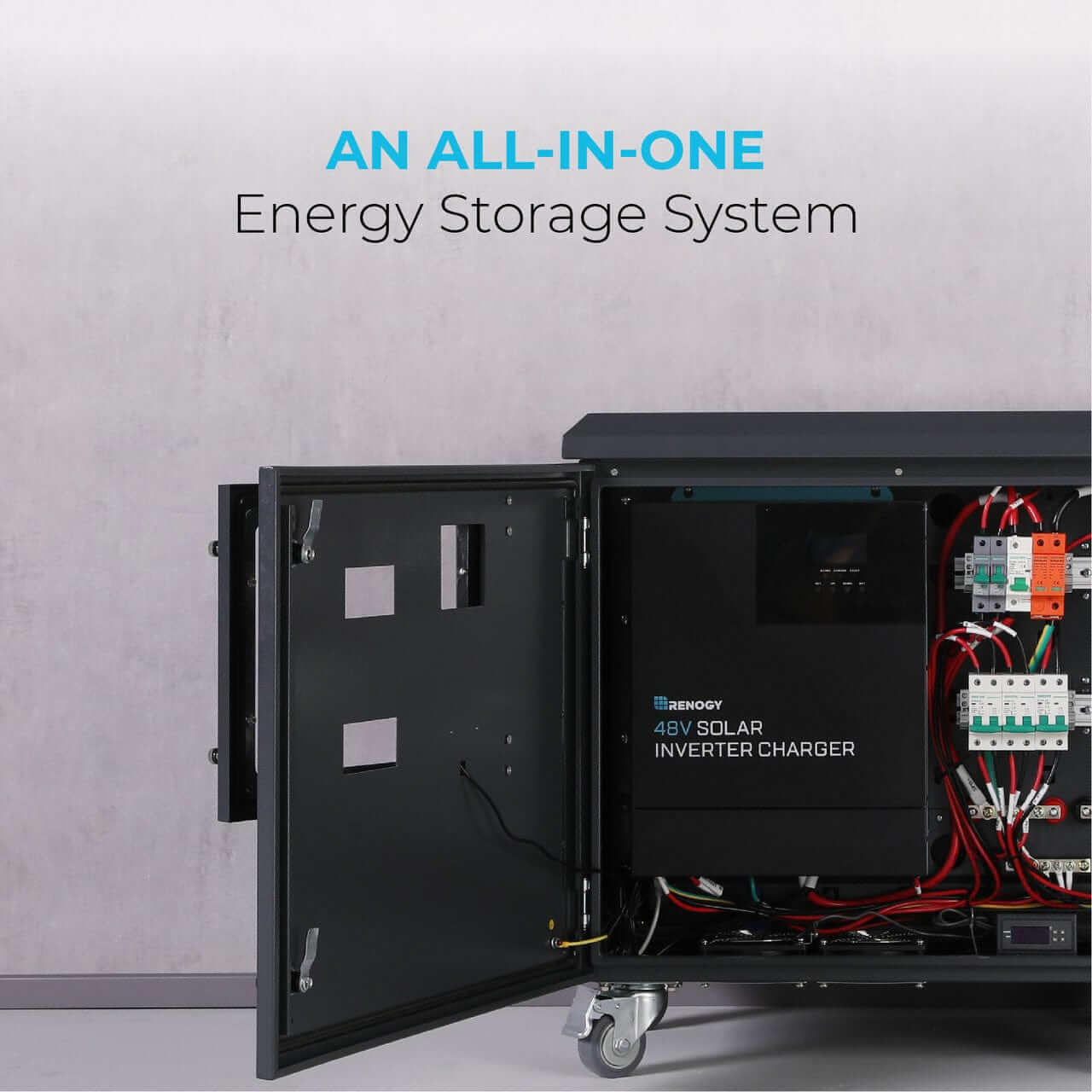

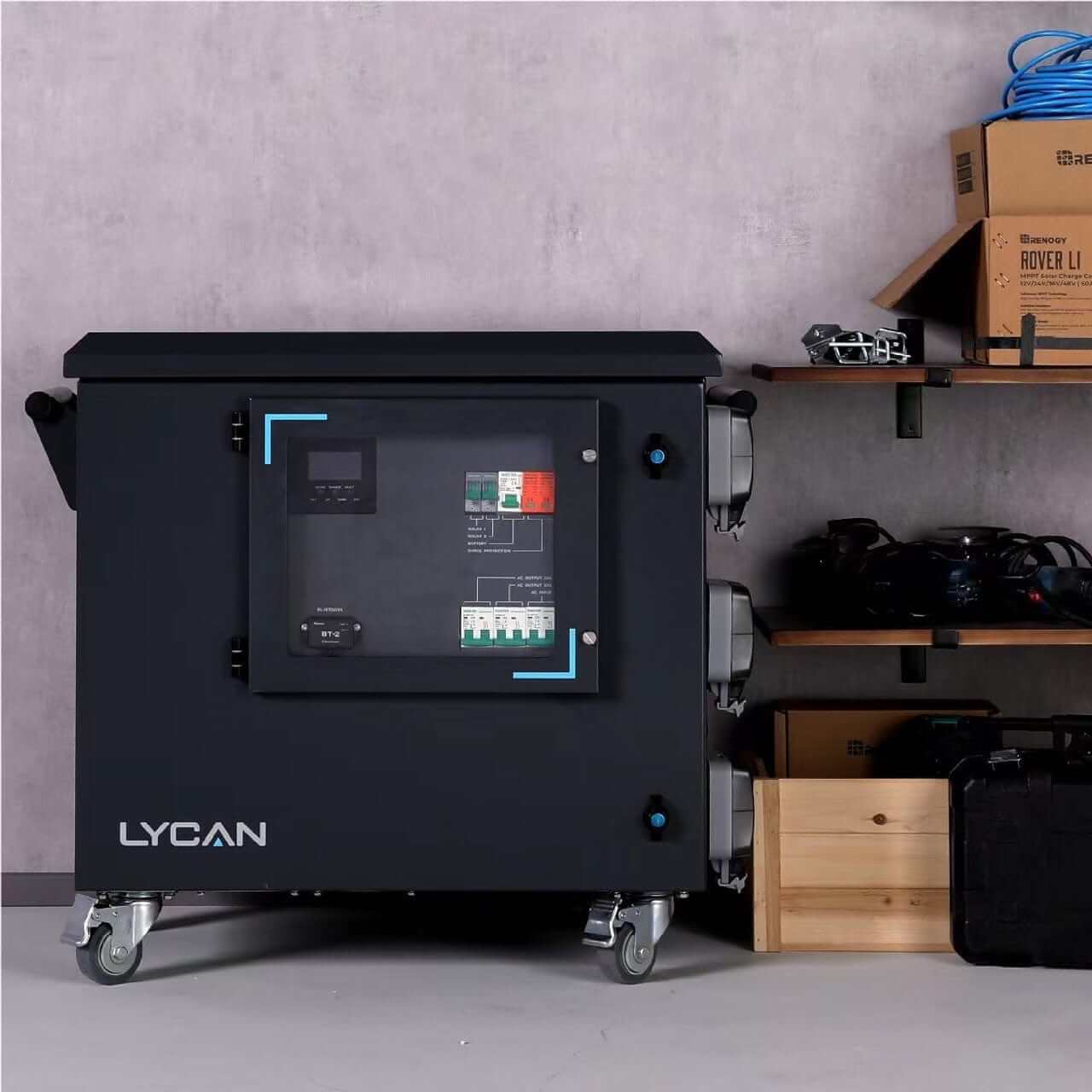

The Lycan 5000 Power Box is the ultimate all-in-one solution for home energy backup and off-grid living. With a versatile capacity range from 4.8kWh to 19.2kWh, it can be expanded to suit your needs. Its plug-and-play installation makes setup a breeze, while the DC-Home App provides real-time system monitoring. With an IP55 waterproof rating and self-heating performance in low temperatures, this power box is designed to withstand various conditions. Plus, its long-lasting LiFePO4 battery ensures peace of mind with up to 10 years of reliable support.
Renogy Lycan 5000 Power Box Features

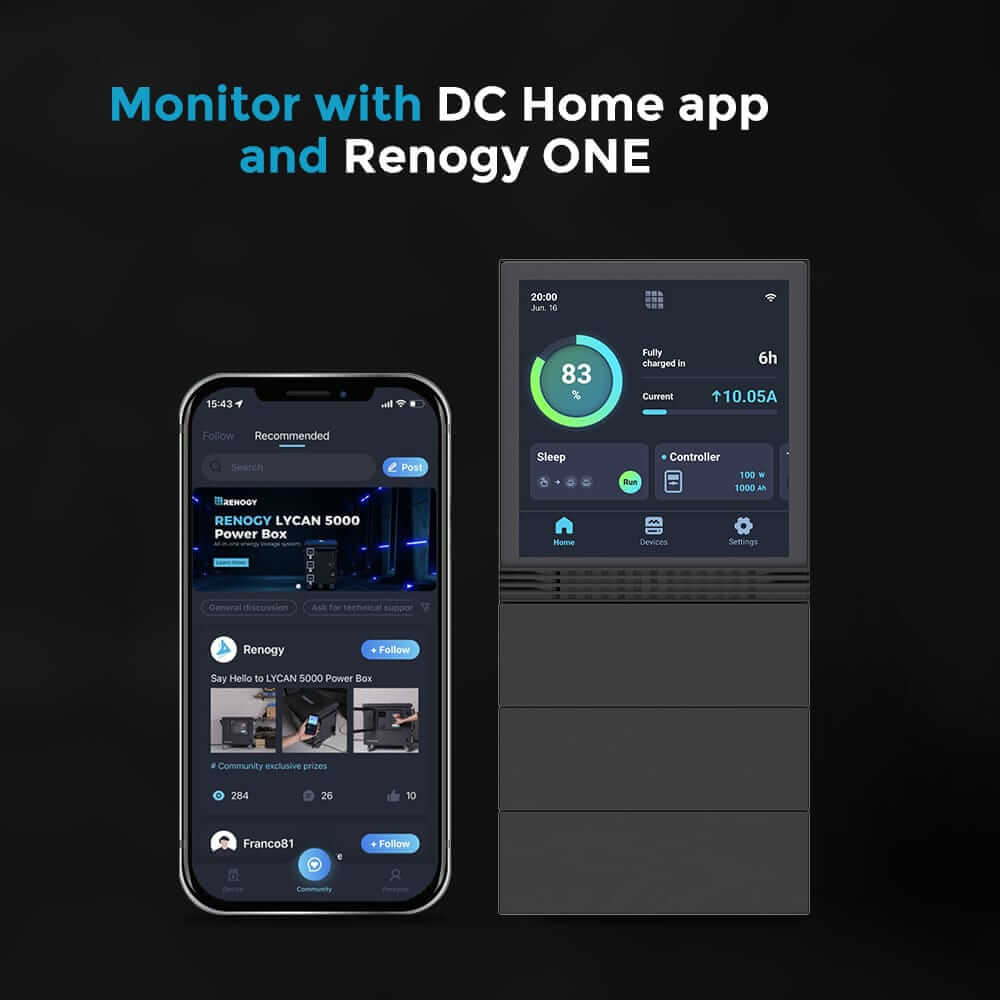

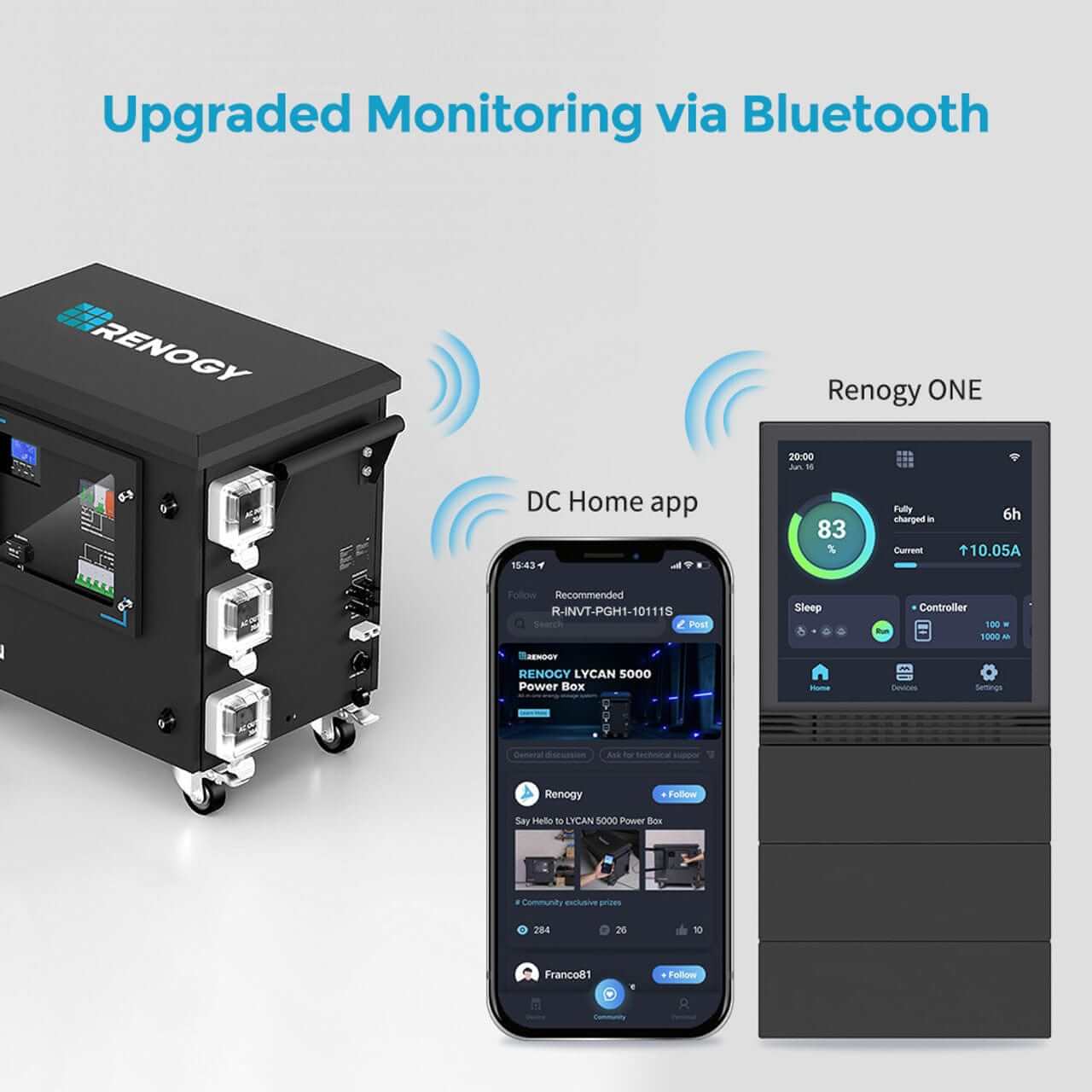

Real-Time Monitoring
The built-in Renogy BT-2 Bluetooth Module allows you to pair the LYCAN with Renogy ONE M1 to keep track of real-time information. When you are away, you can still stay updated via the DC Home app and check on the charging status at a glance.
Fast Charging
Connecting the LYCAN to both solar panels and AC outlets can shorten the charging time to 1 hour from 0% to 80%.
The LYCAN can be recharged at 6800W input power by using solar energy and AC grid power simultaneously.
Powerful Output

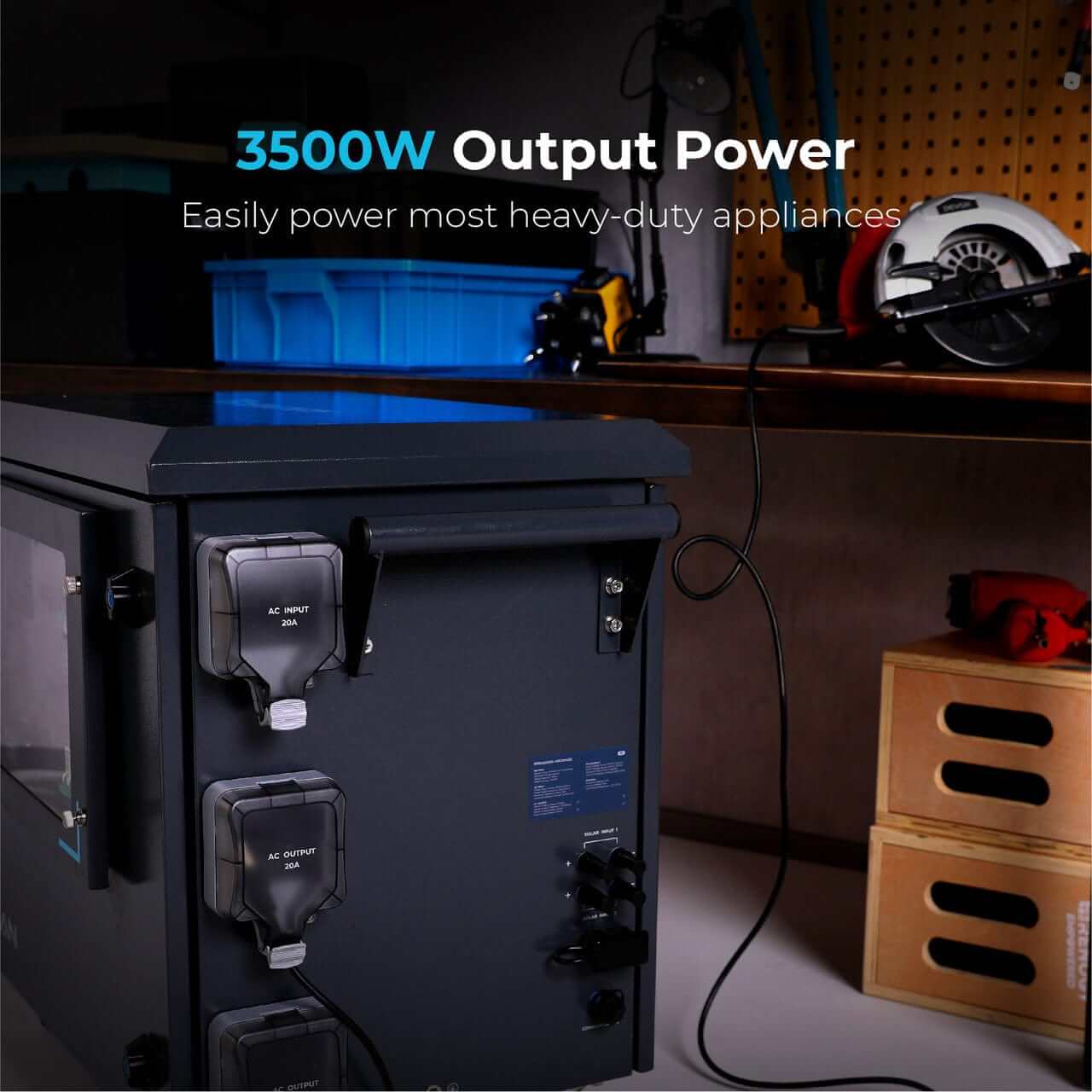

The 4.8kWh LYCAN can easily power most heavy-duty home and outdoor appliances with a continuous power output of 3500W and peak power of up to 7000W.

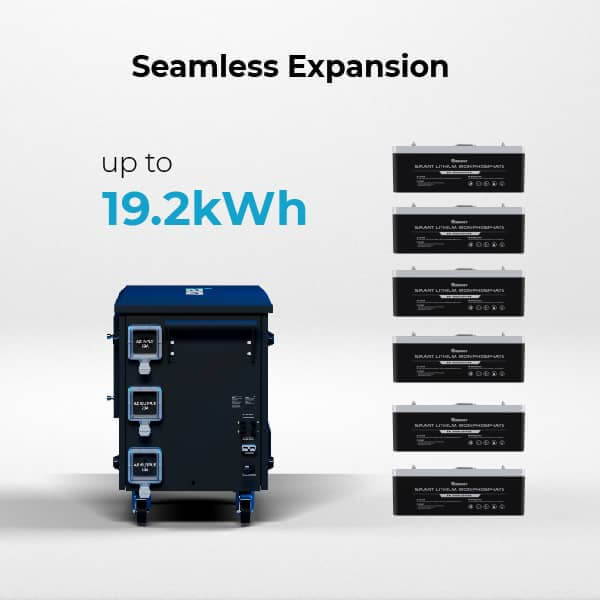

Seamless Expansion
The LYCAN can be easily expanded to up to 19.2kWh with Renogy 48V 50Ah Smart Lithium Iron Phosphate Batteries, covering any applications from short-term blackouts to power independence.

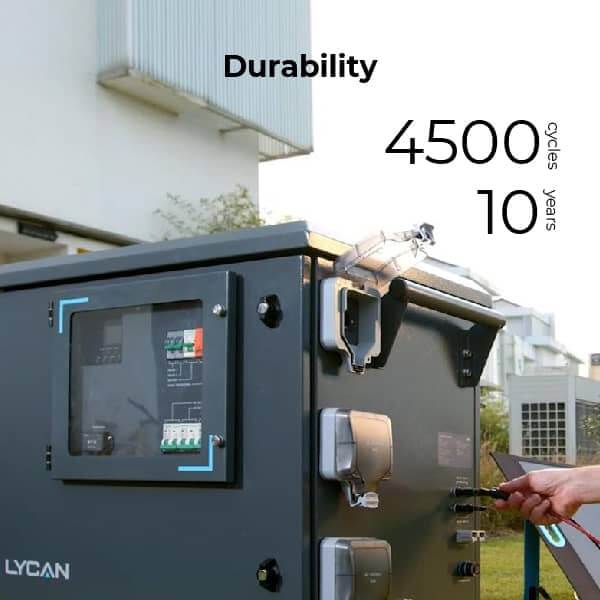

Durability
The LYCAN is equipped with state-of-the-art Renogy LiFePO4 batteries with a lifespan of 4500 cycles. Used once a day, these batteries will last up to 10 years without dropping below 80% capacity.

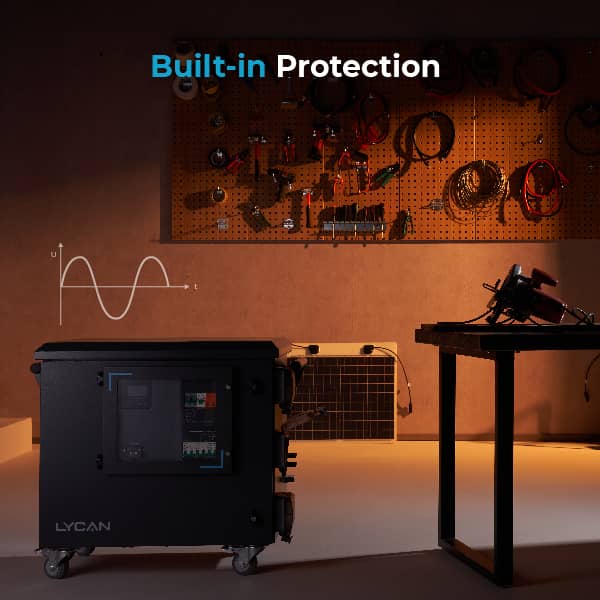

Built-in Protection
The LYCAN is equipped with circuit breakers and surge protection devices. Preventing the influence of overvoltage, overload, and lightning strikes on the equipment to ensure safety.
Advanced pure sine wave technology provides quality AC equivalent to grid power which will protect the lifespan of your electronics and appliances.
Renogy Lycan 5000 Specifications
GENERAL:
Model: RPB4835OA-48LFPA12S

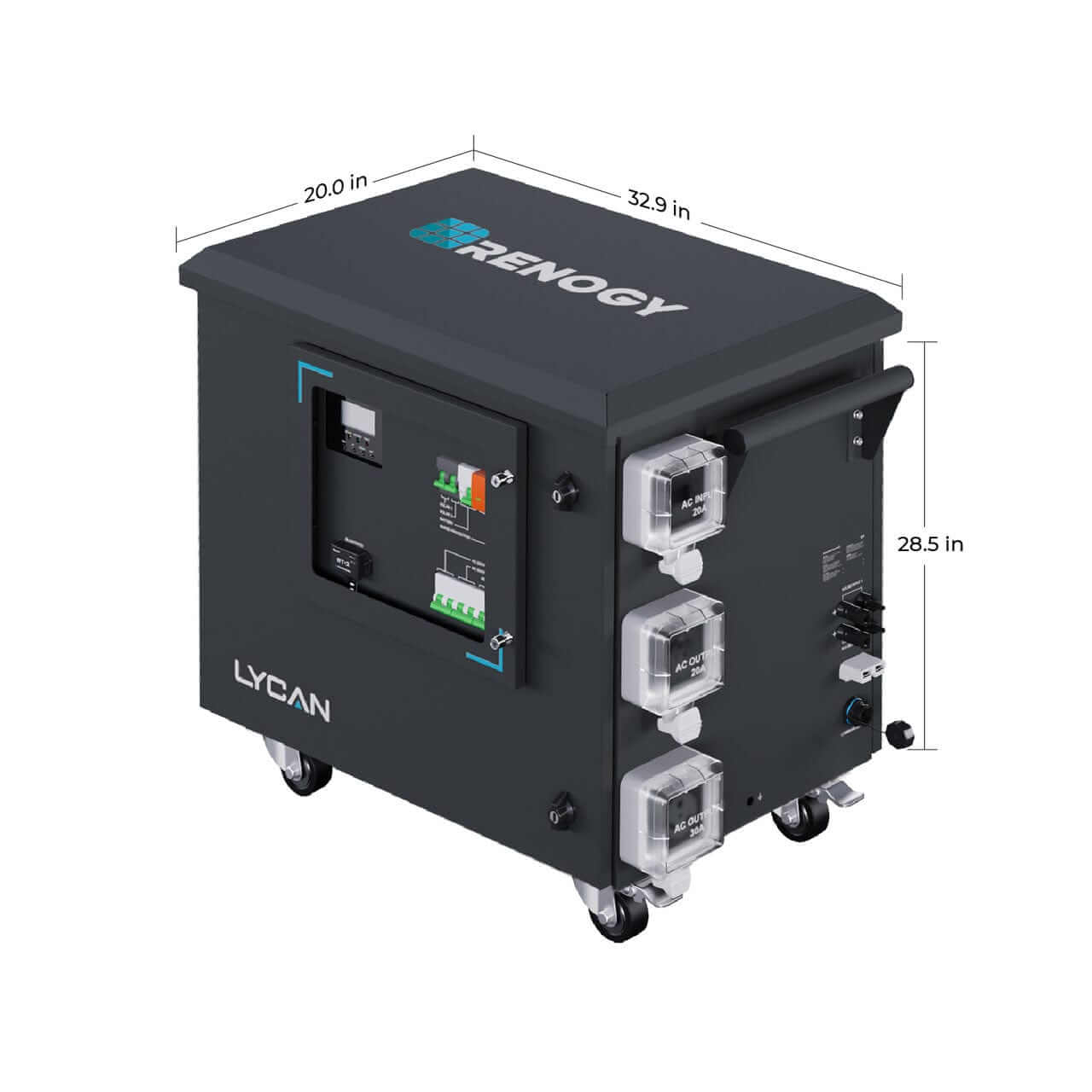

Dimension: 32.9 x 20.0 x 28.5 inch / 835 x 508 x 724 mm
Weight: 264.6 lbs. / 120 kg
Protection Rating: IP55
Cooling Method: Fan
Operating Temperature Range: 14°F~122°F / -10°C~50°C
Operating Relative Humidity Range: 5%~95%
Expansion Connector: Anderson 120A Connector, RJ45 Female Connector
Expansion Capability: 19.2KWh
Bluetooth Module: DC Home APP. Communication Range 82 ft. / 25 m
Self Consumption: 25W (Power Saving Mode)
Enclosure Security: Keyed Cam Lock
Installation Environment: Indoor/Outdoor
BATTERY:
Battery Type: Lithium Iron Phosphate
Nominal Battery Voltage: 48VDC
Rated Battery Capacity: 100Ah
Rated Battery Energy: 4.8KWh
Cycle Life: 4500 Cycles (80% DOD, 80% EOL, 0.2C, 25°C)
POWER OUTPUT
Rated AC Output Voltage: 120VAC
Rated AC Output Frequency: 50Hz/60Hz (Adjustable)
Rated Output Power: 3500W
Peak AC Output Power: 7000W
POWER INPUT
Rated AC Input Voltage: 110VAC/120VAC
Rated AC Input Frequency: 50Hz/60Hz
Maximum AC Bypass Current: 20A
Maximum Solar Input Power: 4400W
Maximum Battery Charge Current (Solar): 80A
Maximum Battery Charge Current (Total): 100A
WARRANTY
Lycan: 3 Year Material and Workmanship Warranty
ACCESSORIES
Handle: 1
Handle Installation Screws (4): 4 X M8 x 1.25 x 20 mm
IEC C19 to NEMA 5-20P Power Cable: 10ft., 12AWG
Keys: 2
CERTIFICATIONS
48V 50Ah Smart Lithium Iron Phosphate Battery: UN38.3, MSDS. FCC, PSE, CE
48V 3500W Solar Inverter Charger: FCC, RoHS
